Accessory Power Receptacle 110V AC X2 (K16)

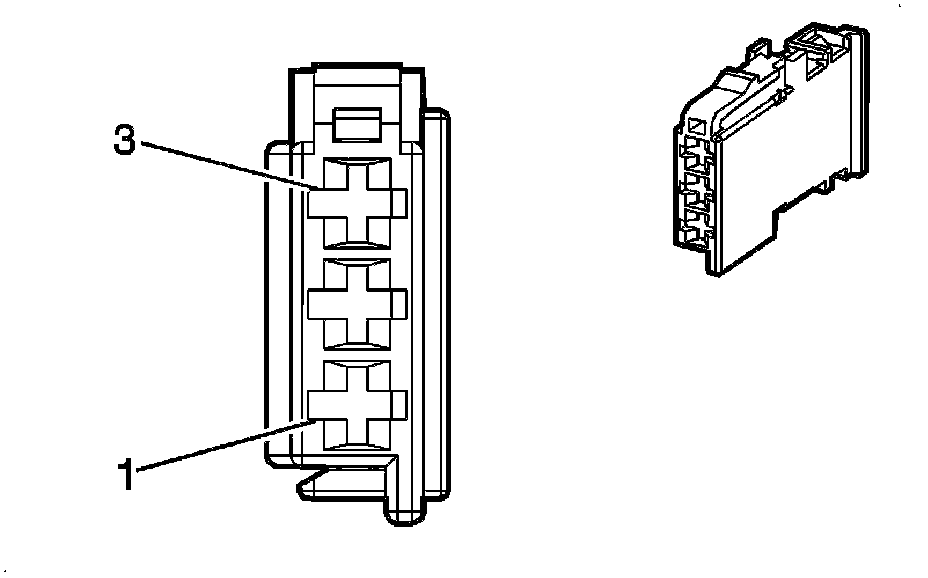

Component Connector End Views

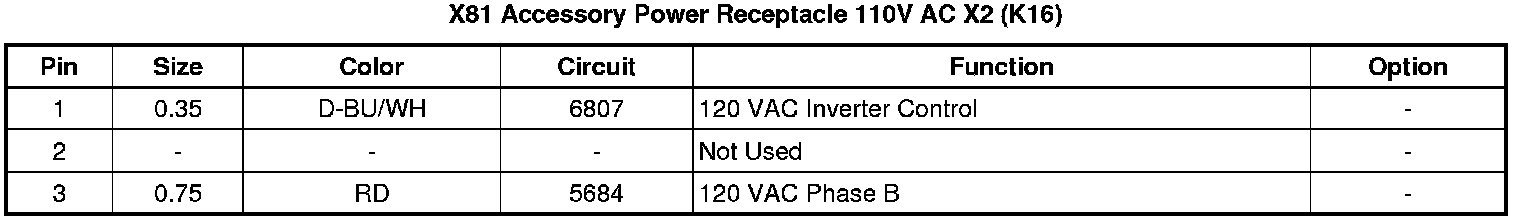

X81 Accessory Power Receptacle 110V AC X2 (K16)
