HVAC Module Components

Instrument Panel/Center Console Component Views

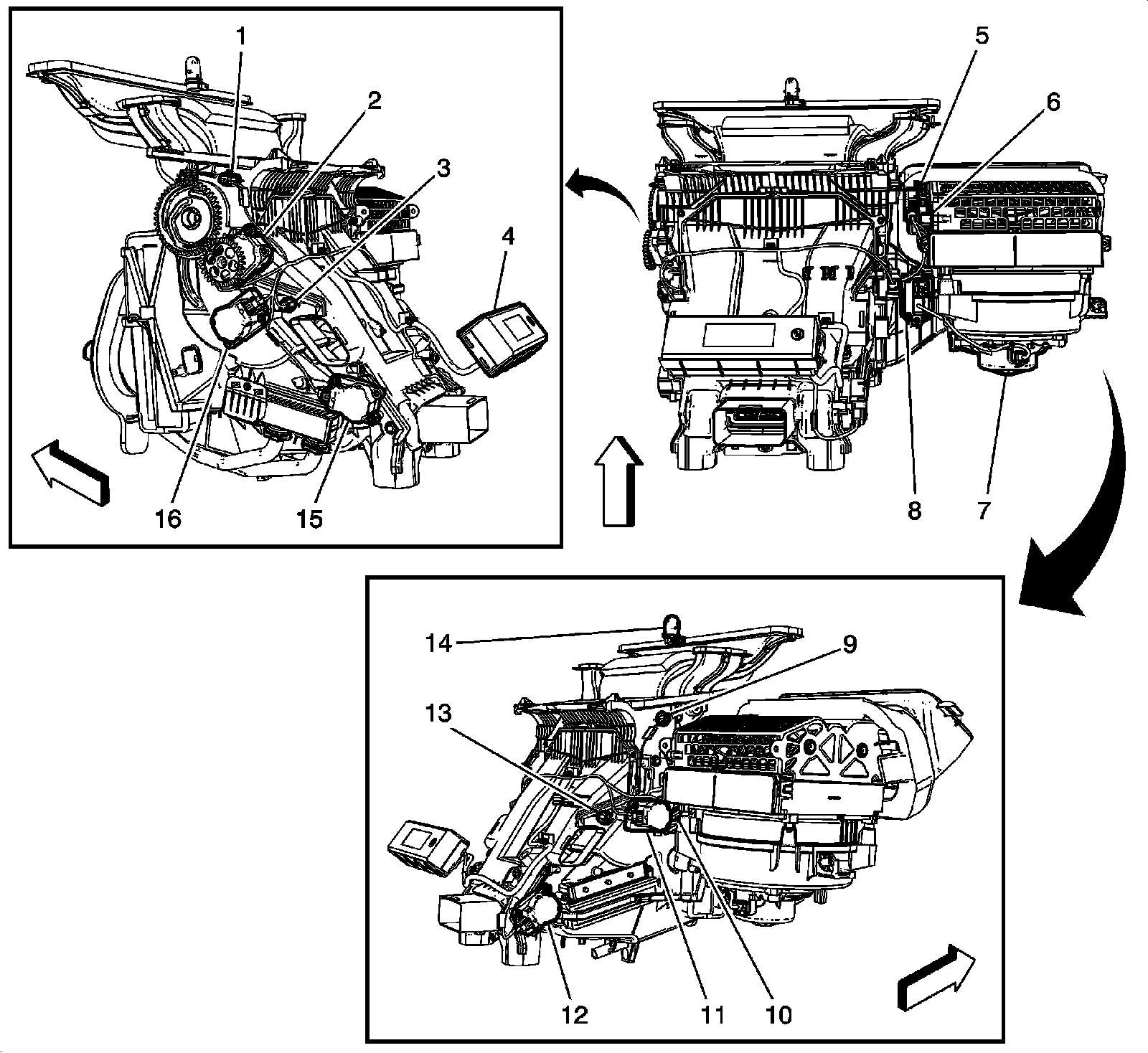

HVAC Module Components





1 - B7H Air Temperature Sensor - Upper Left

2 - M37 Mode Door Actuator

3 - B7D Air Temperature Sensor - Lower Left

4 - K33 HVAC Control Module

5 - M4 Air Inlet Door Actuator

6 - M46 Air Recirculation Door Actuator

7 - M8 Blower Motor

8 - K8 Blower Motor Control Module

9 - B7J Air Temperature Sensor - Upper Right

10 - B39 Evaporator Temperature Sensor

11 - M6R Air Temperature Actuator - Right

12 - M6B Air Temperature Actuator - Auxiliary

13 - B7E Air Temperature Sensor - Lower Right

14 - B10B Ambient Light/Sunload Sensor

15 - M37B Mode Door Actuator - Auxiliary

16 - M6L Air Temperature Actuator - Left
