Engine Compartment Components - Top View

Front of Vehicle/Engine Compartment Component Views

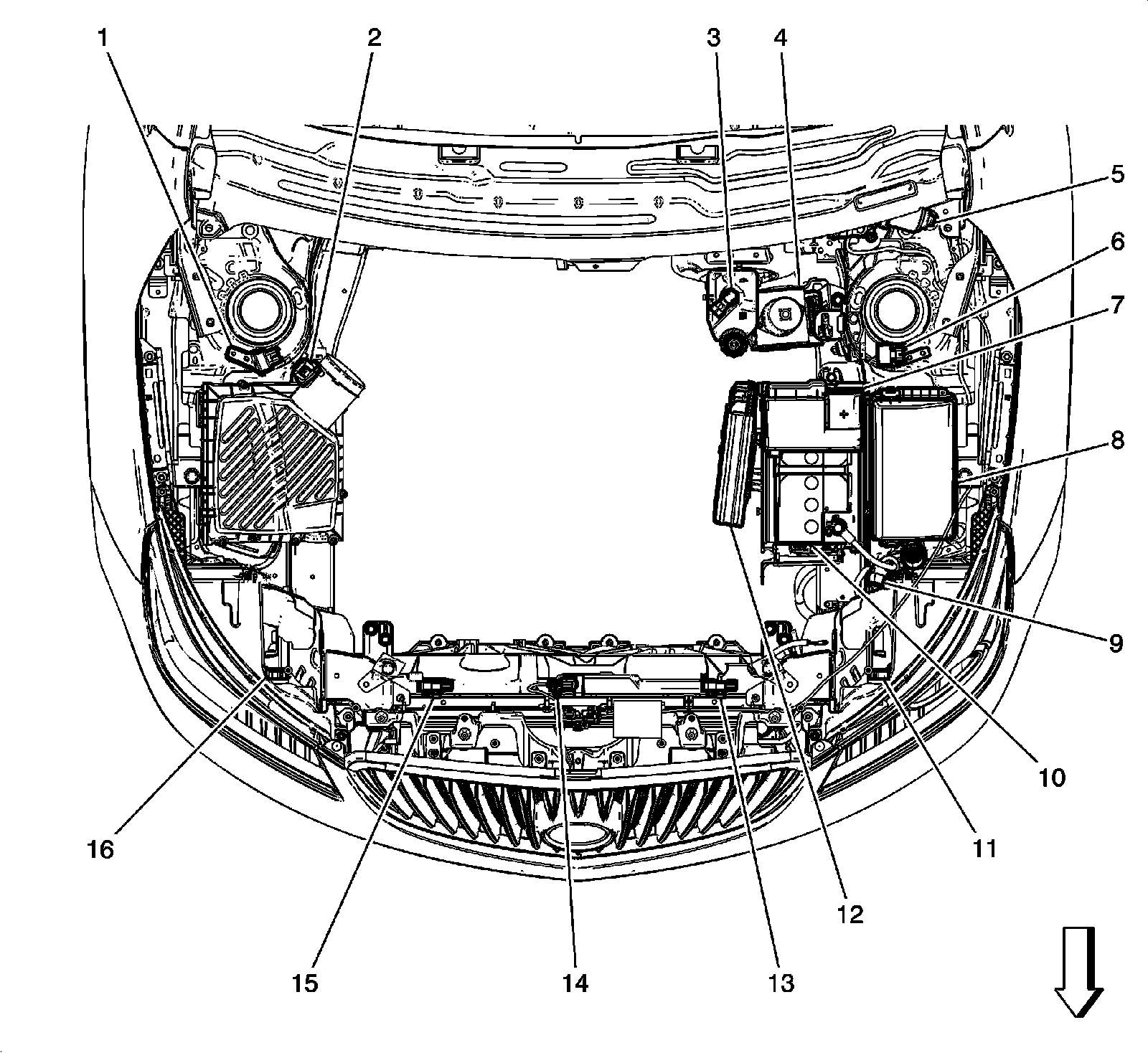

Engine Compartment Components - Top View





1 - B162RF Vertical Body Acceleration Sensor - Right Front (F45)

2 - B75B Mass Air Flow/Intake Air Temperature Sensor (LUK) or B75C Multifunction Intake Air Sensor (LFX)

3 - B20 Brake Fluid Level Switch

4 - K17 Electronic Brake Control Module

5 - M75 Windshield Wiper Motor

6 - B162LF Vertical Body Acceleration Sensor - Left Front (F45)

7 - X50D Fuse Block- Battery

8 - X50A Fuse Block- Underhood

9 - B18 Battery Current Sensor

10 - C1 Battery

11 - M29L Headlamp Leveling Actuator - Left (T4F)

12 - K20 Engine Control Module

13 - B59L Front Impact Sensor - Left

14 - B55 Hood Ajar Switch

15 - B59R Front Impact Sensor - Right

16 - M29R Headlamp Leveling Actuator - Right (T4F)
