Power Distribution Schematics
Power Distribution Schematics
Battery Fuse Block

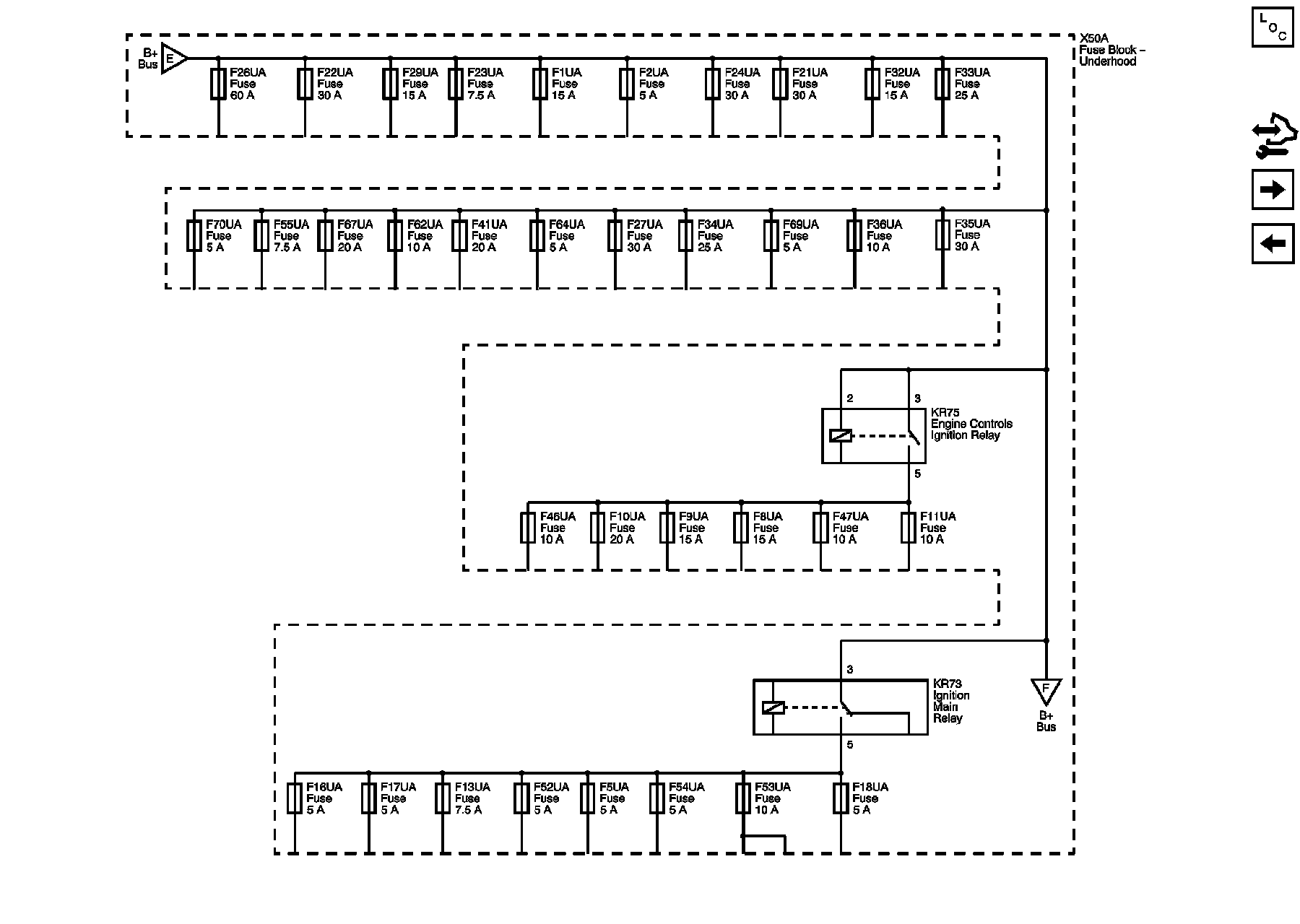

B+ Bus (1 of 2)

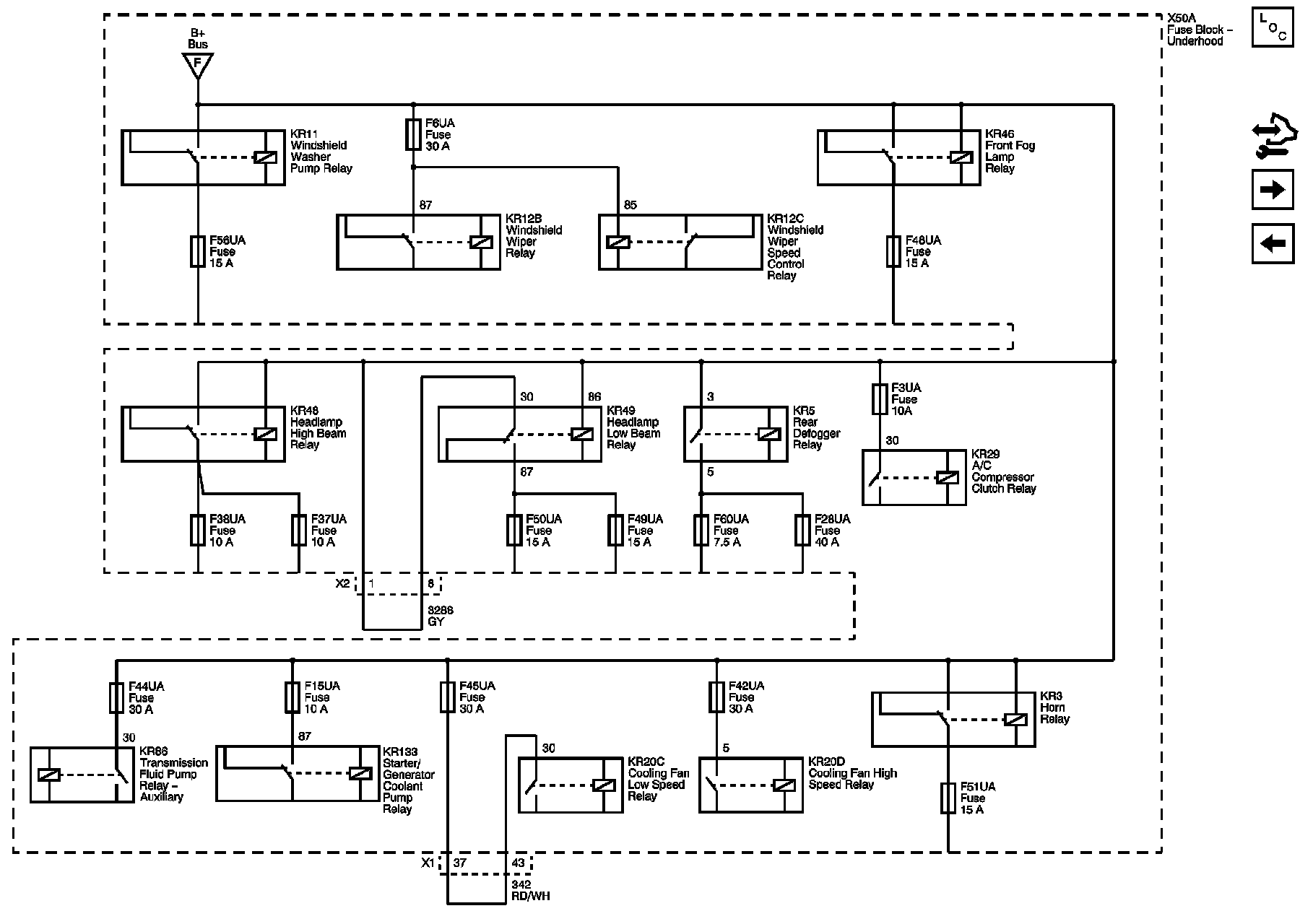

B+ Bus (2 of 2)

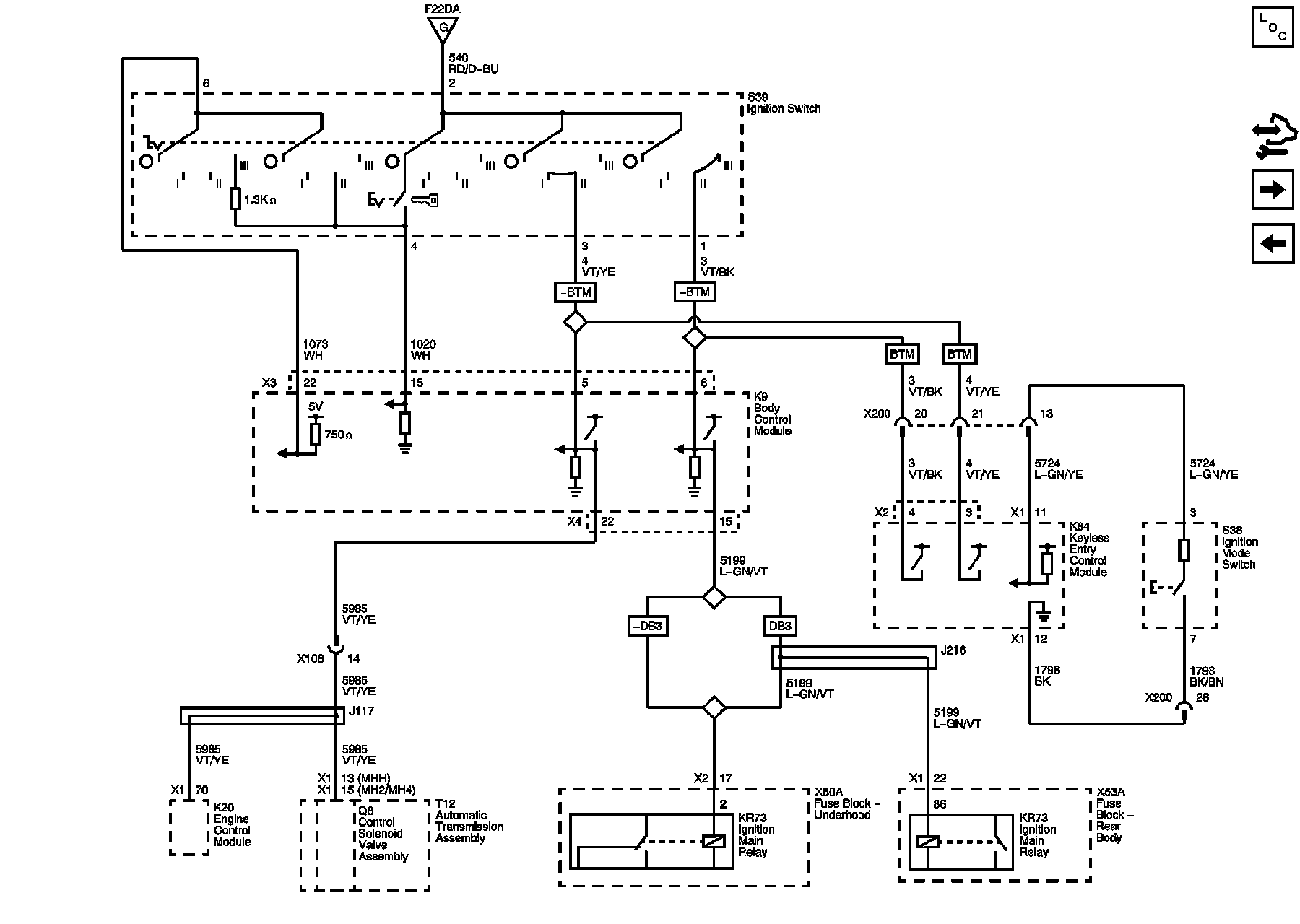

Ignition Switch
F1UA, F2UA, F22UA, F23UA, F26UA, F29UA, and F70UA Fuses

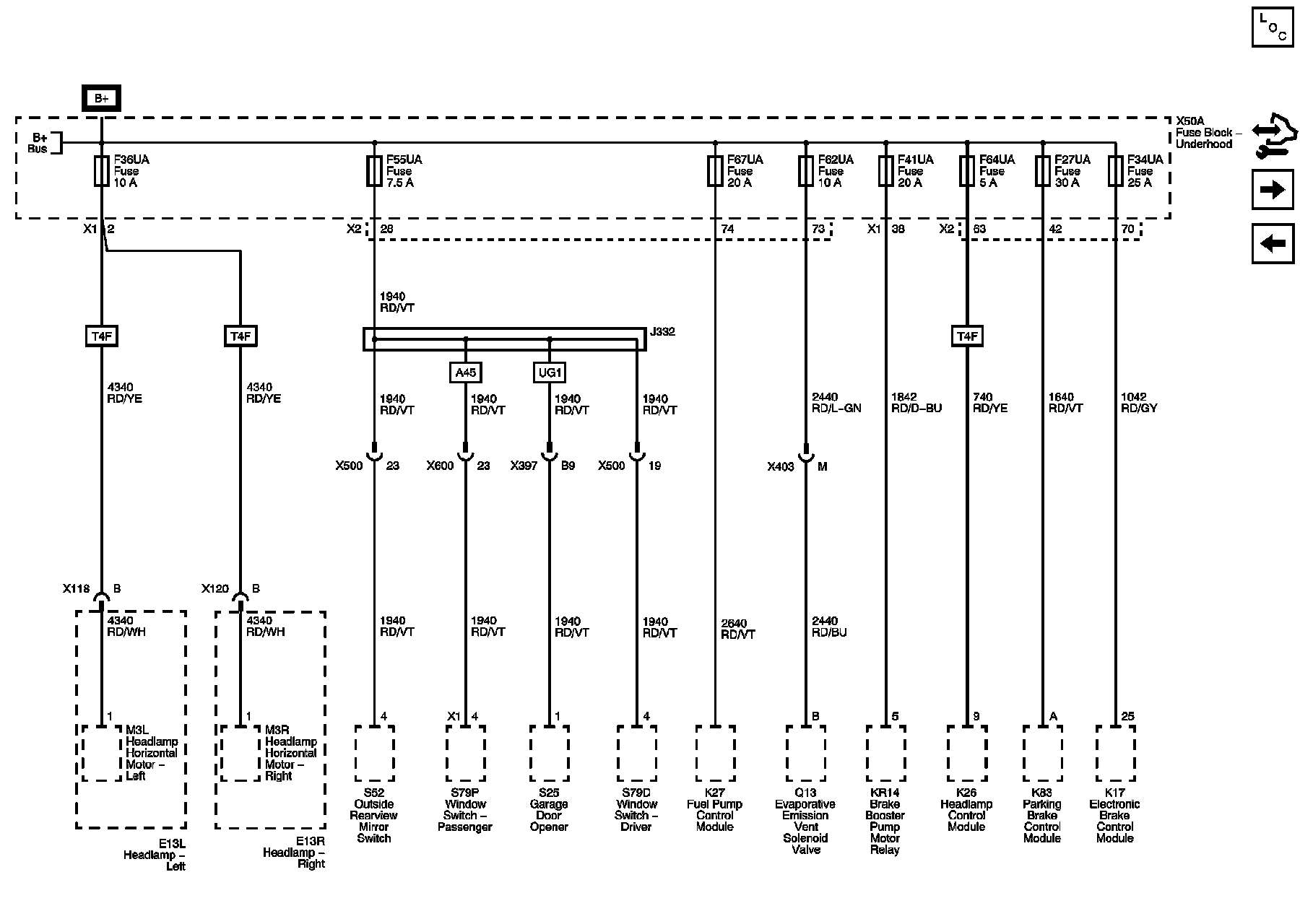

F27UA, F34UA, F36UA, F41UA, F55UA, F62UA, F64UA, and F67UA Fuses

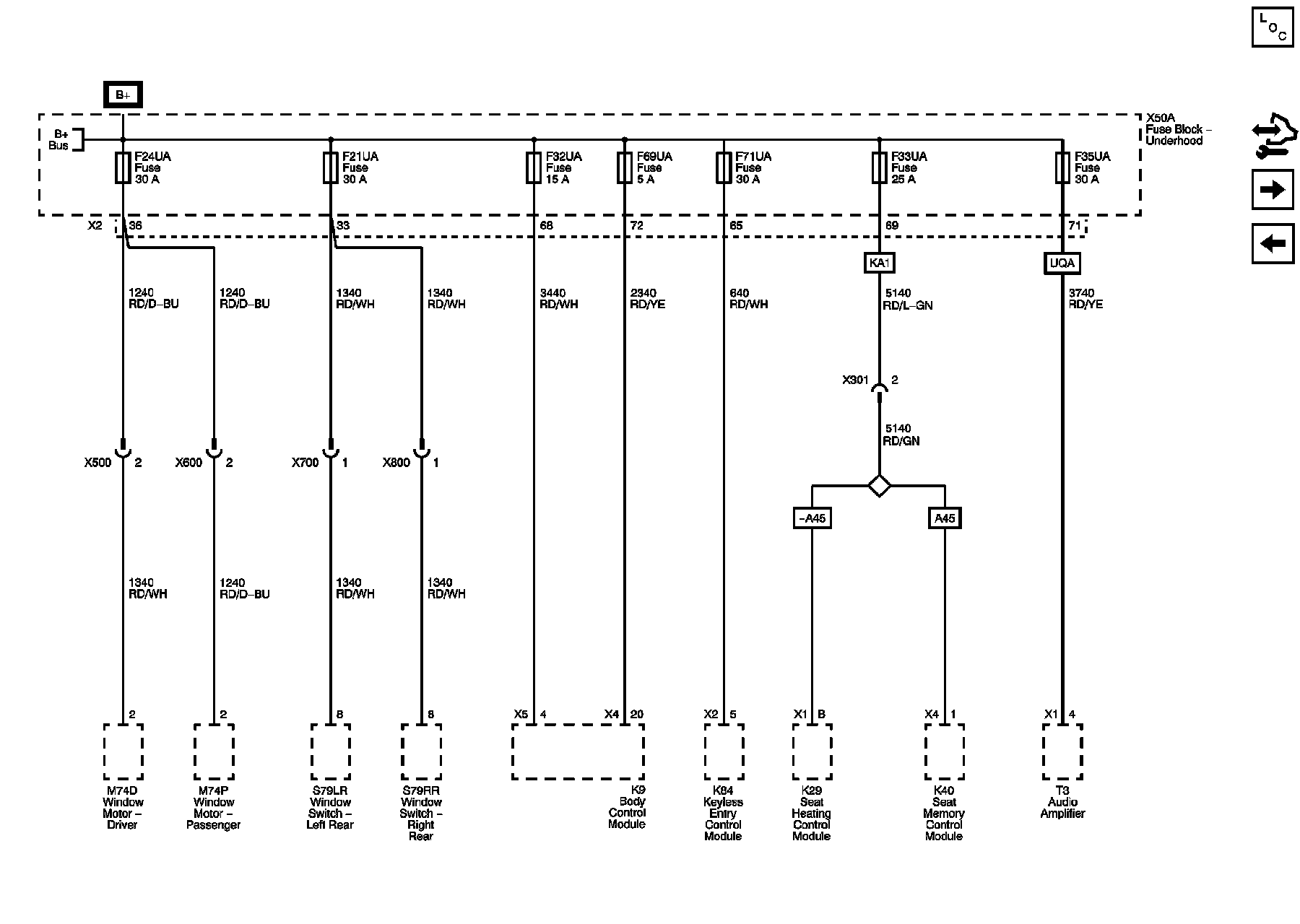

F21UA, F24UA, F32UA, F33UA, F35UA, F69UA and F71UA Fuses

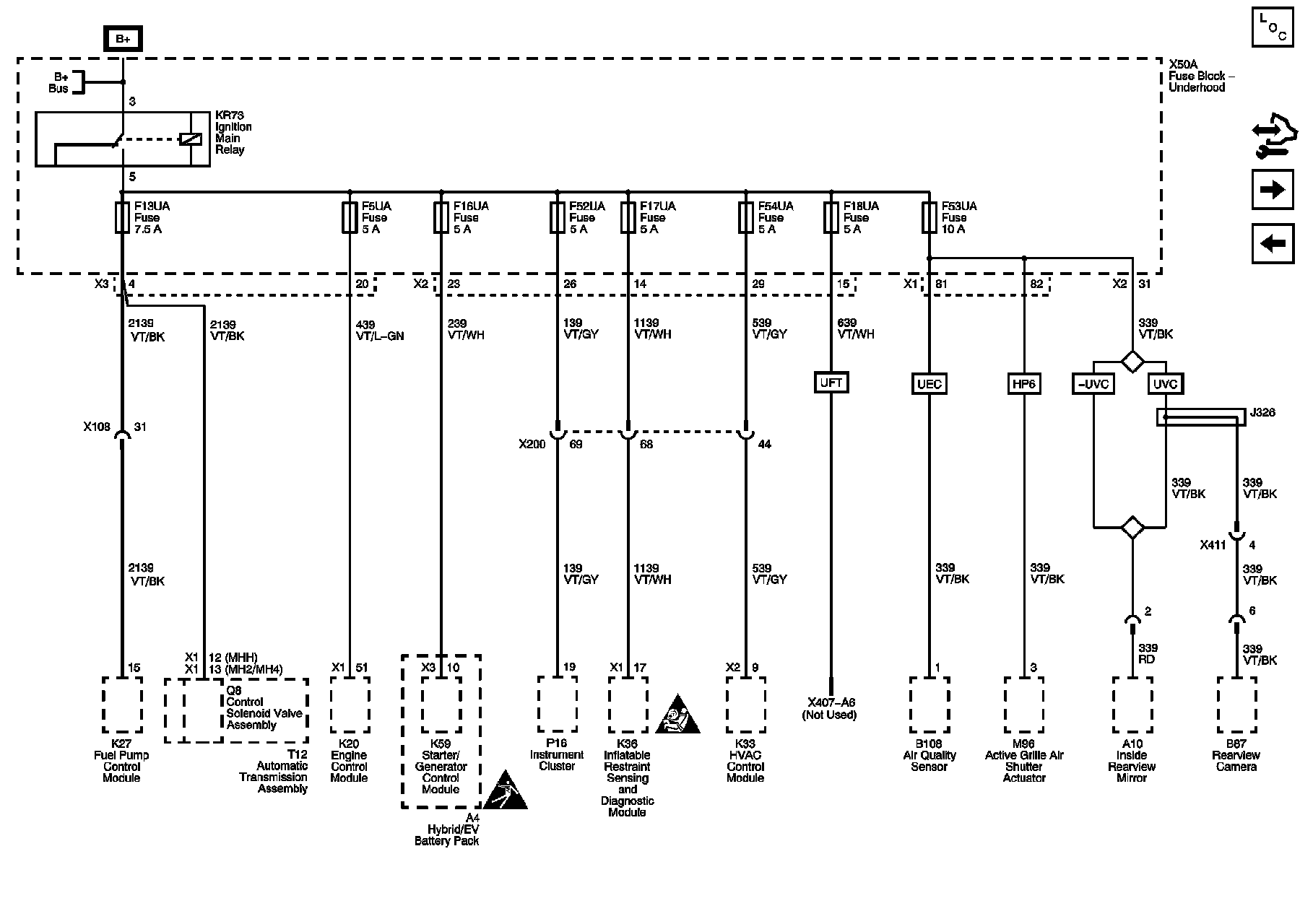

F5UA, F13UA, F16UA, F17UA, F18UA, F52UA, F53UA, and F54UA Fuses

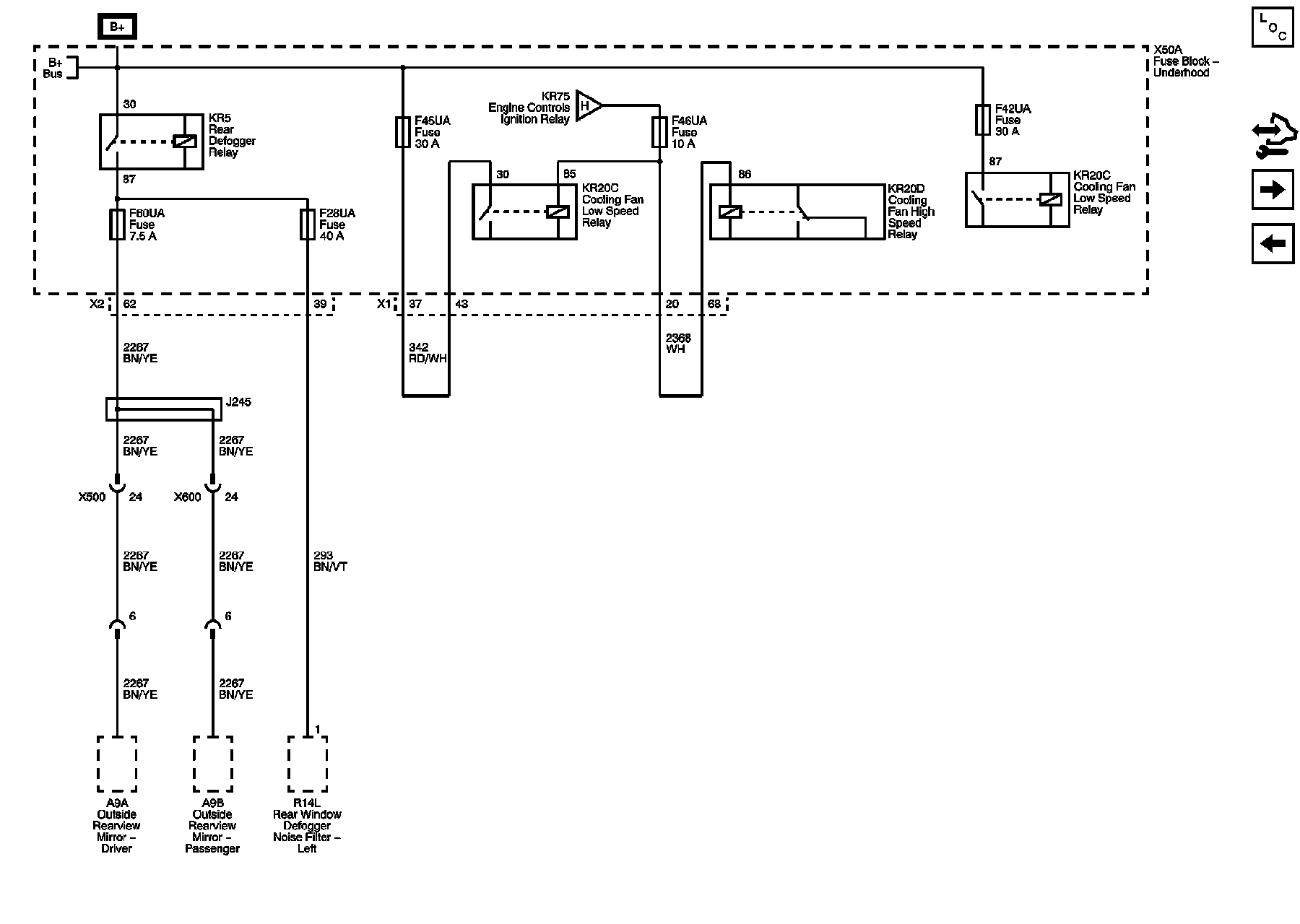

F28UA, F42UA, F45UA, F46UA, and F60UA Fuses

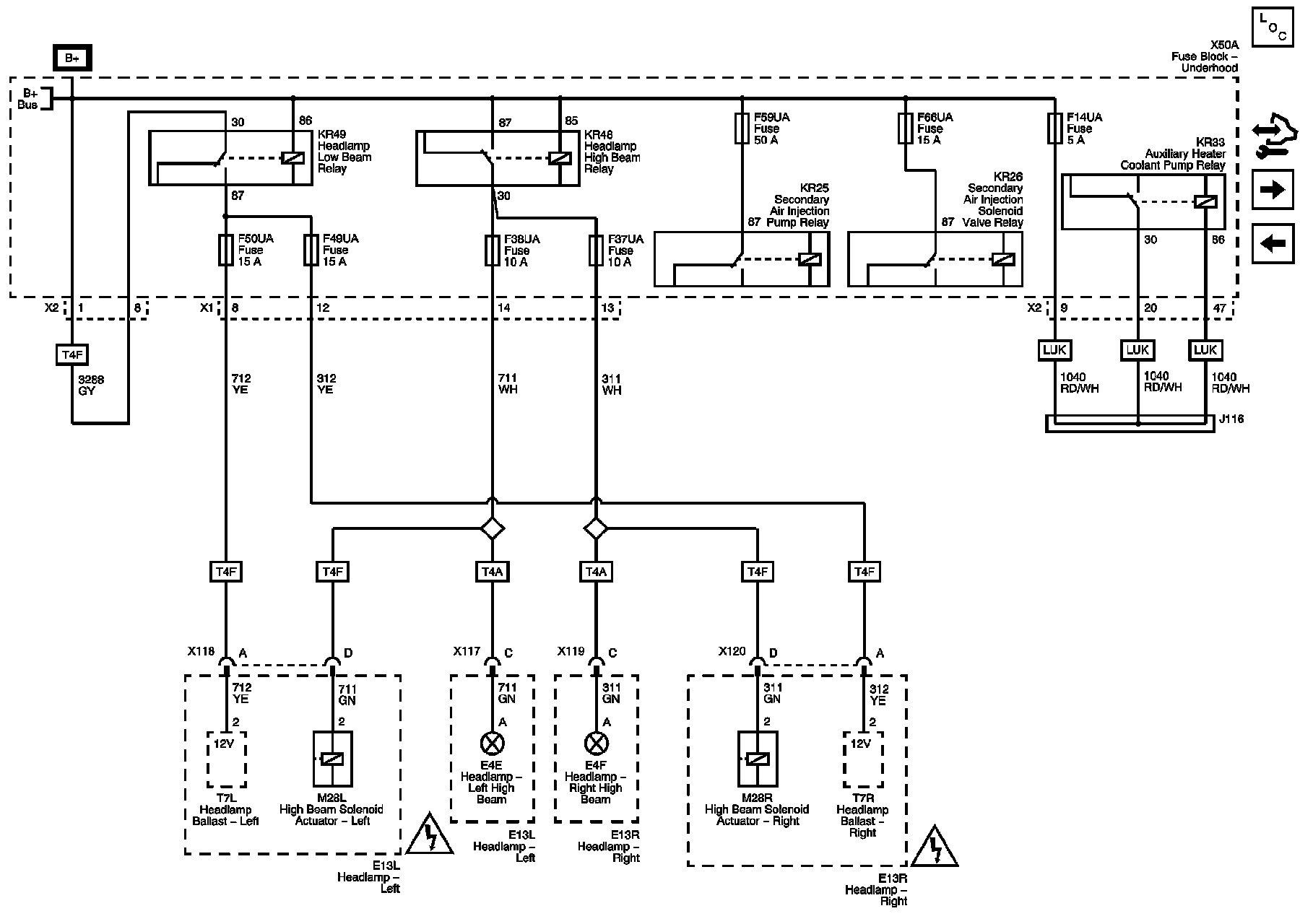

F14UA, F37UA, F38UA, F49UA, F50UA, F59UA and F66UA Fuses

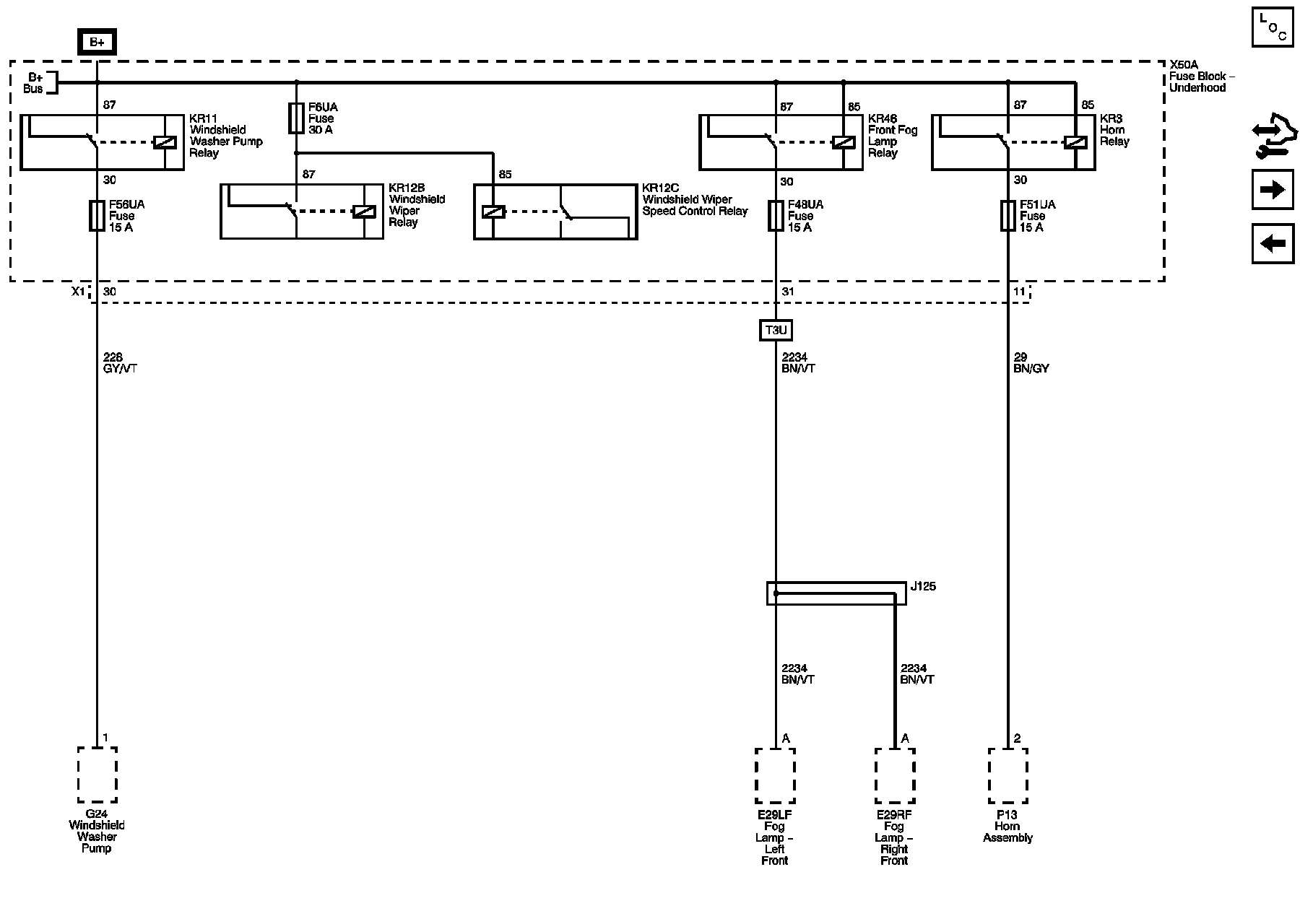

F6UA, F48UA, F51UA, and F56UA Fuses

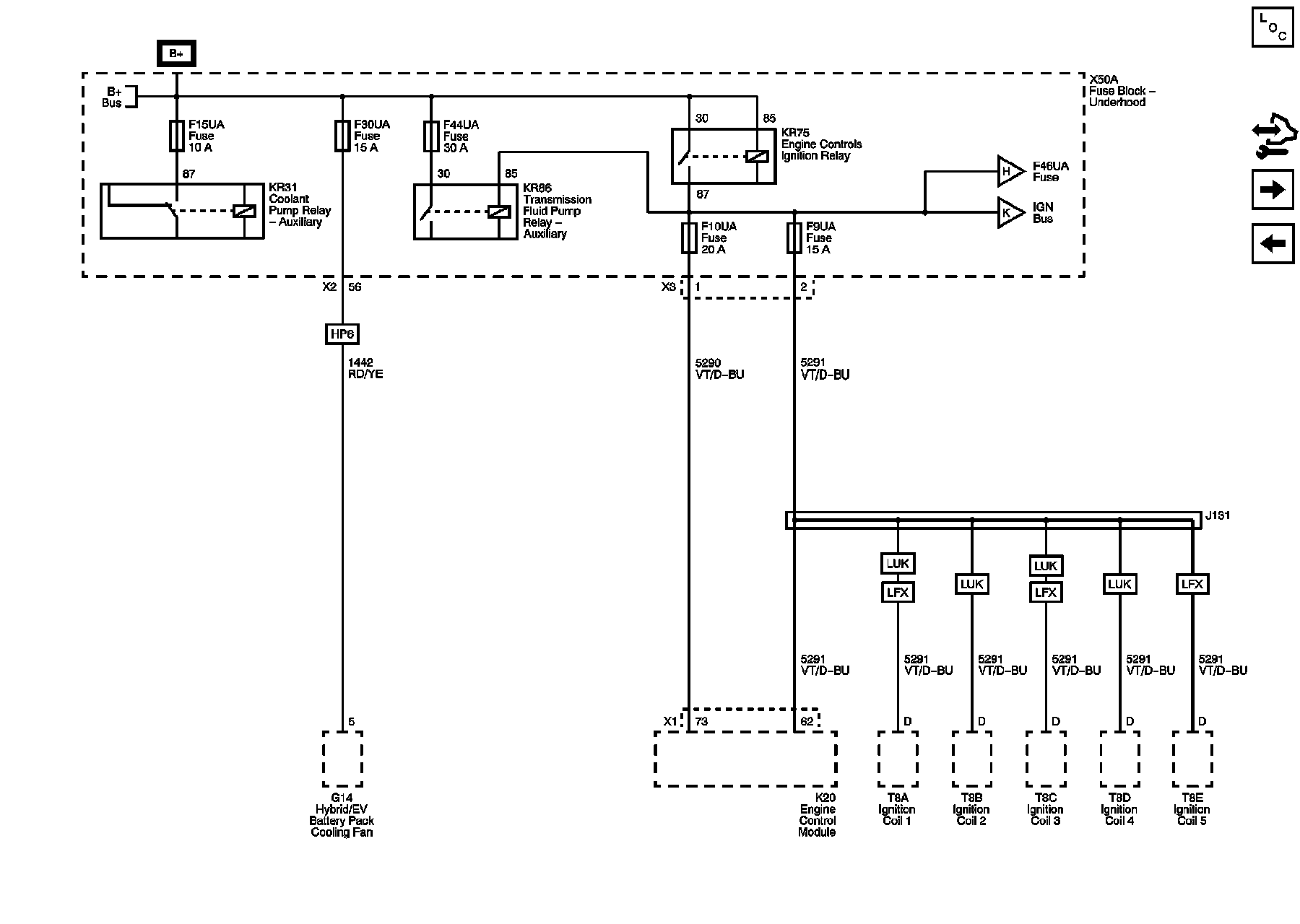

F9UA, F10UA, F15UA, F30UA, and F44UA Fuses

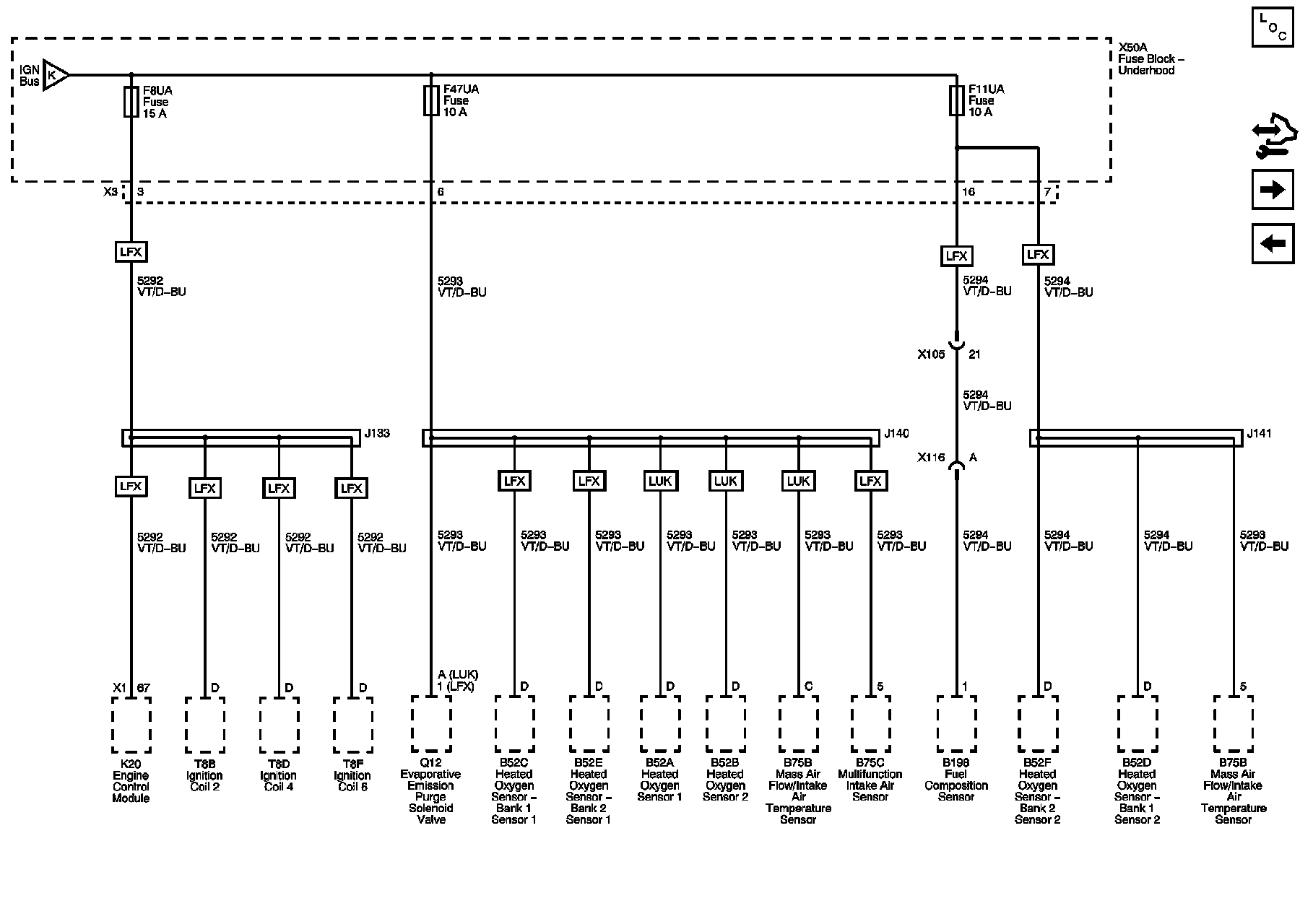

F8UA, F11UA and F47UA Fuses

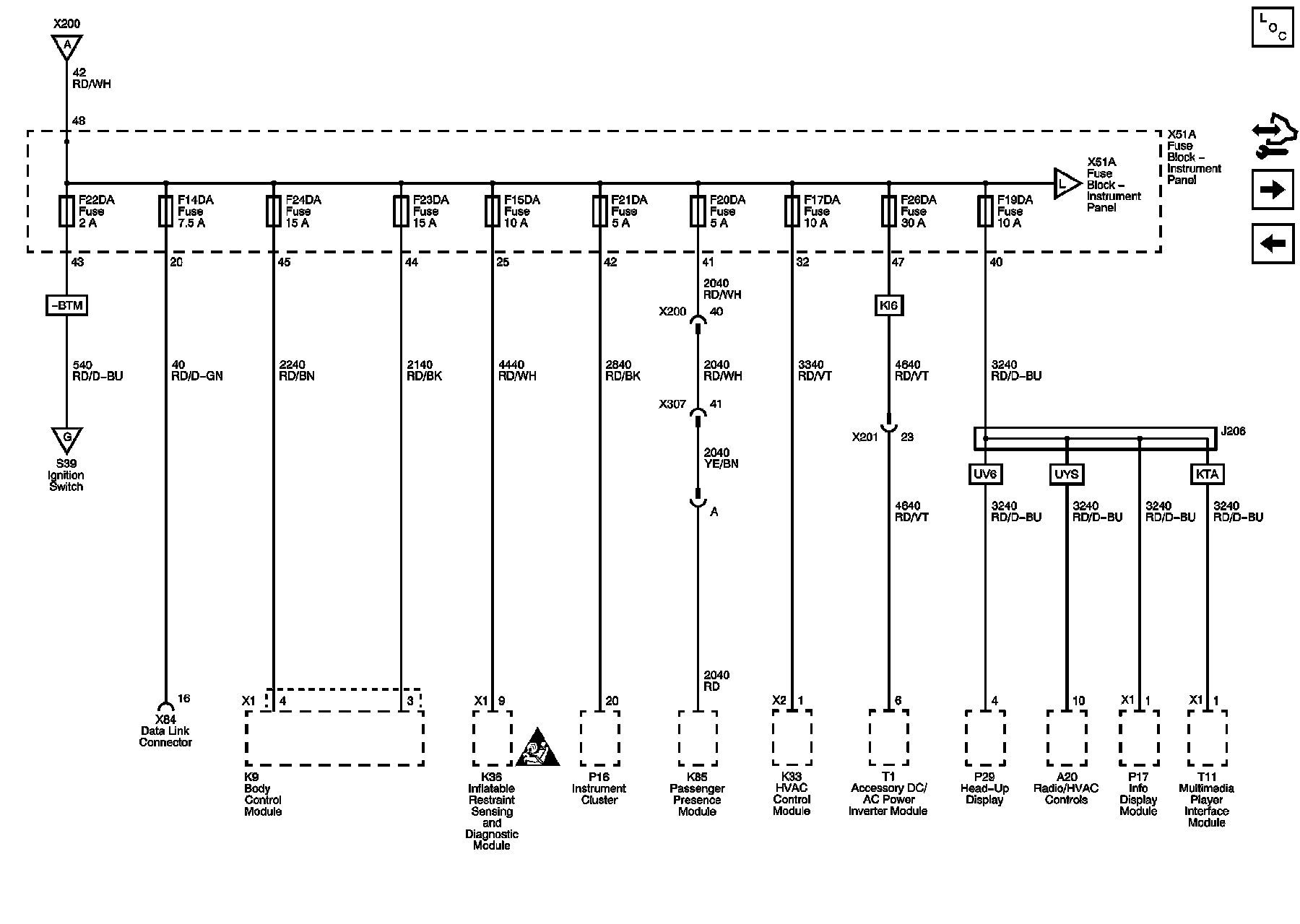

F14DA, F15DA, F17DA, F19DA, F20DA, F21DA, F22DA, F23DA, F24DA, and F26DA Fuses

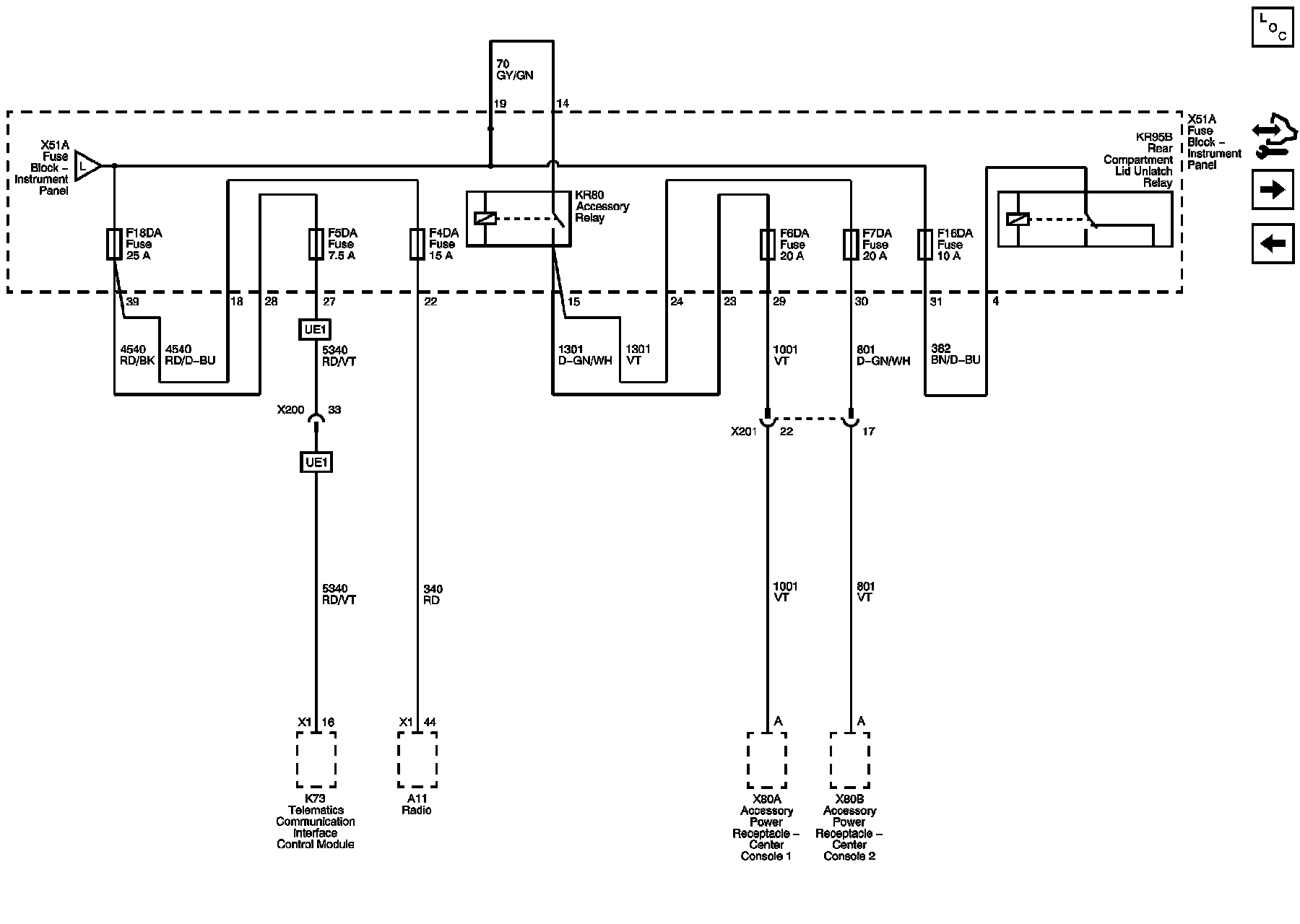

F4DA, F5DA, F6DA, F7DA, F16DA, and F18DA Fuses

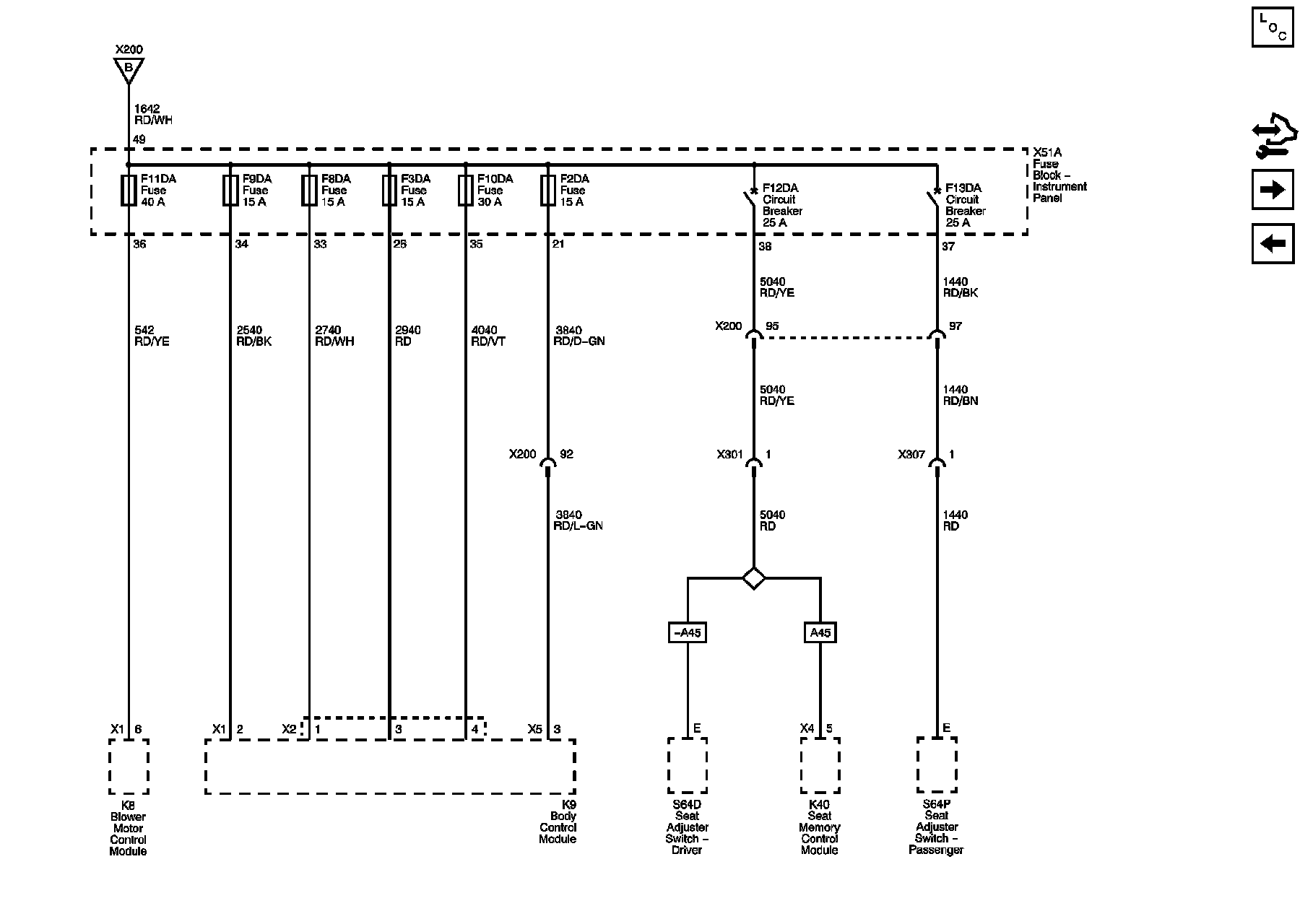

F2DA, F3DA, F8DA, F9DA, F10DA, F11DA Fuses and F12DA, F13DA Circuit Breakers

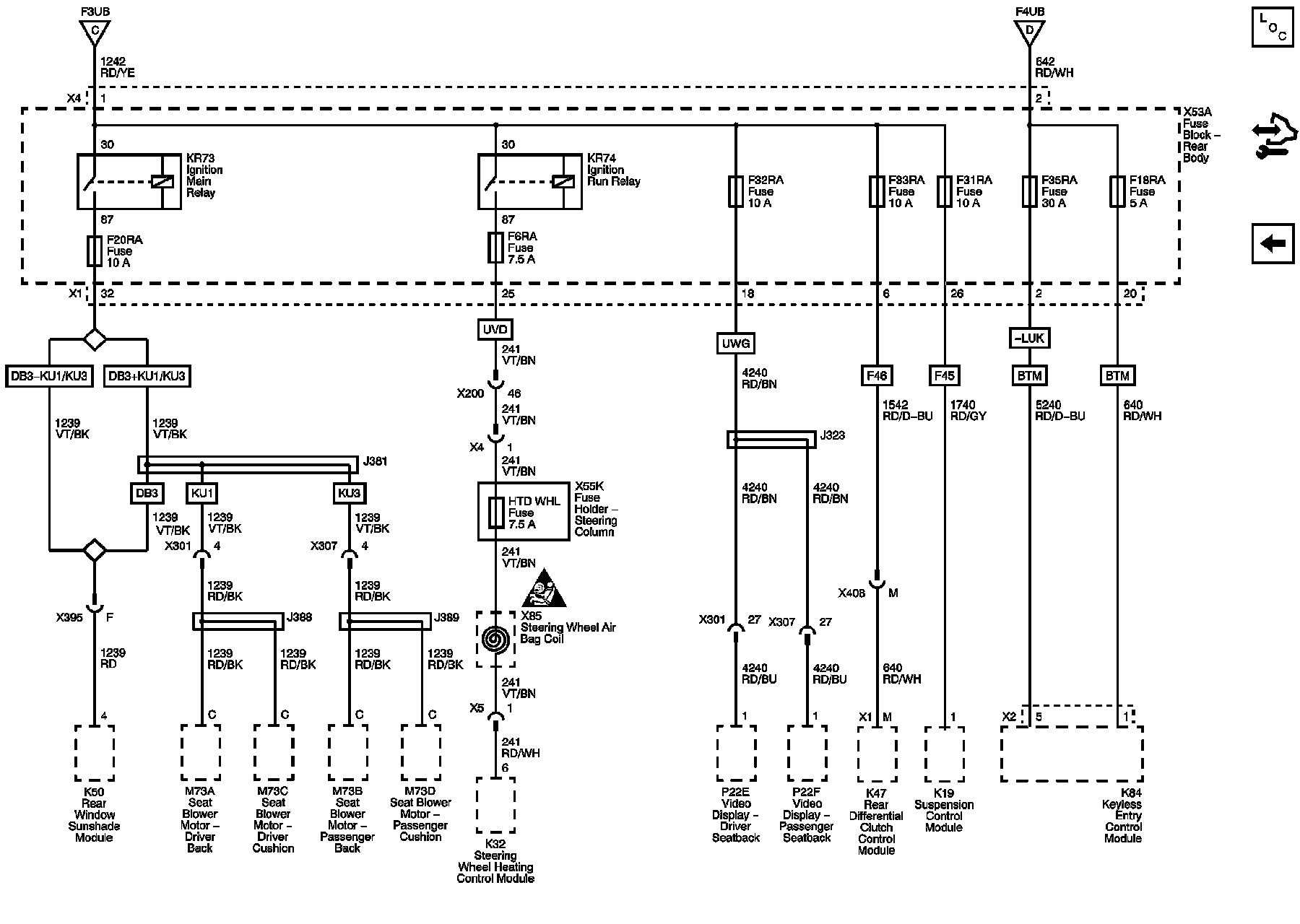

F6RA, F18RA, F20RA, F31RA, F32RA, F33RA and F35RA Fuses
