G203




Ground Distribution Schematics

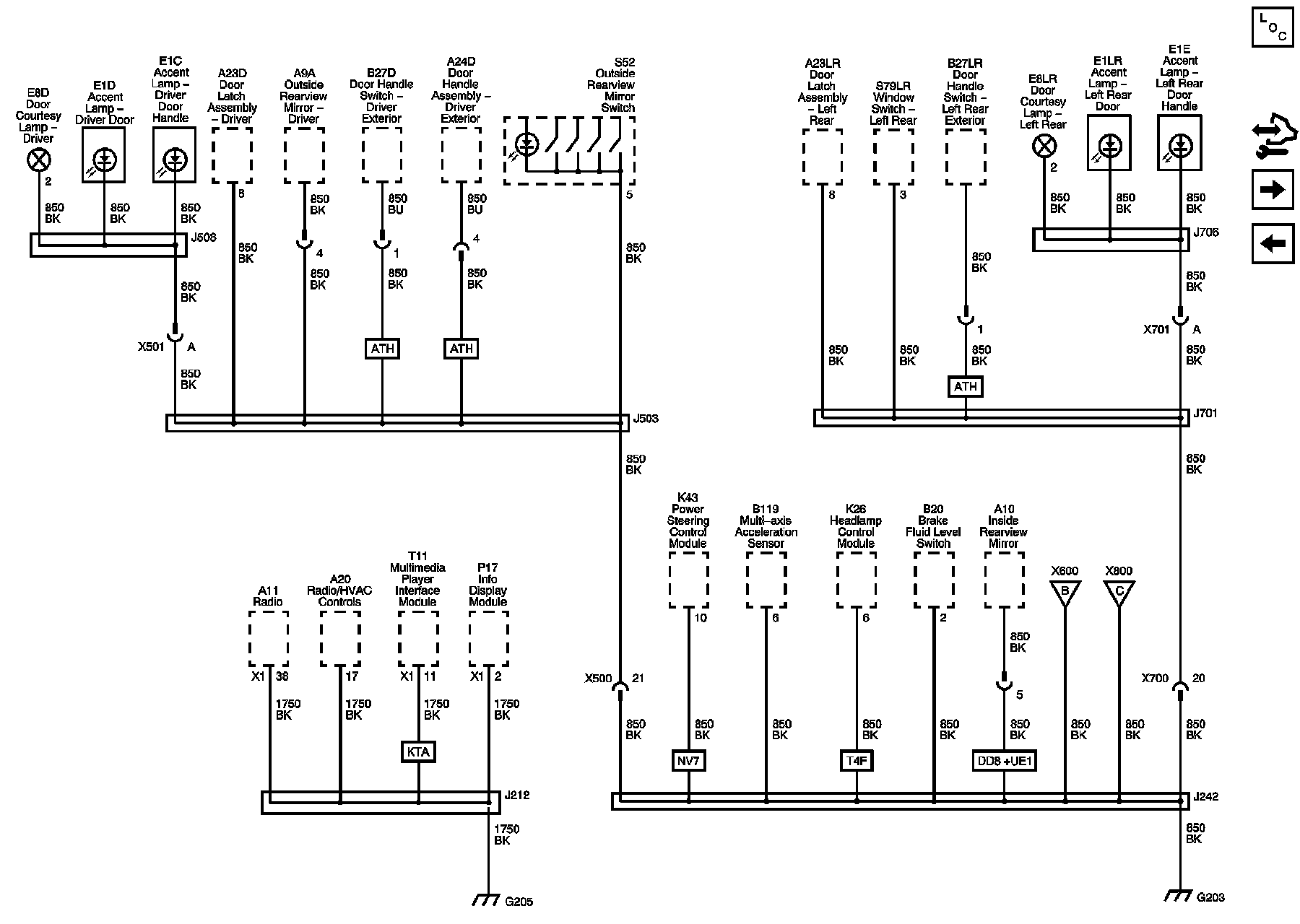

G203 (1 of 2) and G205









Ground Distribution Schematics

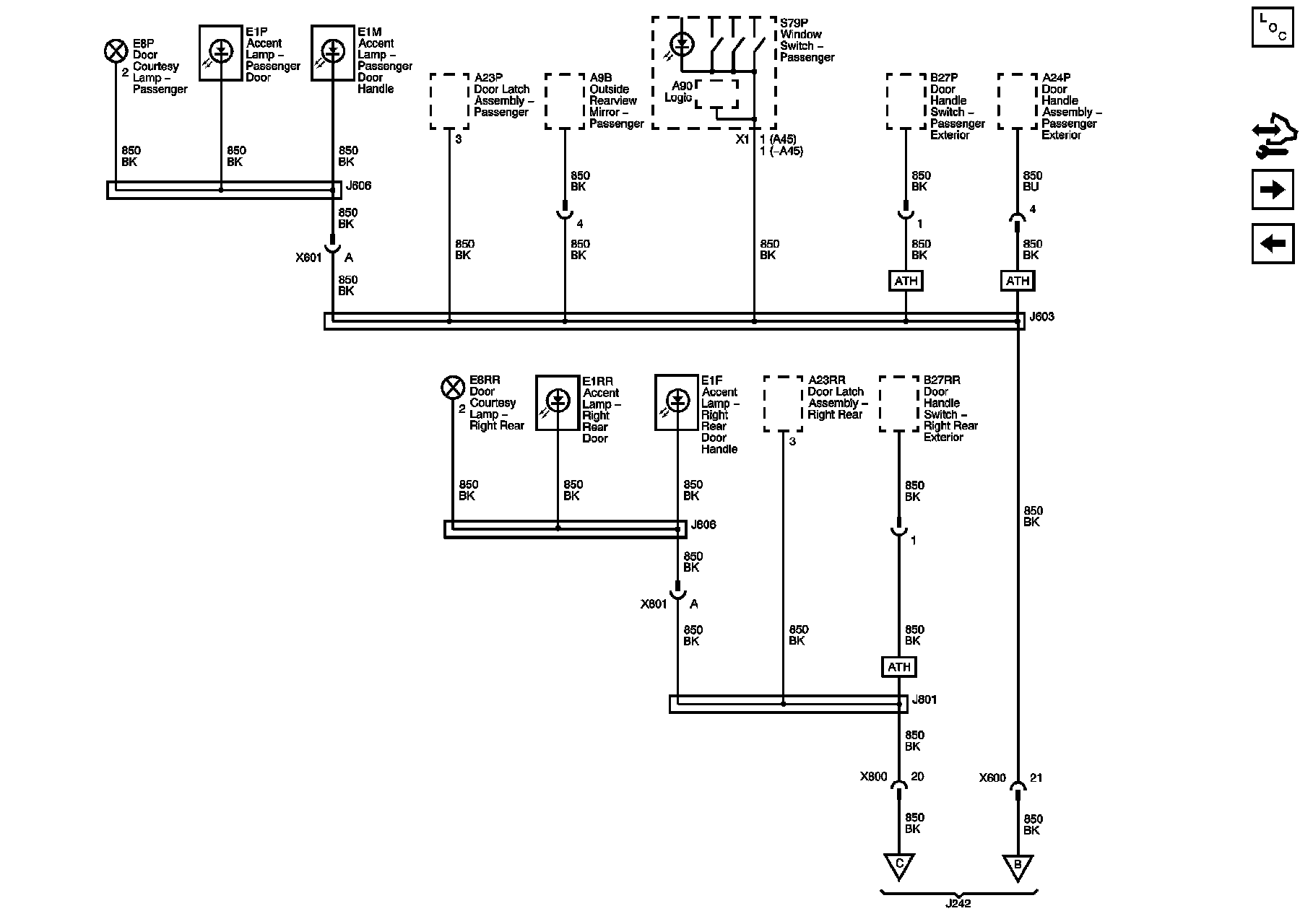

G203 (1 of 2) and G205









Ground Distribution Schematics

G203 (2 of 2)








Ground Distribution Schematics

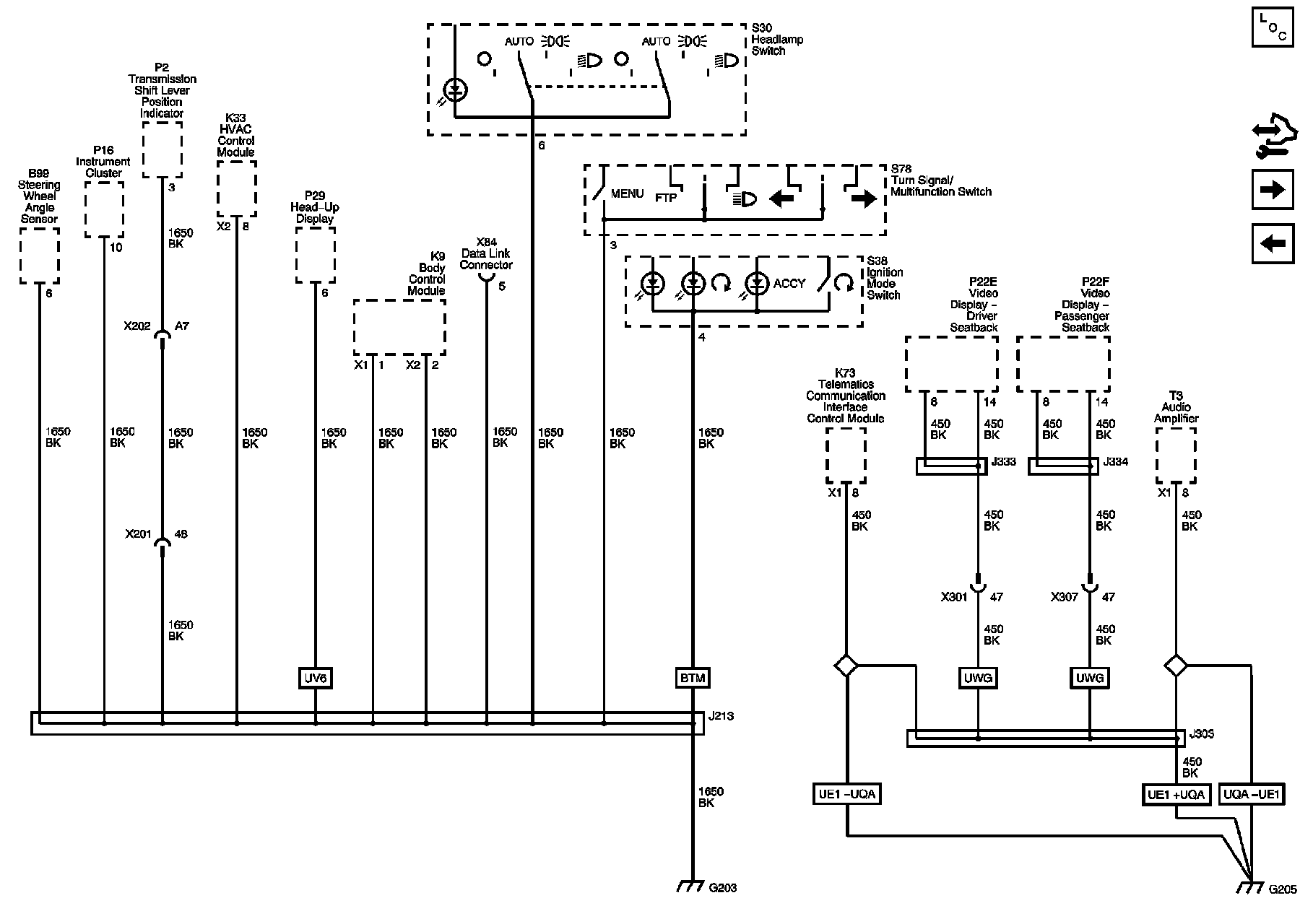

G203 and G205
