Interior Lights Schematics




Interior Lights Schematics

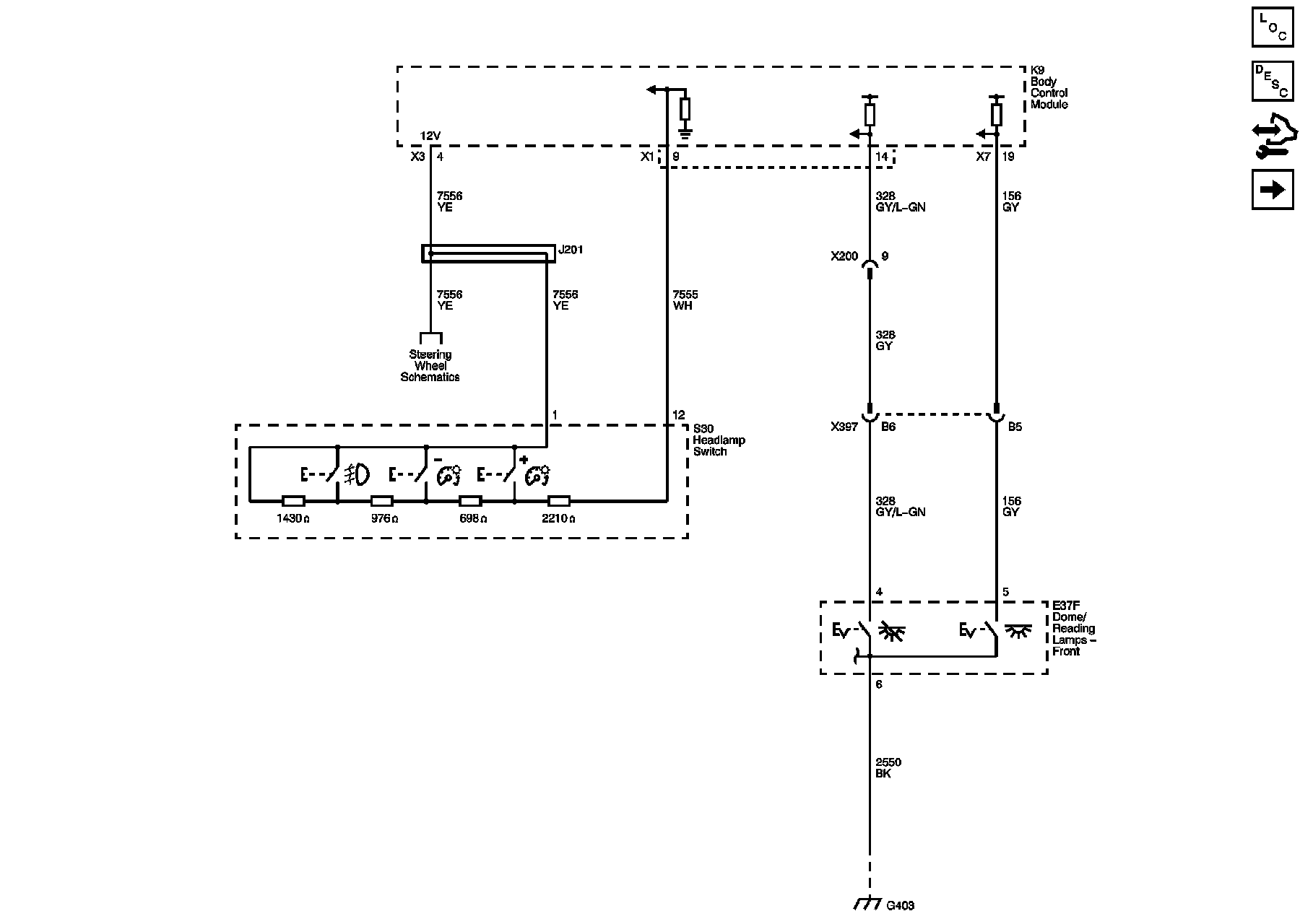

Interior Lighting Controls

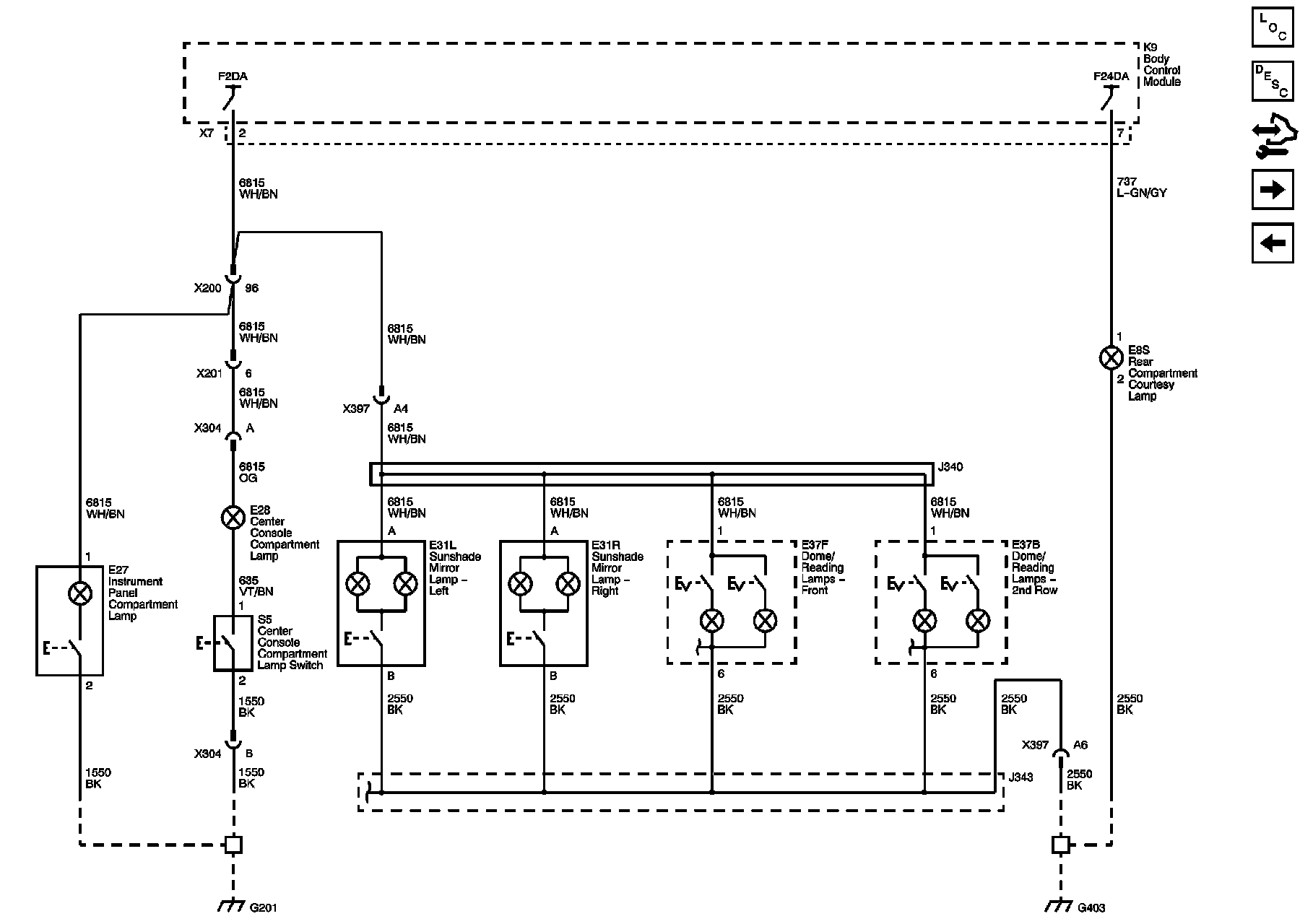

Dome/Reading, Sunshade Mirror, and Interior Compartments Lamps

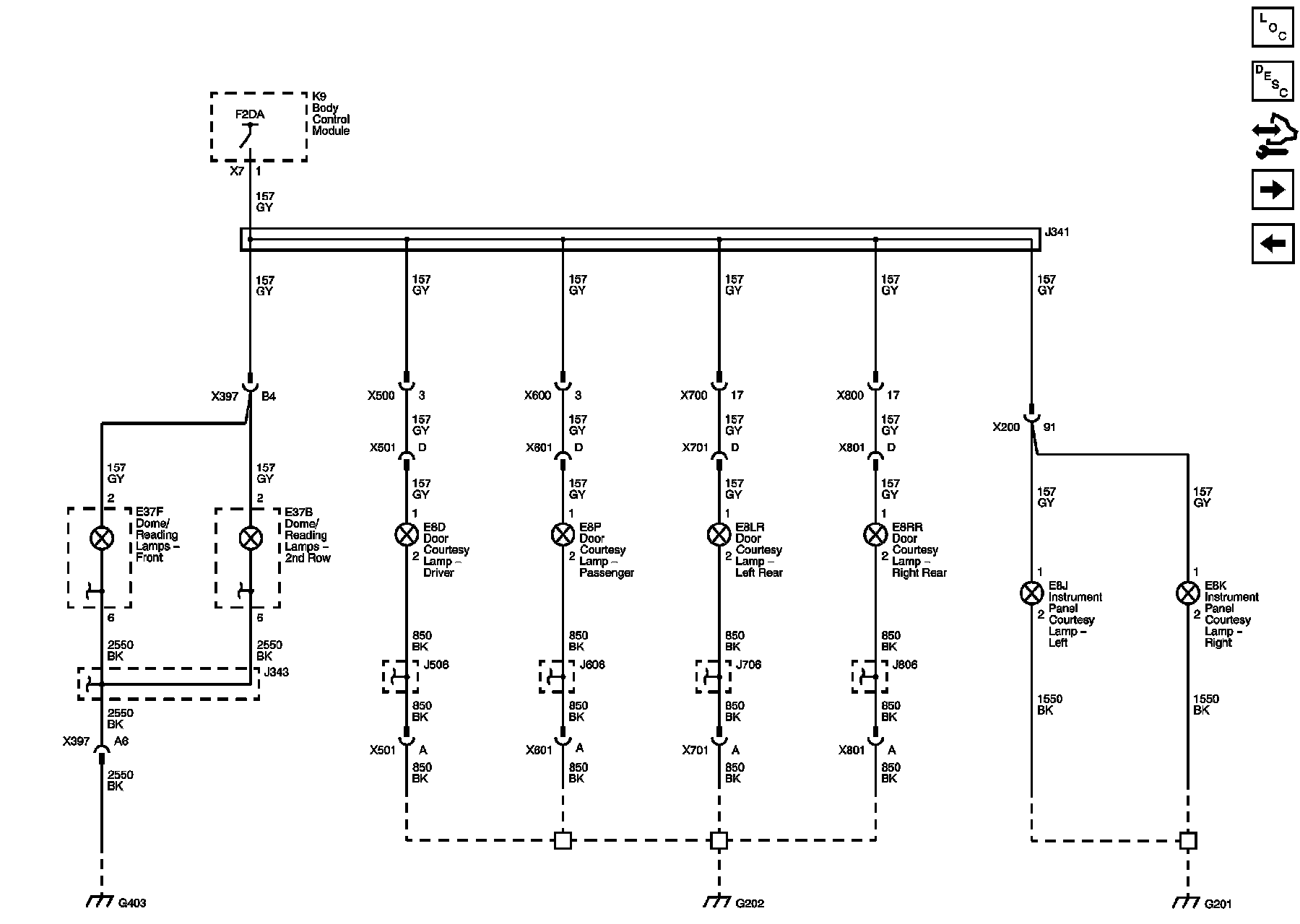

Courtesy Lamps

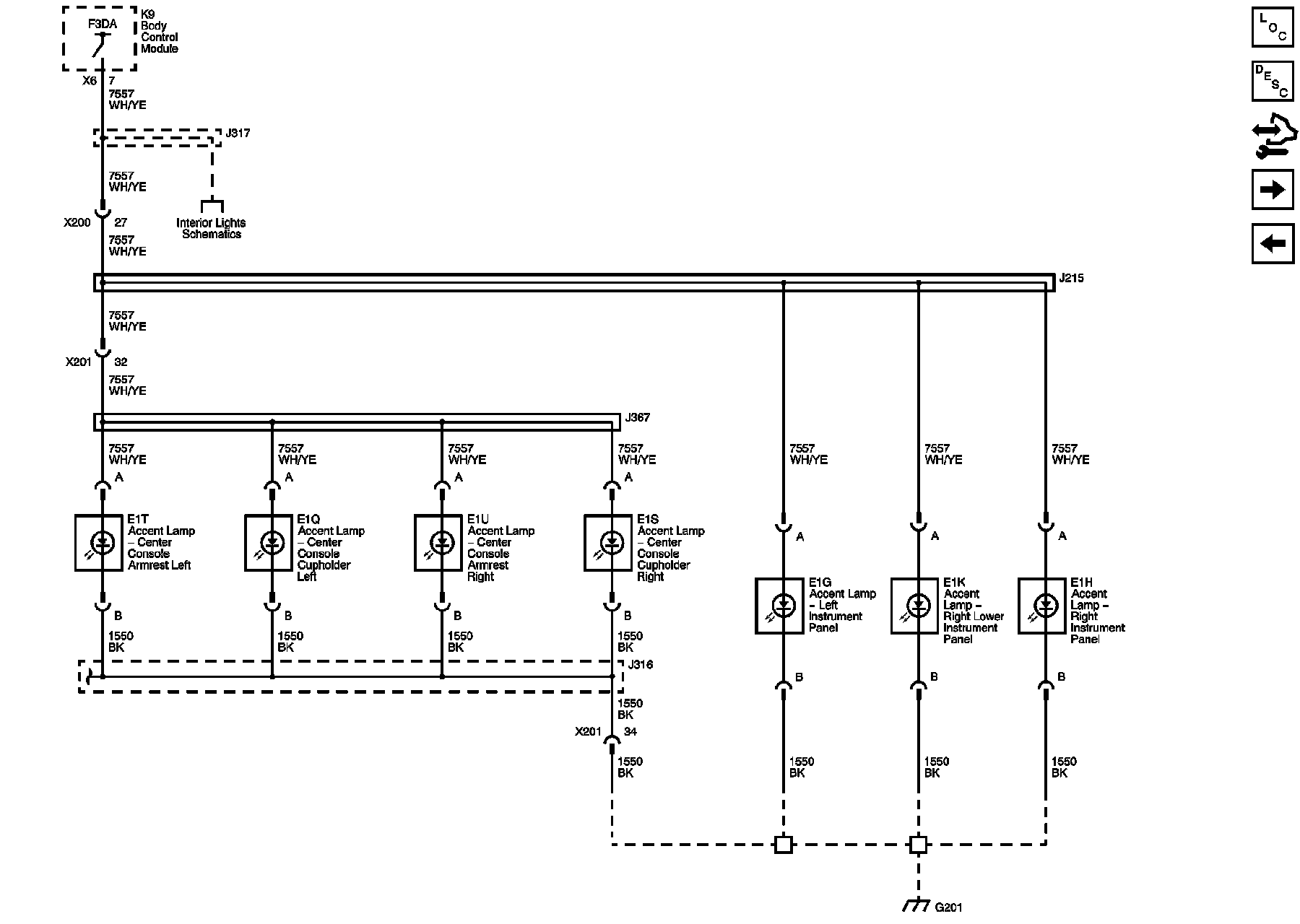

Accent Lamps - Instrument Panel and Console

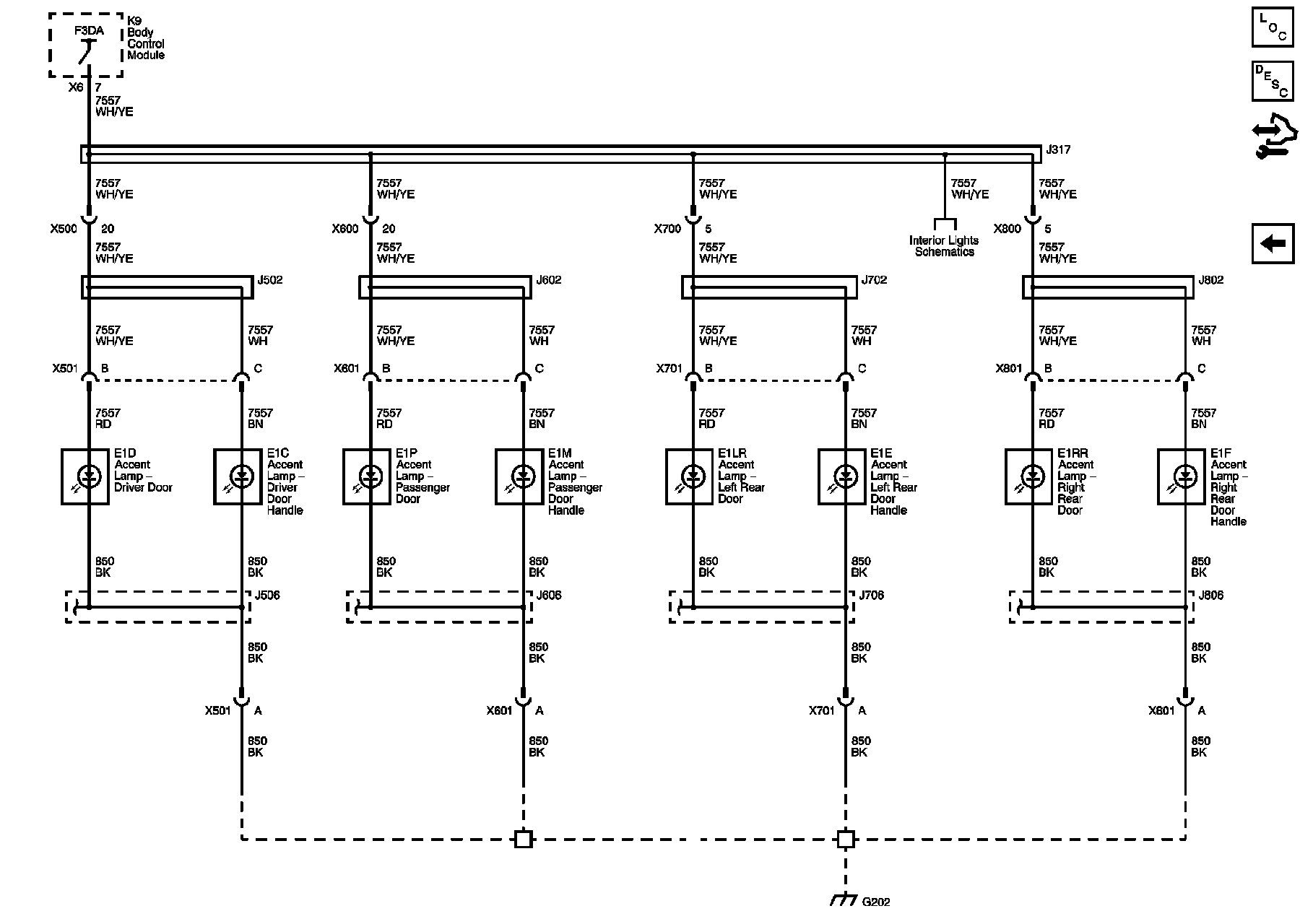

Accent Lamps - Doors
