Home
>>
Buick
>>
2013
>>
LaCrosse AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>

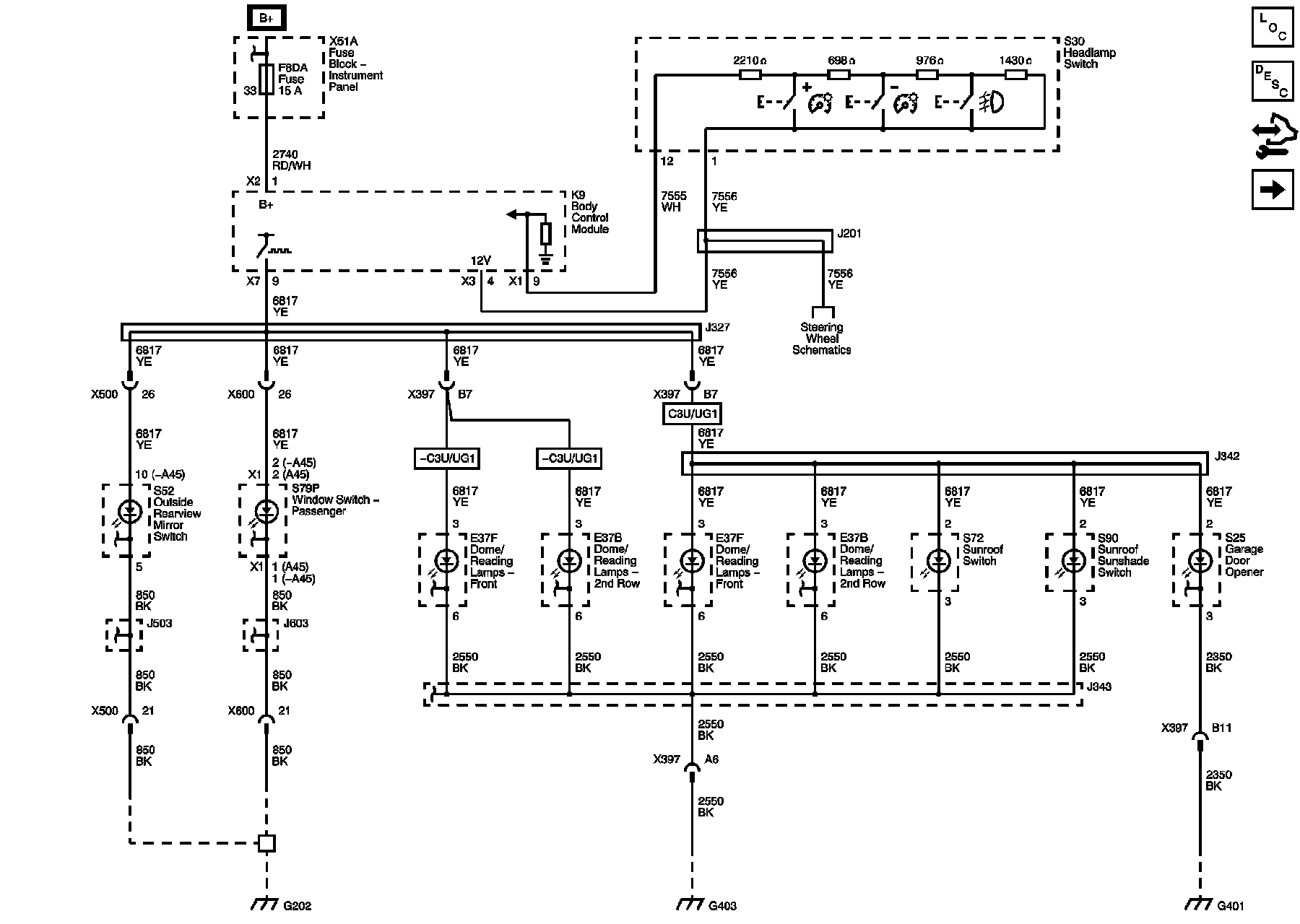

Interior Lights Dimming Schematics
Interior Lights Dimming Schematics
Interior Lights Dimming Schematics
Passenger Compartment
Instrument Panel and Steering Wheel
