Exterior Lights Schematics
Exterior Lights Schematics
Exterior Lighting Controls

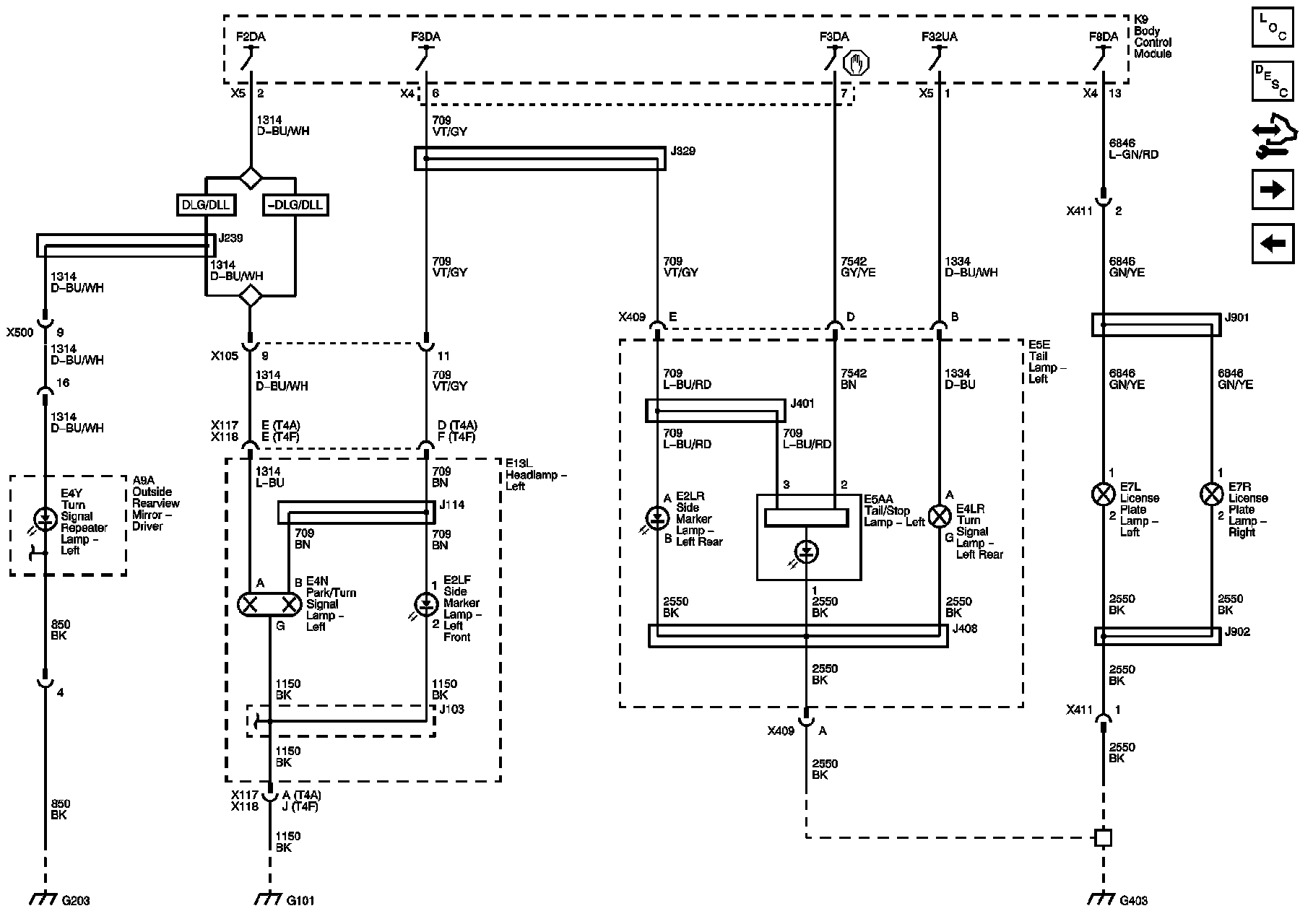

License, Marker, Park, Stop, Tail Lamps - Left

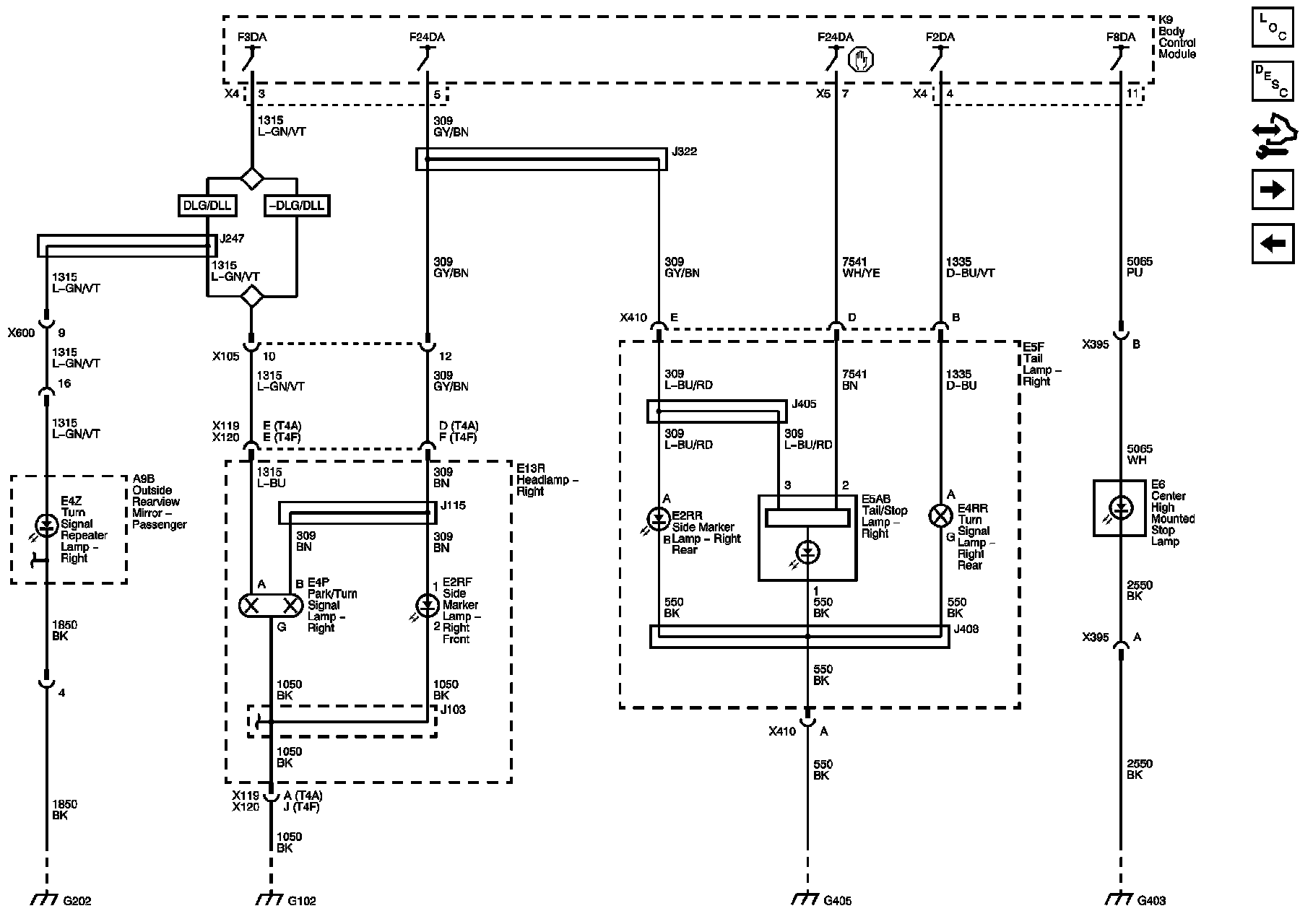

Center High Mounted Stop Lamp, Marker, Park, Stop, Tail Lamps - Right

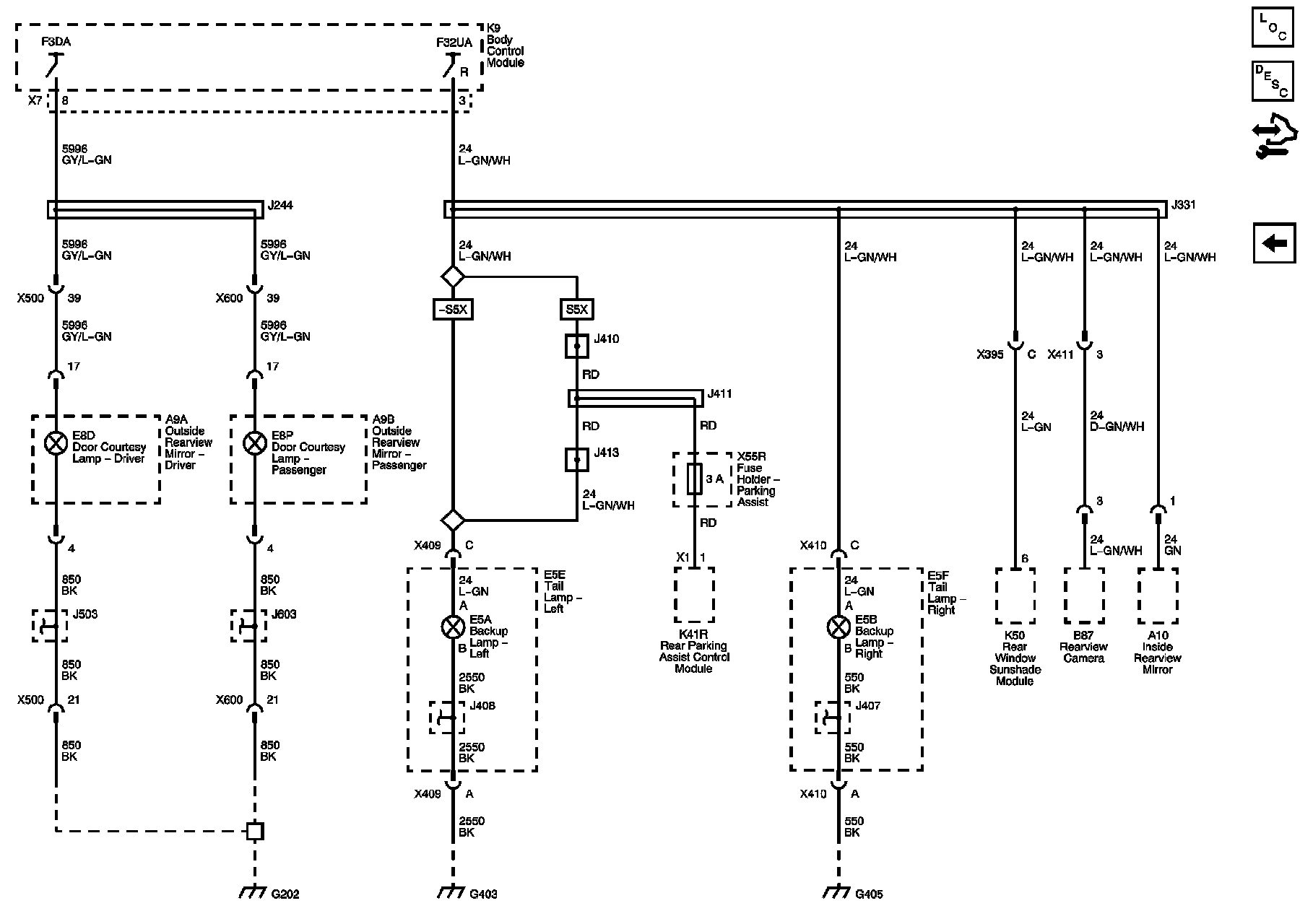

Backup Lamps and Exterior Courtesy Lamps
Exterior Lights Schematics
Exterior Lighting Controls
License, Marker, Park, Stop, Tail Lamps - Left
Center High Mounted Stop Lamp, Marker, Park, Stop, Tail Lamps - Right
Backup Lamps and Exterior Courtesy Lamps
