Radio/Navigation System Schematics




Radio/Navigation System Schematics

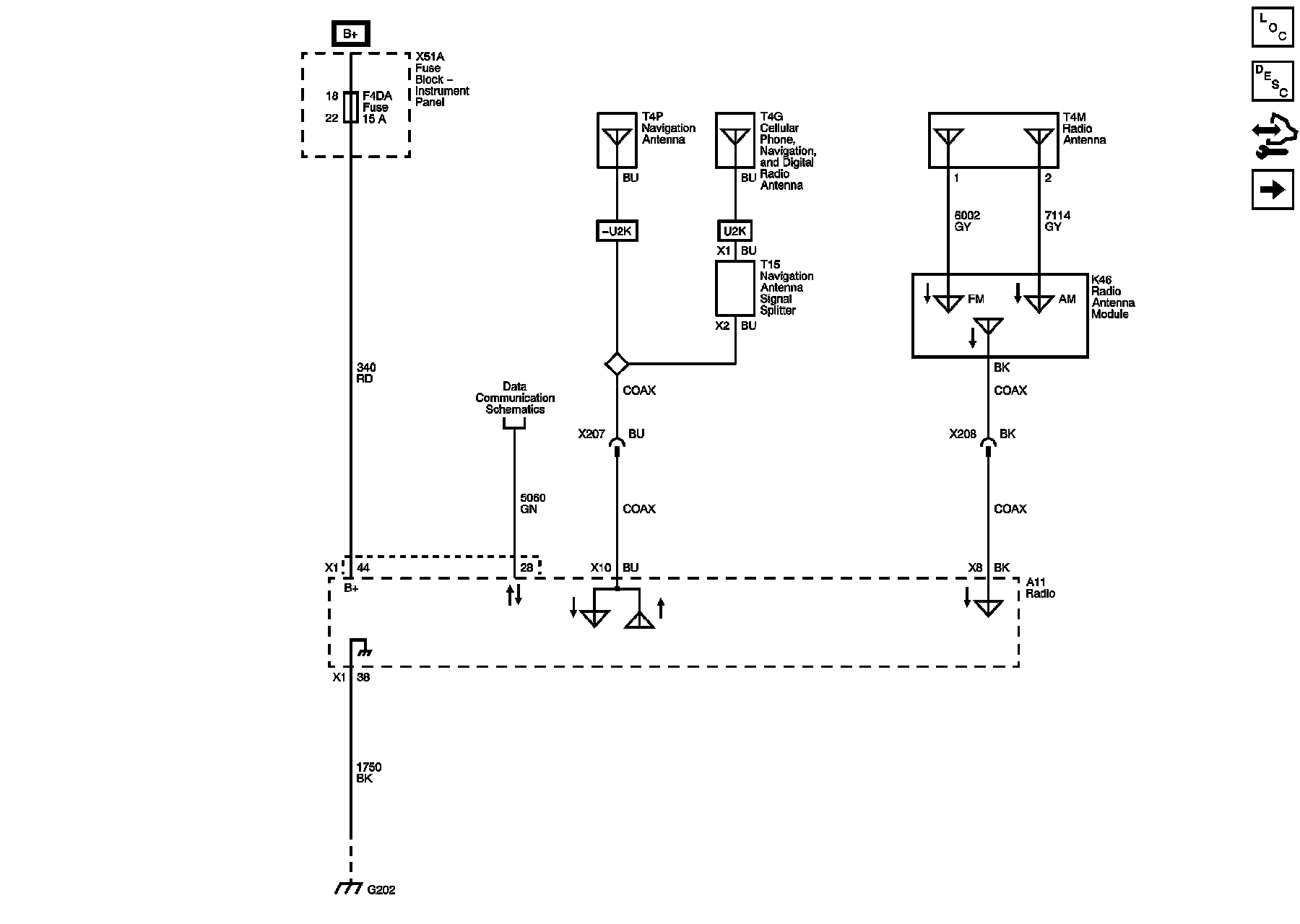

Power, Ground, Antennas and Serial Data

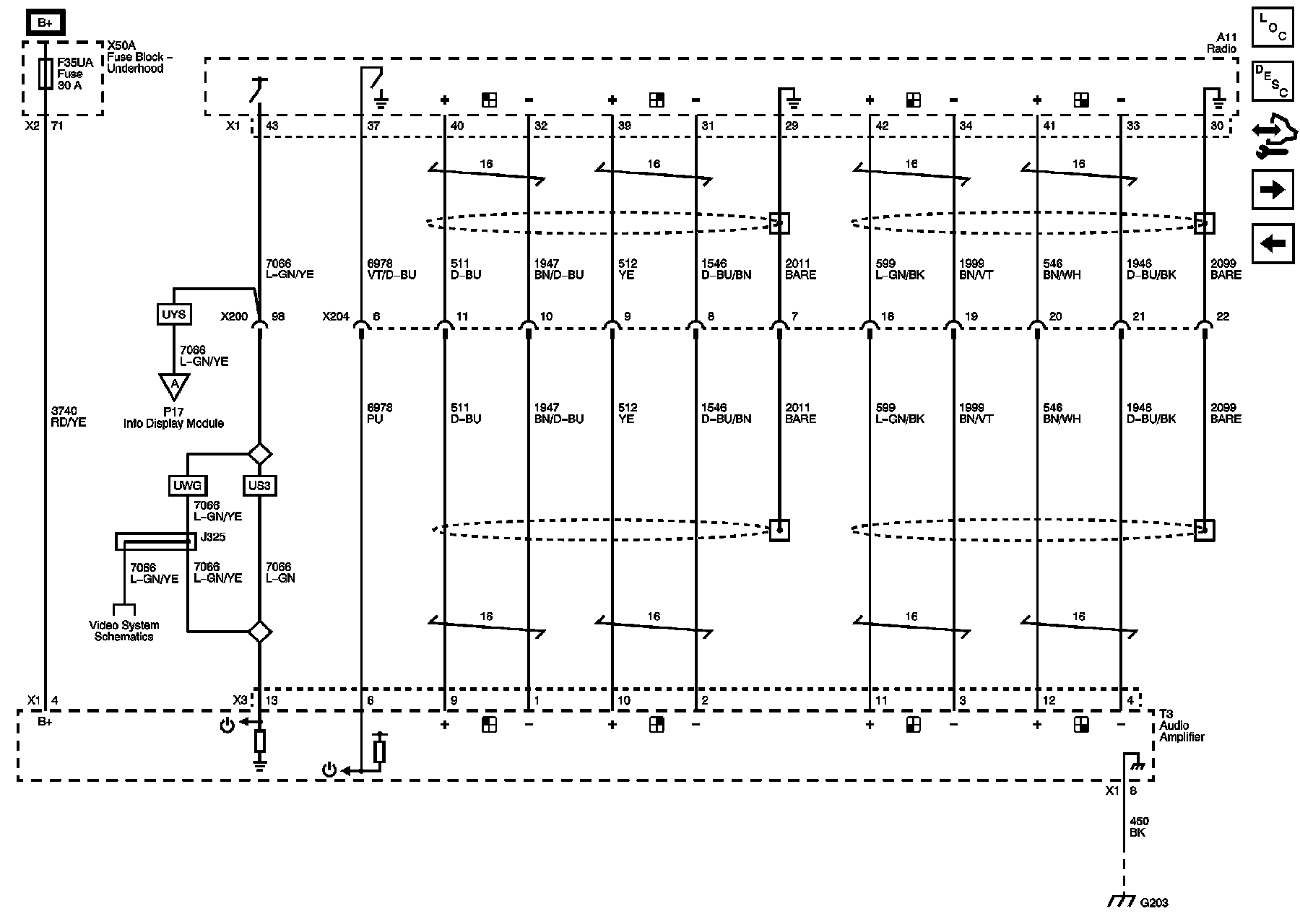

Amplifier (UQA)





Amplifier (UQA with UYS or UWG)

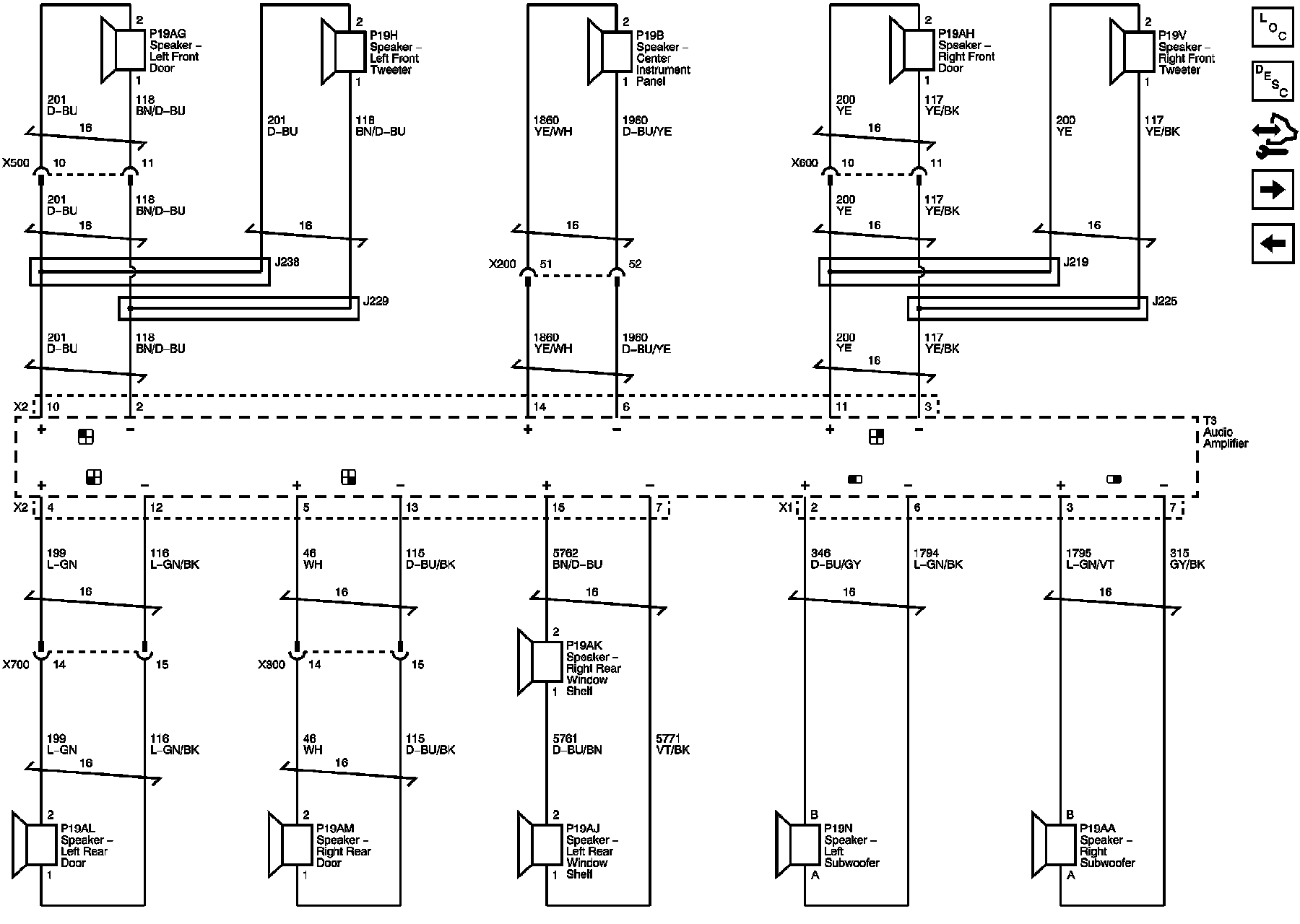

Speakers (UQA)

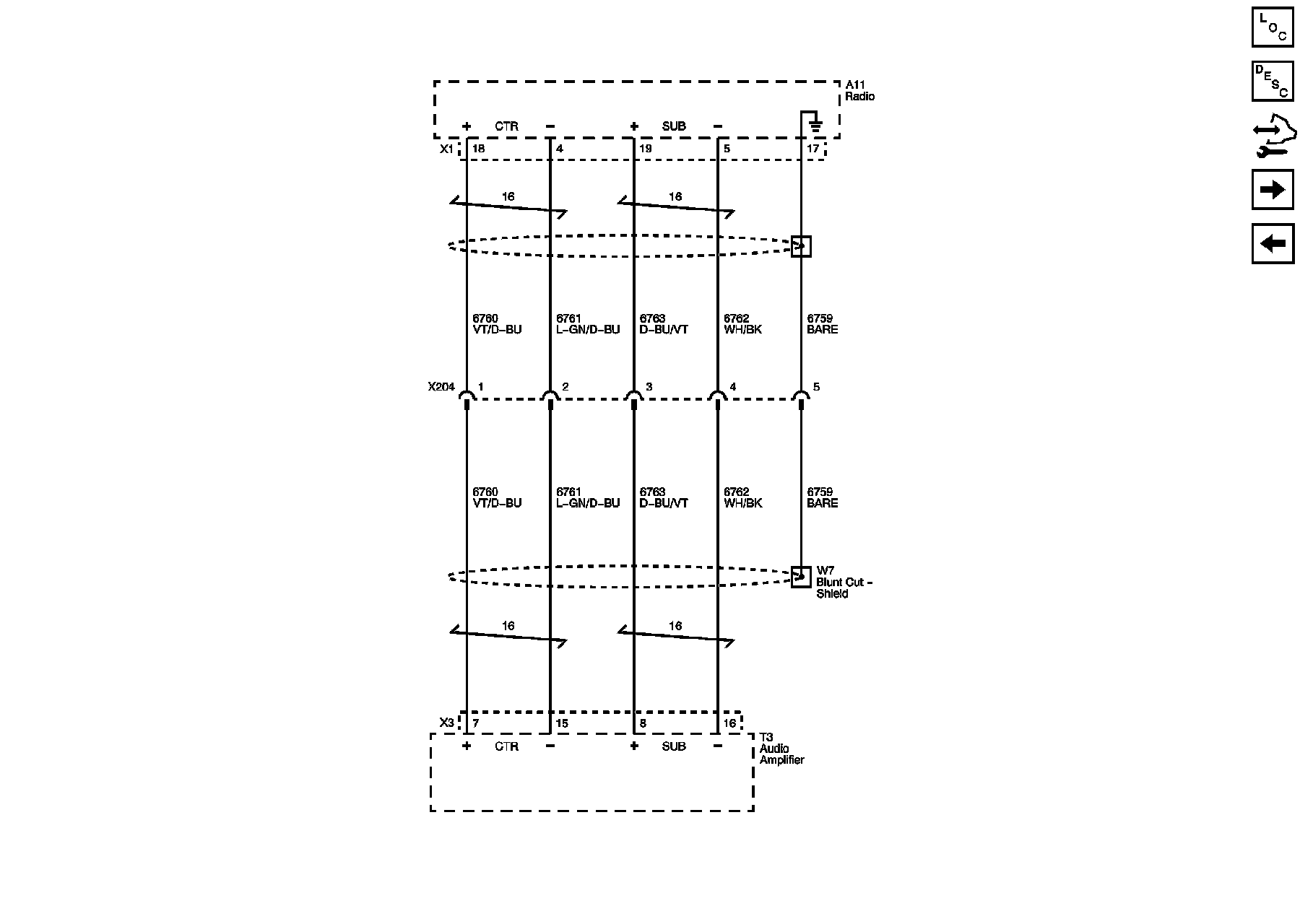

Speakers (U65)

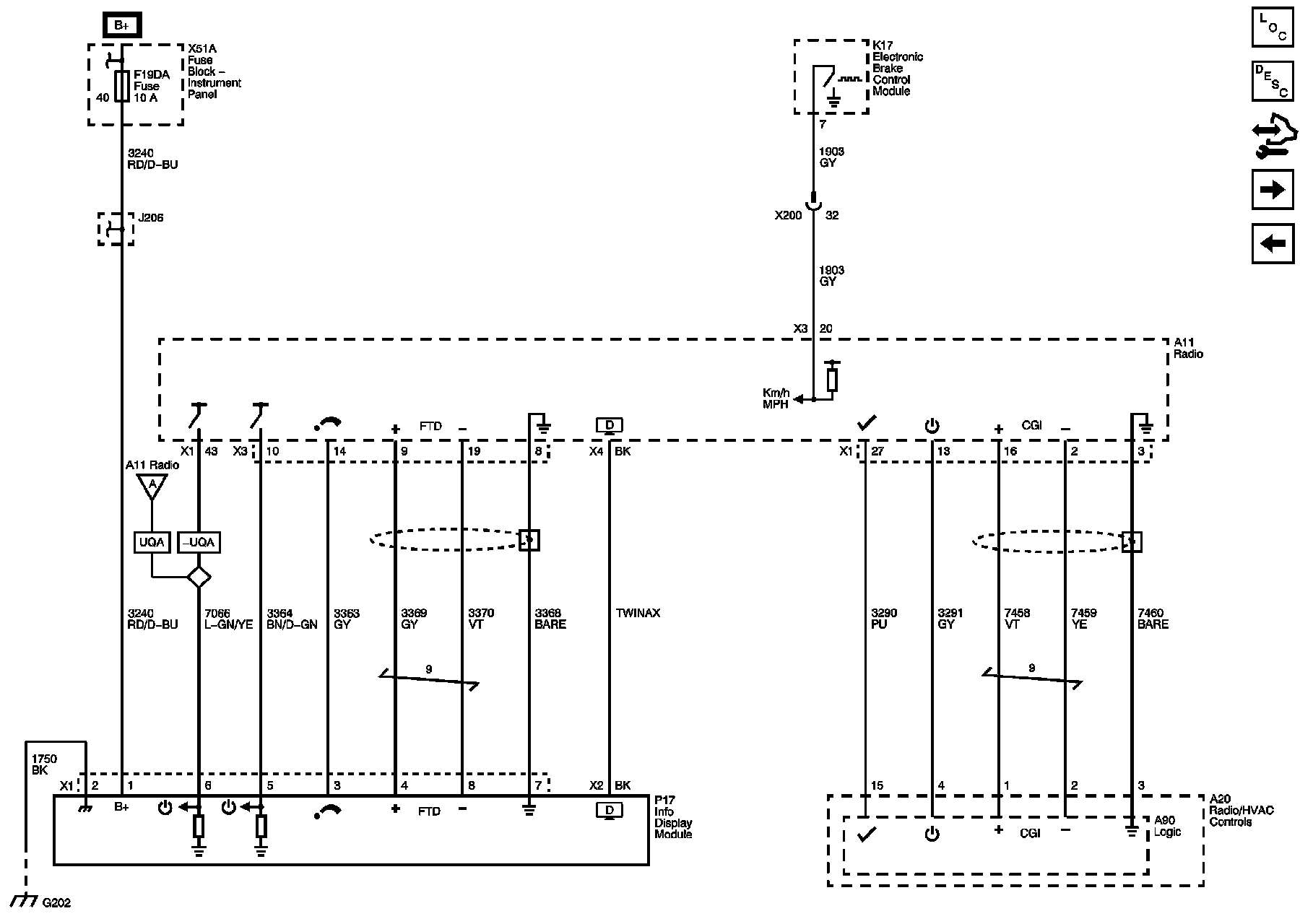

Display (without UYS)

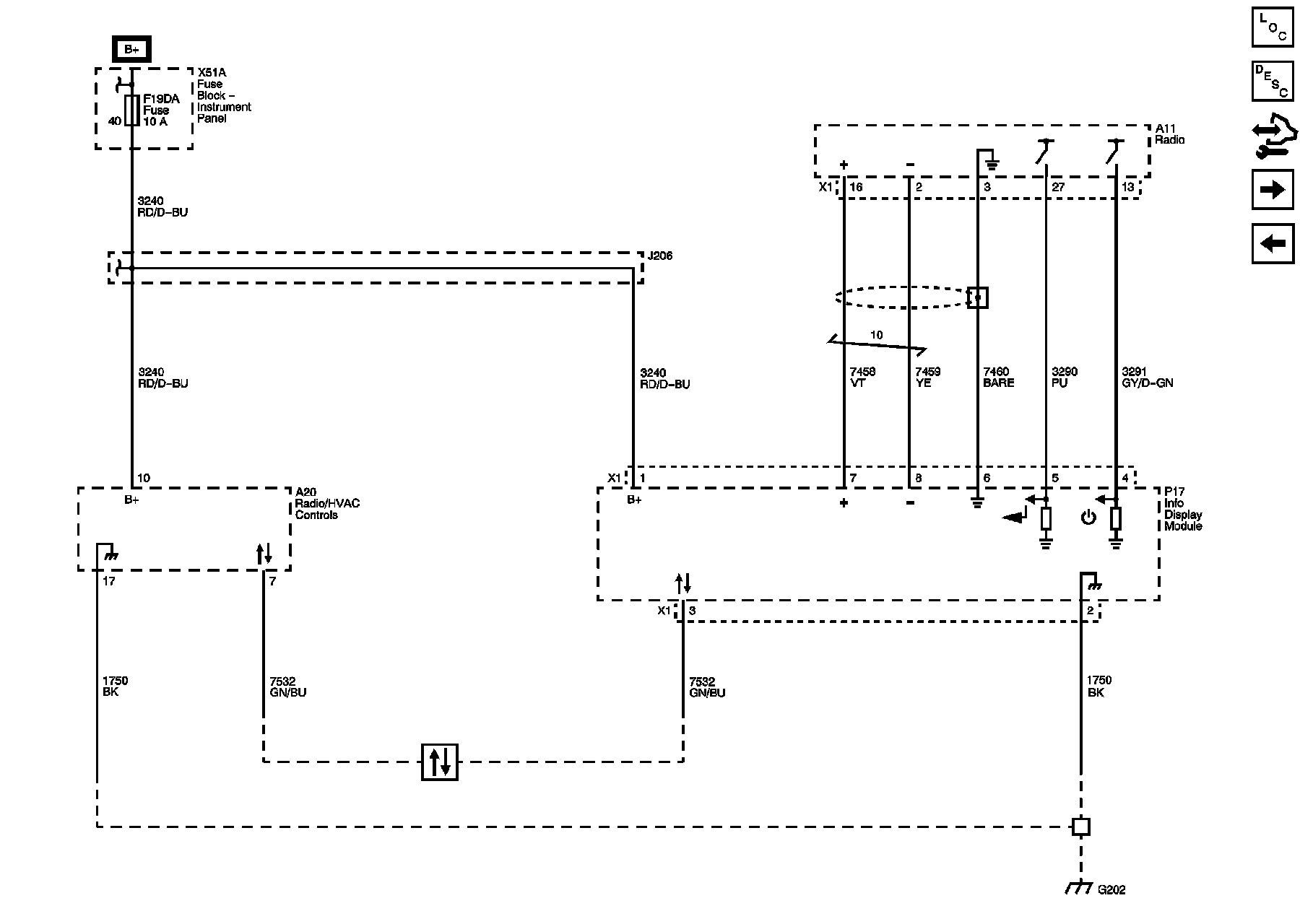

Navigation System (UYS)

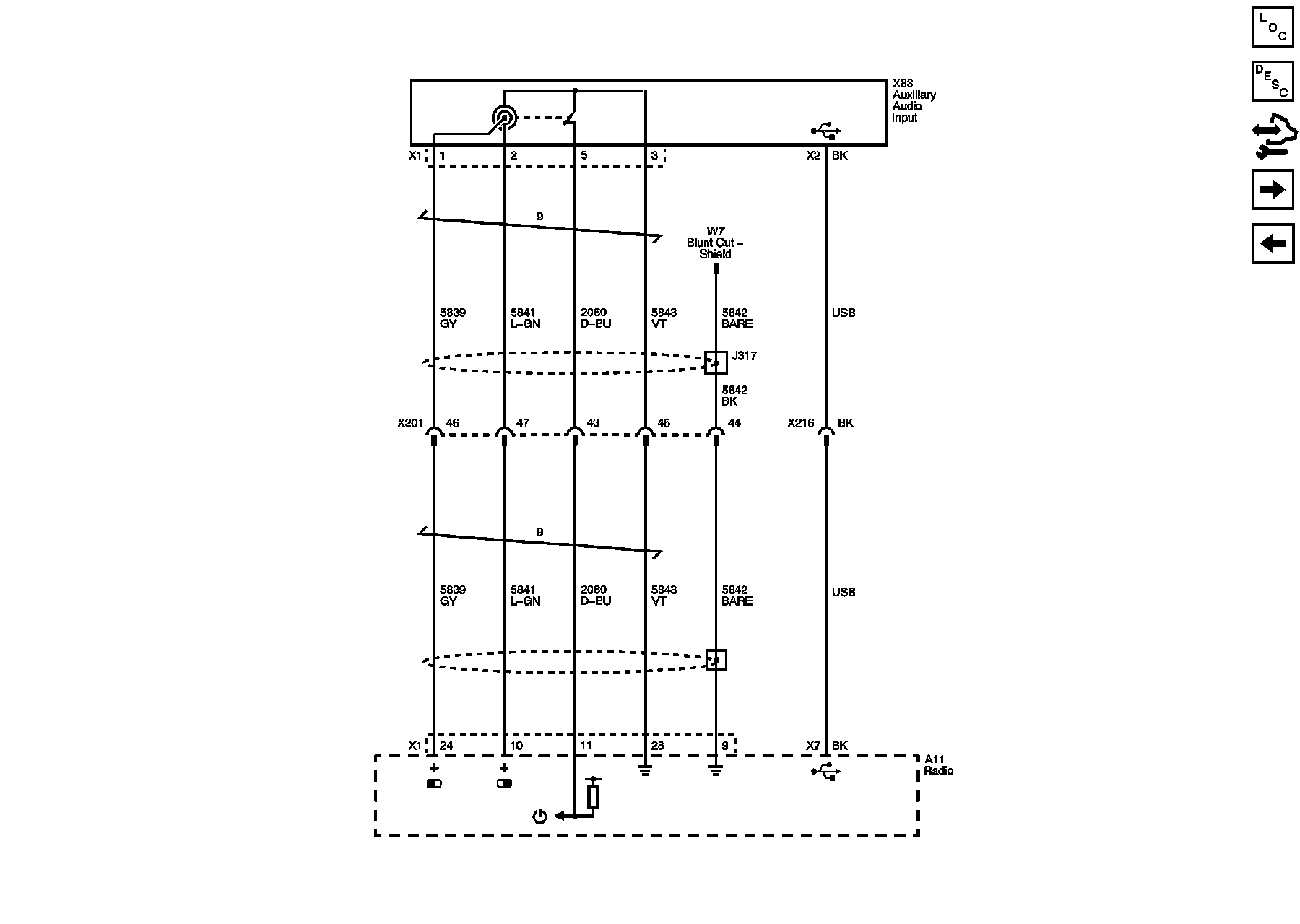

Auxiliary Audio Input
