Rear Door Harnesses Routing

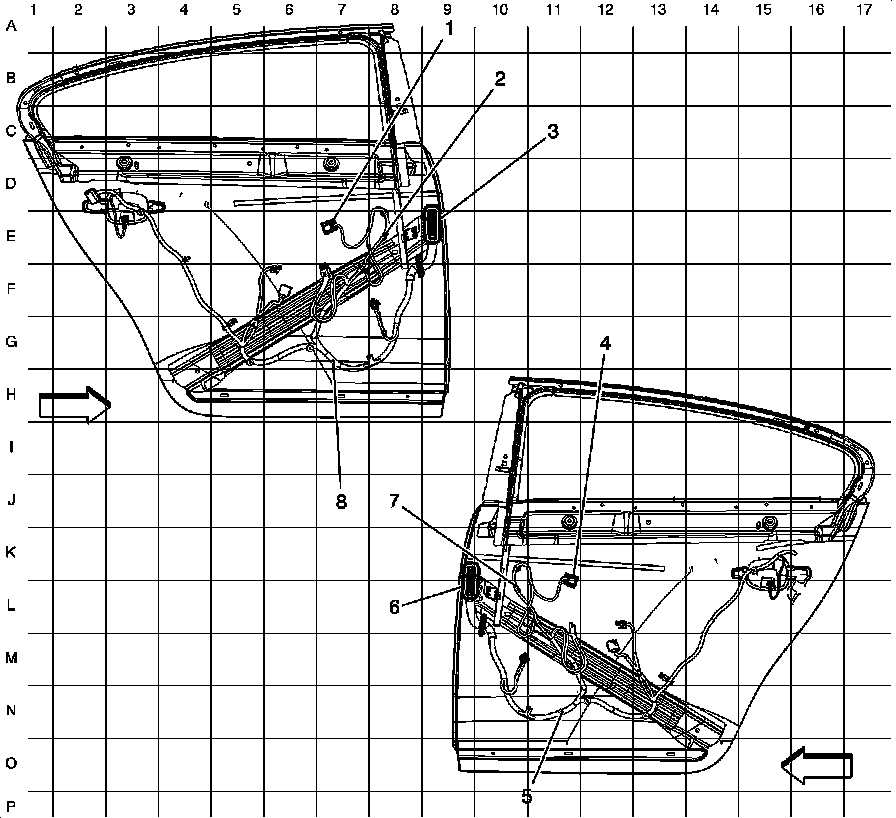

Harness Routing Views

Rear Door Harnesses Routing





1 - X701

2 - J702

3 - X700

4 - X801

5 - J801

6 - X800

7 - J802

8 - J701
