Rear Body and License Lamp Harnesses Routing - Inside Rear Compartment




Harness Routing Views

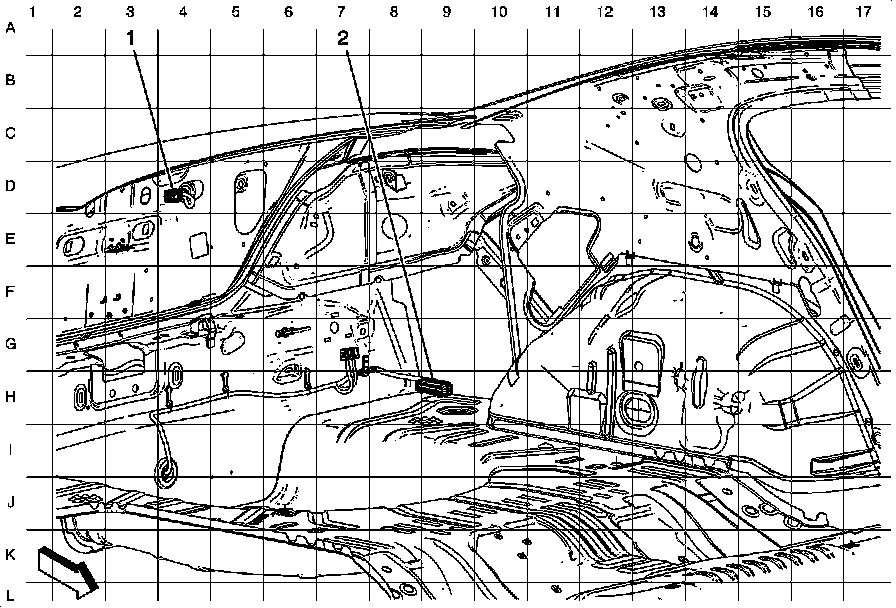

Rear Body and License Lamp Harnesses Routing - Inside Rear Compartment





1 - X411

2 - X407
