Rear Body and License Lamp Harnesses Routing - Rear of Vehicle

Harness Routing Views

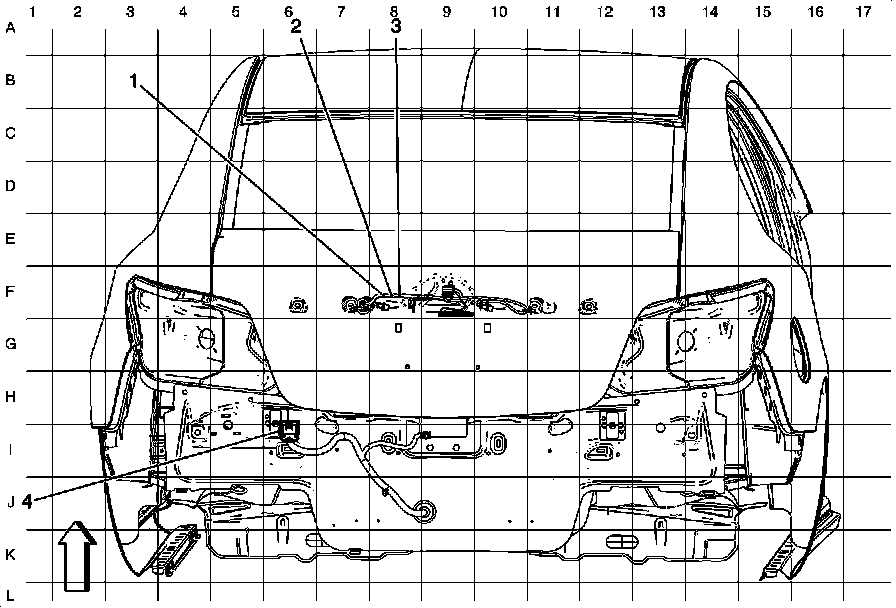

Rear Body and License Lamp Harnesses Routing - Rear of Vehicle

1 - J901

2 - J903

3 - J902

4 - X406
