Engine Harness Routing - Left Front of Engine (LFX)

Harness Routing Views

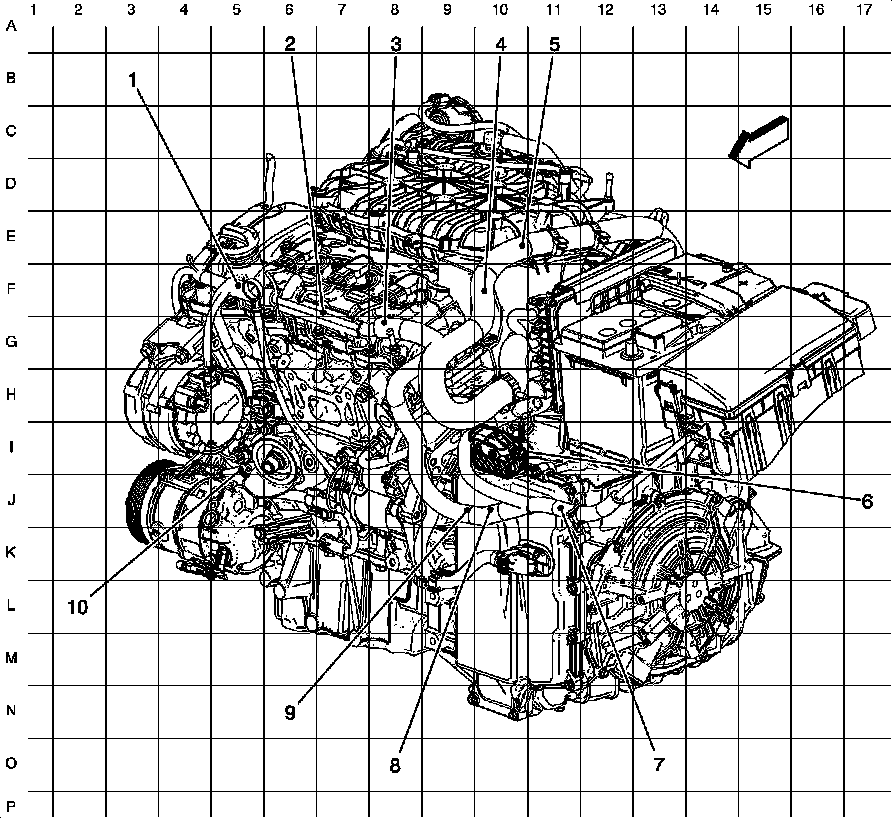

Engine Harness Routing - Left Front of Engine (LFX)





1 - J118

2 - J109

3 - J119

4 - J133

5 - J141

6 - X108

7 - J113

8 - J110

9 - J131

10 - J108
