Power Steering Control Module (NV7)

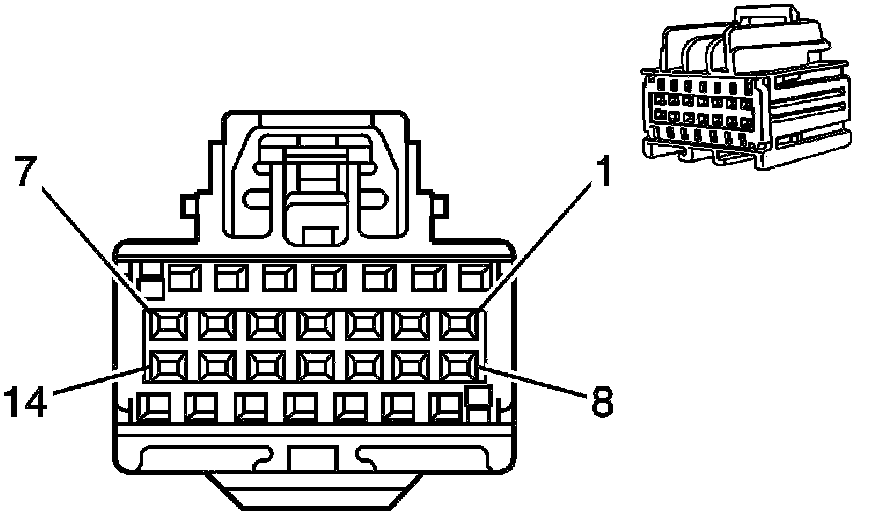

Component Connector End Views

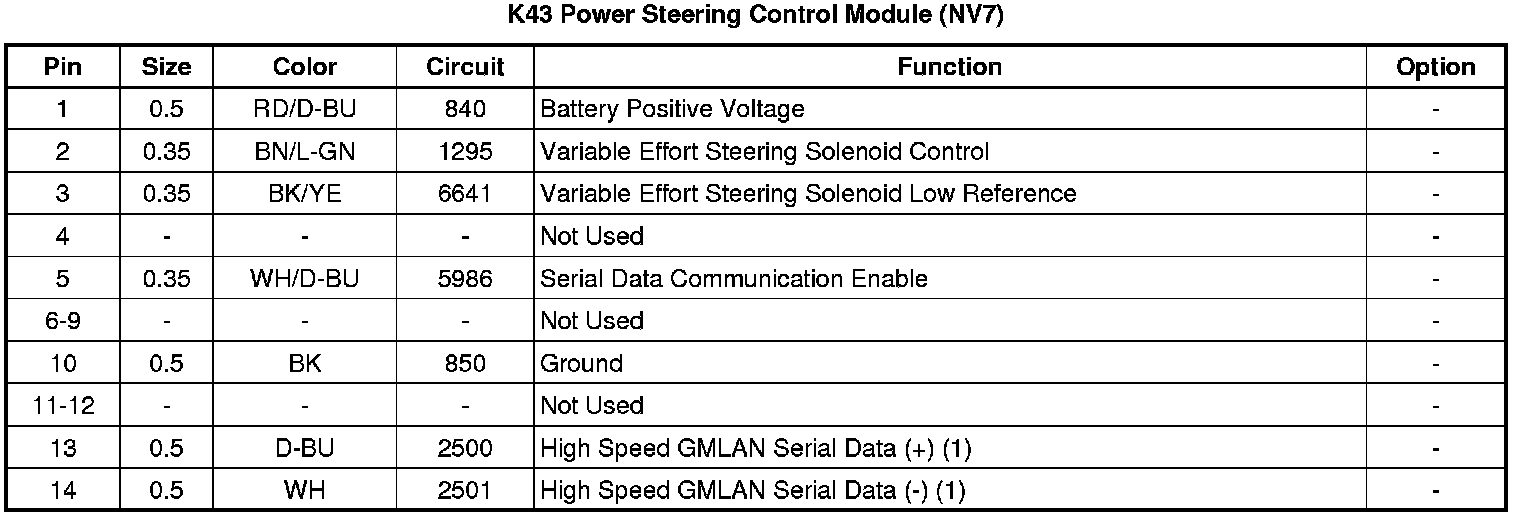

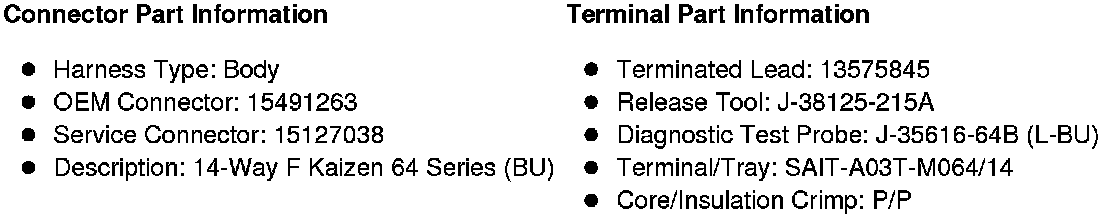

K43 Power Steering Control Module (NV7)
