Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX)
Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX)

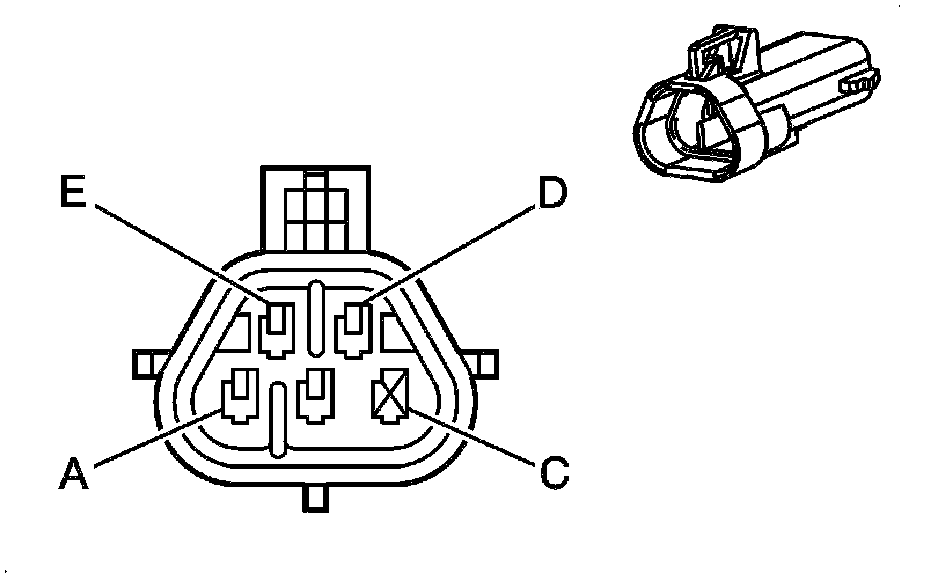

Component Connector End Views

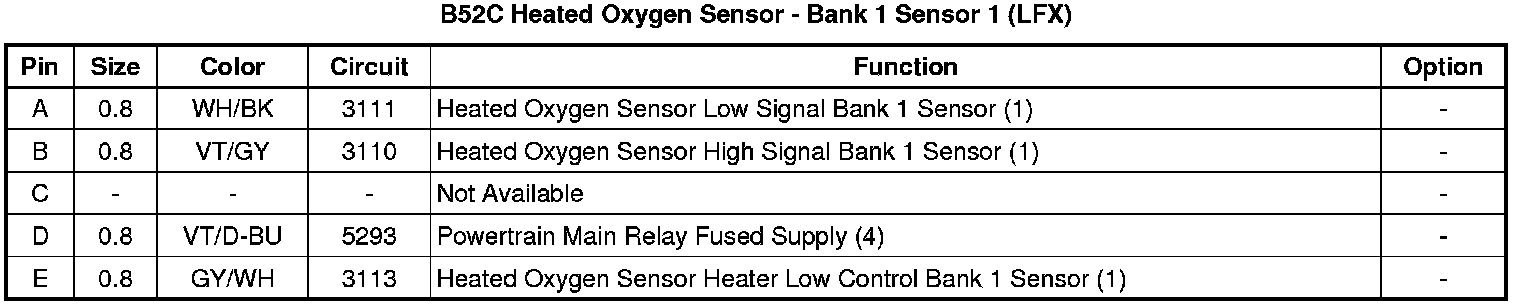

B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX)
