Headlamp Horizontal Motor - Right (T4F)

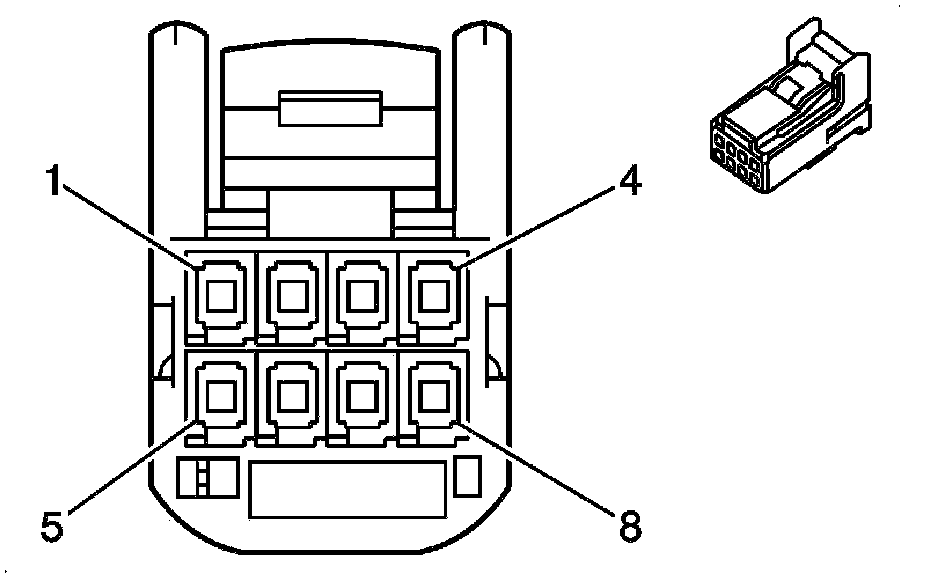

Component Connector End Views

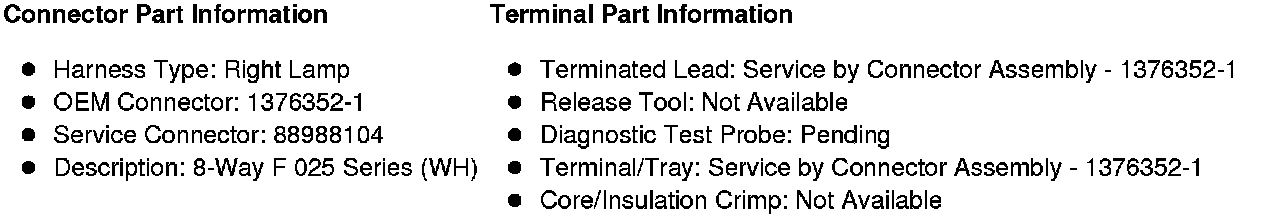

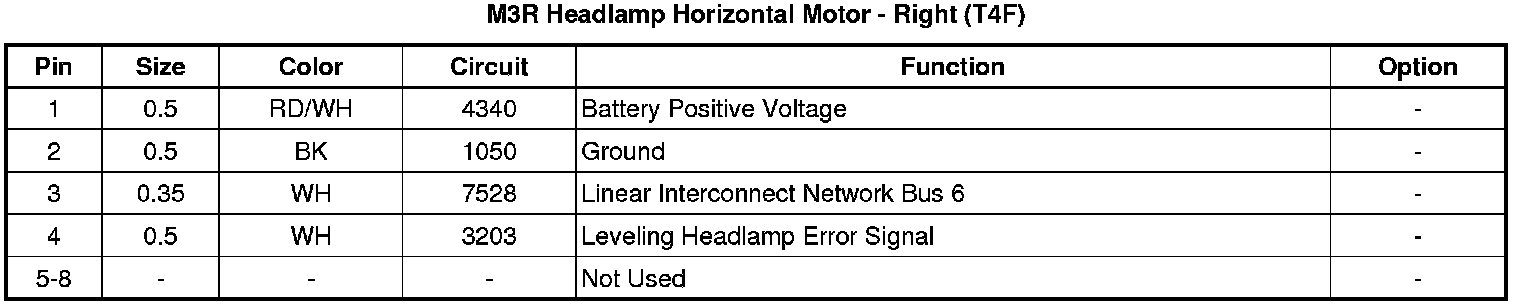

M3R Headlamp Horizontal Motor - Right (T4F)
