Sunroof Switch (C3U)

Passenger Compartment/Roof Component Views

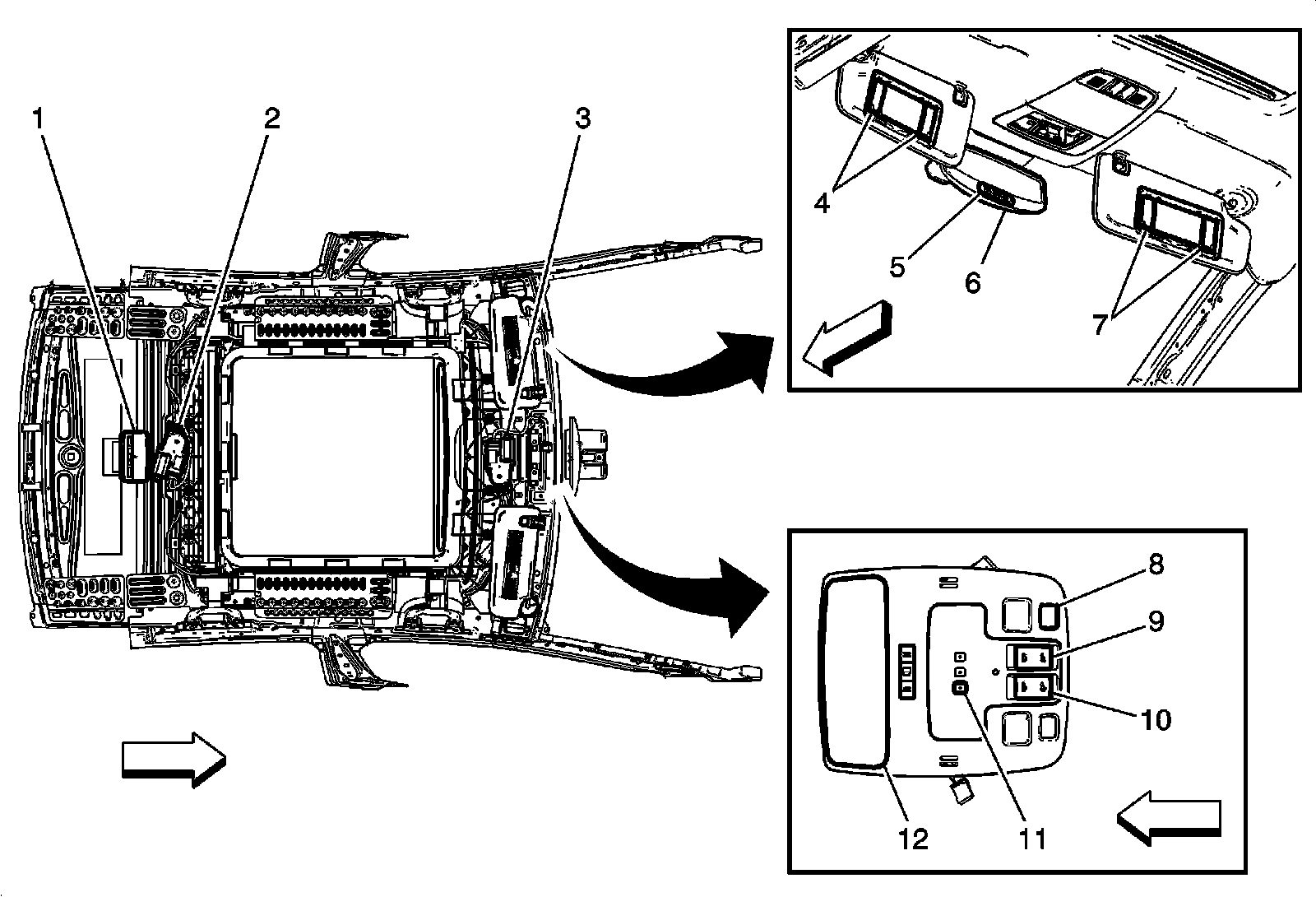

Sunroof and Roof Components





1 - E37B Dome/Reading Lamps - 2nd Row

2 - K62 Sunroof Sunshade Motor Module (C3U)

3 - K61 Sunroof Control Module (C3U)

4 - E31L Sunshade Mirror Lamp - Left

5 - S51 Telematics Button Assembly (UF1)

6 - A10 Inside Rearview Mirror (DD8)

7 - E31R Sunshade Mirror Lamp - Right

8 - B24 Cellular Phone Microphone (UE1)

9 - S90 Sunroof Sunshade Switch (C3U)

10 - S72 Sunroof Switch (C3U)

11 - S25 Garage Door Opener (UG1)

12 - E37F Dome/Reading Lamps - Front
