Front Heated Seat Malfunction (With Memory A45)
Front Heated Seat Malfunction (With Memory A45)
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
Diagnostic Fault Information
Circuit/System Description
The driver and front passenger heated seats are controlled by separate heated seat switches that are located in the radio/HVAC controls. When a heated seat switch is pressed, a serial message is sent from the radio/HVAC controls to the HVAC control module indicating the heated seat command. The HVAC control module then serves as a gateway to transmit the message to the seat memory control module via the serial data line. In response to this message, the seat memory control module applies battery positive voltage through the element supply voltage circuit to the appropriate seat heating elements. The seat memory control module then sends a serial data message back to the HVAC control module to gateway the information to the radio/HVAC controls to either illuminate or turn off the appropriate temperature indicator.
Reference Information
Schematic Reference
Heated/Cooled Seat Schematics Electrical Diagrams
Connector End View Reference
Component Connector End Views Fuel Pump and Level Sensor Assembly
Description and Operation
Heated/Vented Seat Description and Operation Description and Operation
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Control Module References for scan tool information

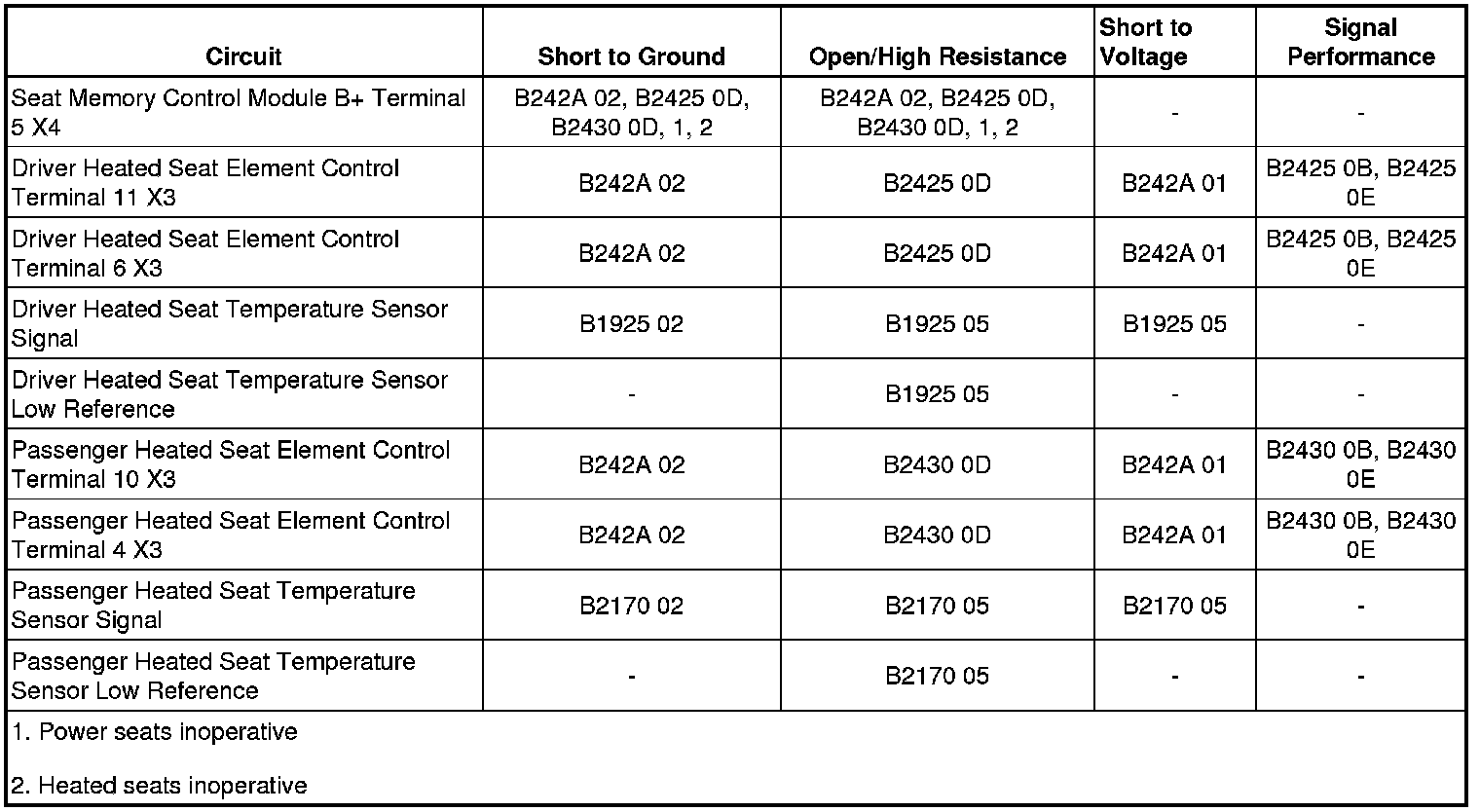

Circuit/System Testing
1. Ignition OFF, disconnect the X4 harness connector at the K40 seat memory control module, ignition ON.
2. Verify a test lamp illuminates between the B+ circuit terminal 5 and ground.
• If the test lamp does not illuminate
1. Ignition OFF.
2. Test for less than 2 ohms in the B+ circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, verify the fuse is not open and there is voltage at the fuse.
• If the test lamp illuminates
3. Ignition OFF, connect the X4 harness connector at the K40 seat memory control module, ignition ON,
4. Verify the scan tool Seat Memory Control Module Driver Seat Heating/Venting/Cooling Mode parameter changes between Off and Back & Cushion Heat after pressing the driver heated seat switch.
• If the parameter does not change
Replace the A20 radio/HVAC controls.
• If the parameter changes
5. Verify the scan tool Passenger Front Seat Heating/Venting/Cooling Mode parameter changes between Off and Back & Cushion Heat after pressing the passenger heated seat switch.
• If the parameter does not change
Replace the A20 radio/HVAC controls.
• If the parameter changes
6. Replace the K40 seat memory control module.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the repair.
* Radio Control Assembly Replacement Radio Control Assembly Replacement
* Control Module References Control Module References for seat memory control module replacement, programming and setup
