Seat Heated Control Module - Rear

Passenger Compartment/Roof Component Views

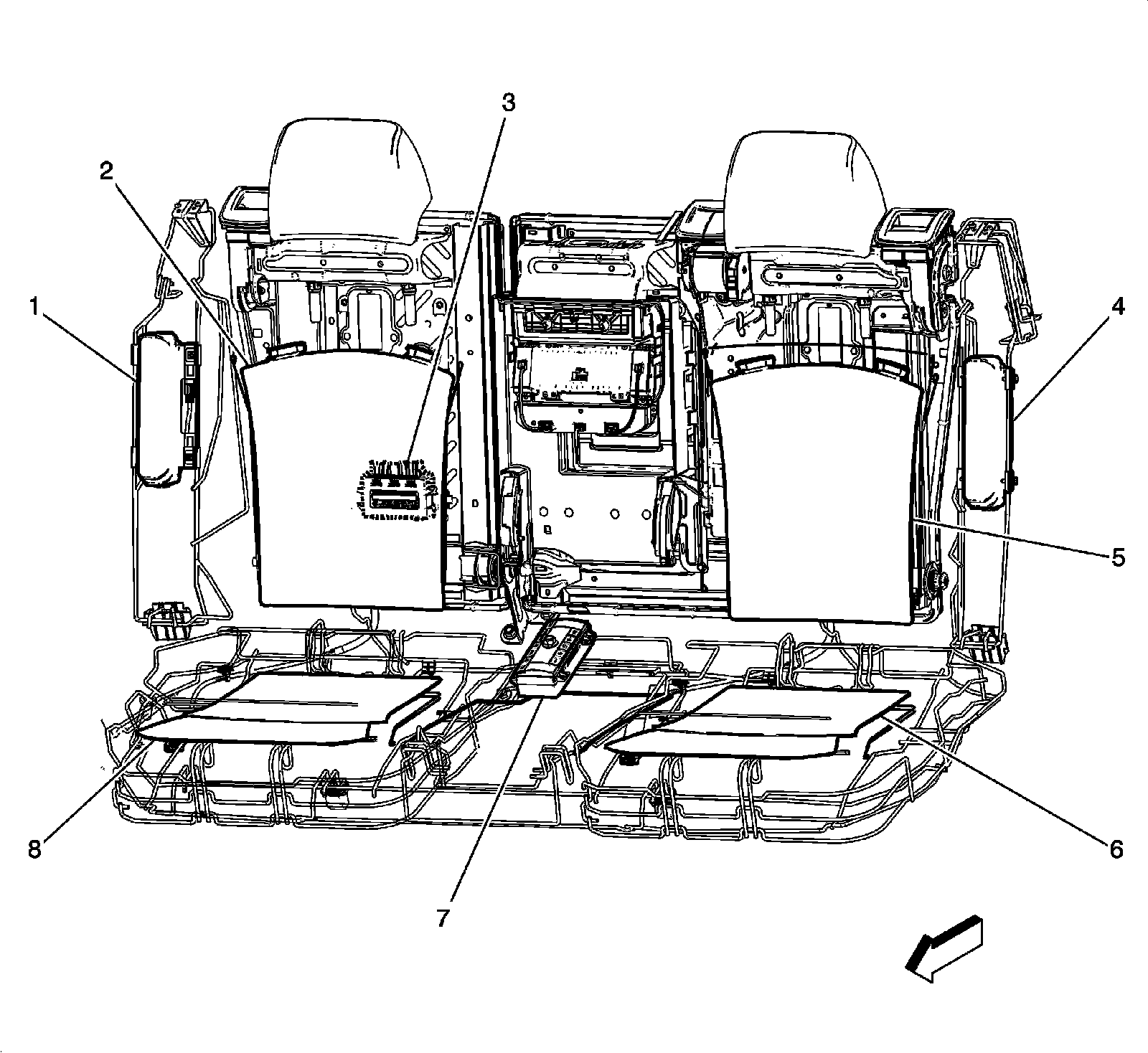

Rear Seat Components





1 - F106RR Seat Air Bag - Right Rear

2 - E14G Seat Heated Element - Right Rear Back

3 - K29R Seat Heated Control Module - Rear

4 - F106LR Seat Air Bag - Left Rear

5 - E14E Seat Heated Element - Left Rear Back

6 - E14F Seat Heated Element - Left Rear Cushion

7 - A13 Rear Audio Control Module

8 - E14H Seat Heated Element - Right Rear Cushion
