Outside Rearview Mirror Schematics




Outside Rearview Mirror Schematics

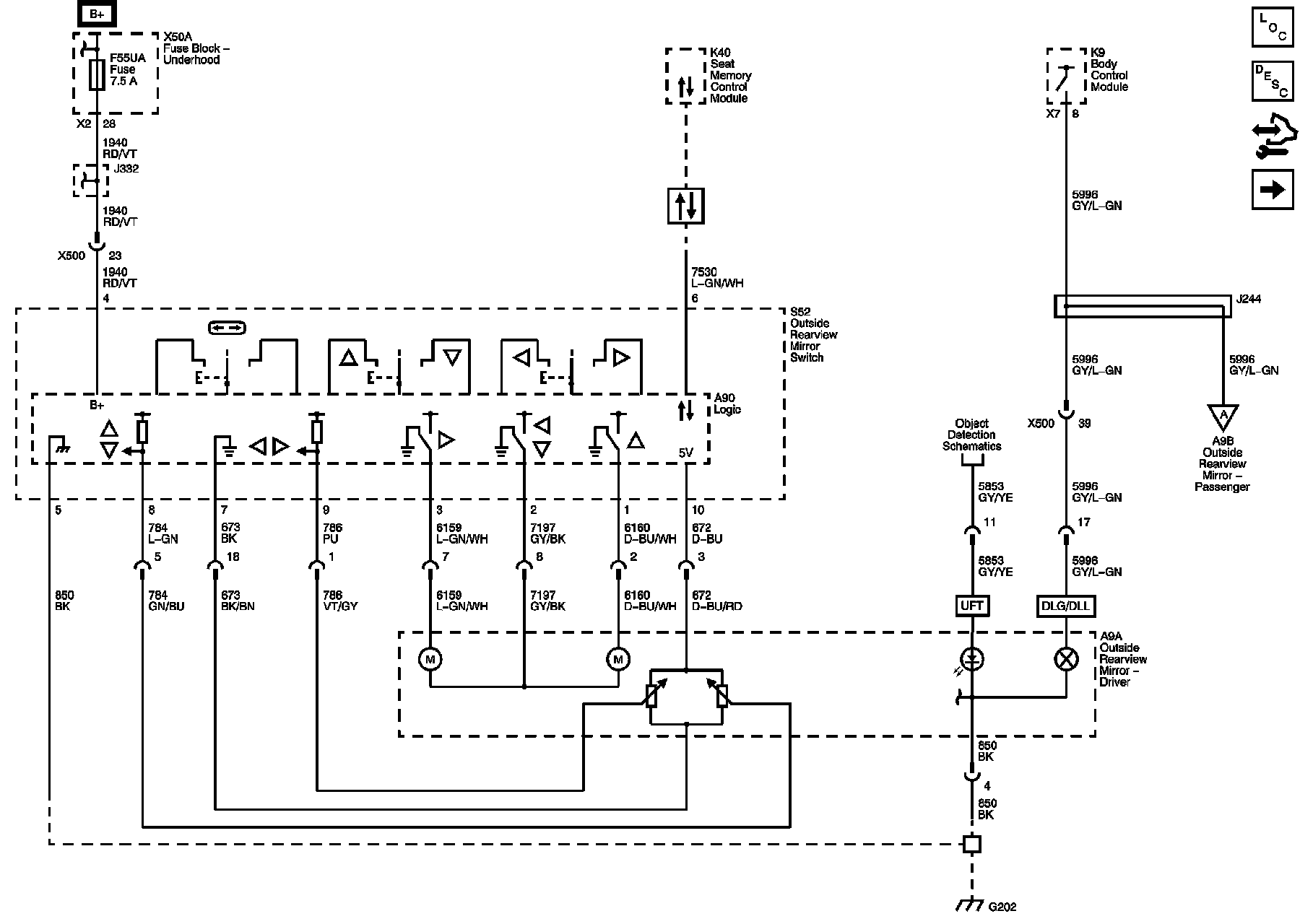

Driver Position (A45)

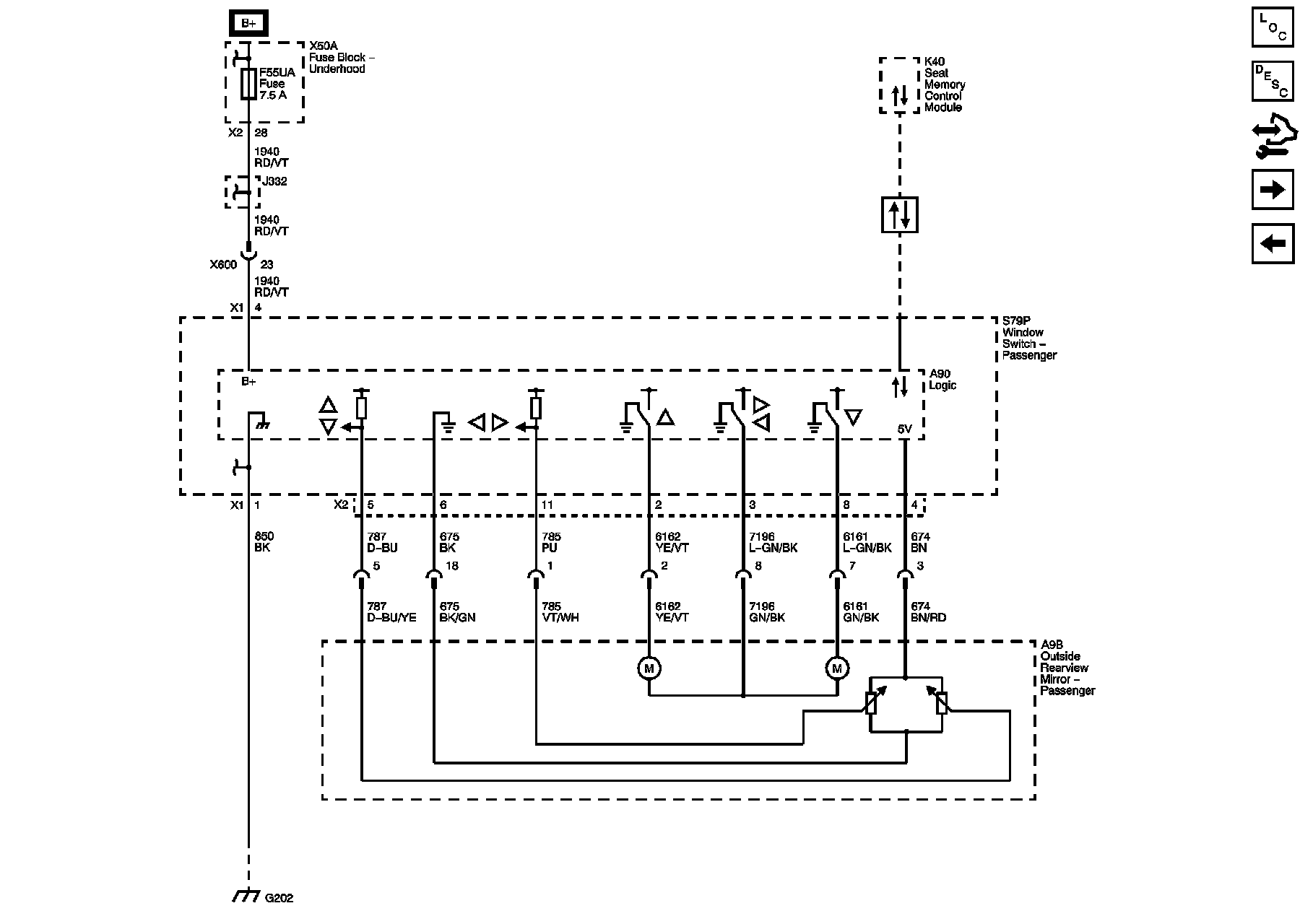

Passenger Position (A45)





Driver and Passenger Position (without A45)

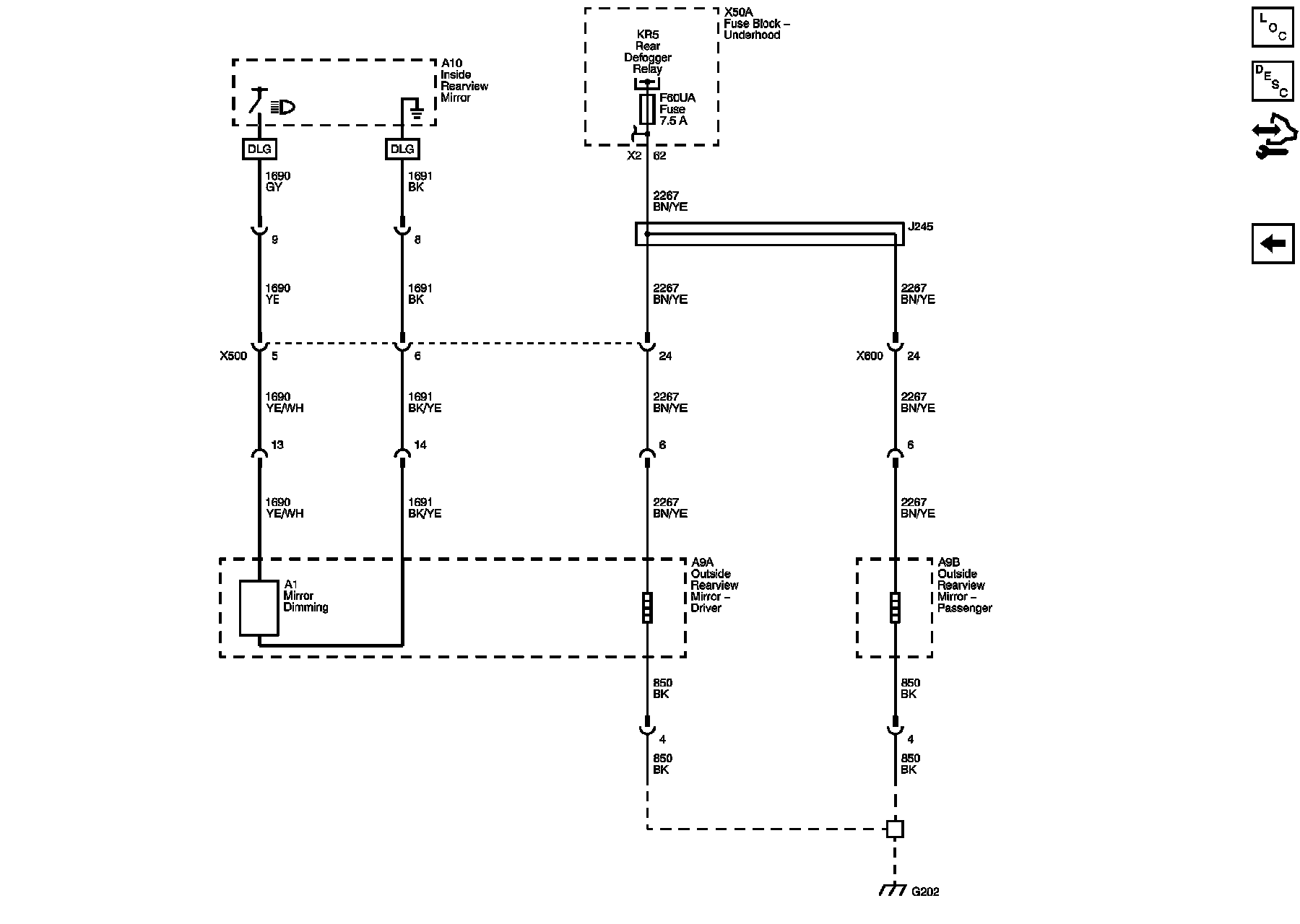

Heated Mirrors and Automatic Day/Night Mirror (DLG)
