B369B
DTC B369B
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptors
DTC B369B 02
- Sunroof Sunshade Position Select Switch Circuit Short to Ground
DTC B369B 05
- Sunroof Sunshade Position Select Switch Circuit High Voltage/Open
DTC B369B 59
- Sunroof Sunshade Position Select Switch Circuit Protection Time-Out

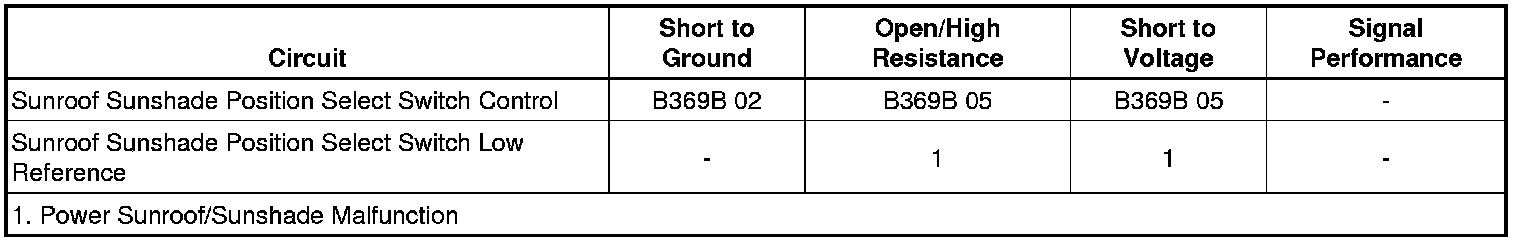

Diagnostic Fault Information
Circuit/System Description
The sunshade control switch is connected directly to the controller and provide detent positions for open, express open, off, close, and express close. The control switch completes the circuit between two signals provided by the control module, a reference ground Input and a pull-up voltage provided by the analog to digital switch input. The control switch places a different resistor ladder network in the circuit depending on the function selected. The controllers analog to digital switch input reads the resulting voltage range and determines the function.
Conditions for Running the DTC
The ignition is ON.
Conditions for Setting the DTC
B369B 02
The sunshade module has detected and reported via serial data that the sunroof sunshade position select switch circuit is shorted to ground.
B369B 05
The sunshade module has detected and reported via serial data that the sunroof sunshade position select switch circuit is open or shorted to voltage.
B369B 59
The sunshade module has detected and reported via serial data that the sunroof sunshade position select switch has been the same active position for 20 s after the glass has stopped moving in the requested direction due to reaching the end of the allowable motion.
Action Taken When the DTC Sets
DTC B369B is stored in the body control module (BCM) memory.
Conditions for Clearing the DTC
The BCM no longer detects a malfunction in the sunroof sunshade position select switch signal circuit.
Reference Information
Schematic Reference
Sunroof Schematics [1][2]Electrical Diagrams
Connector End View Reference
Component Connector End Views Fuel Pump and Level Sensor Assembly
Description and Operation
Sunroof Description and Operation (Spoiler System) Description and Operation
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Testing
Note: Because of the accessibility of the sunshade switch, perform the component testing before beginning the Circuit/System Testing.
1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the S90 Sunroof Sunshade Switch. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 10 ohms between the low reference circuit terminal 1 and ground.
• If 10 ohms or greater
1. Ignition OFF, disconnect the harness connector at the K62 Sunroof Sunshade Motor Module.
2. Test for less than 2 ohms in the low reference circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms , test or replace the K62 Sunroof Sunshade Motor Module.
• If less than 10 ohms
3. Ignition ON.
4. Test for 4.5-5.5 V between the 5 V reference circuit terminal 4 and ground.
• If less than 4.5 V
1. Ignition OFF, disconnect the harness connector at the K62 Sunroof Sunshade Motor Module.
2. Test for infinite resistance between the 5 V reference circuit and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance
3. Test for less than 2 ohms in the 5 V reference circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K62 Sunroof Sunshade Motor Module.
• If greater than 5.5 V
1. Ignition OFF, disconnect the harness connector at the K62 Sunroof Sunshade Motor Module, ignition ON.
2. Test for less than 1 V between the 5 V reference circuit and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V, replace the K62 Sunroof Sunshade Motor Module.
• If between 4.5-5.5 V
5. Test or replace the S90 Sunroof Sunshade Switch.
Component Testing
Static Test
1. Ignition OFF, disconnect the harness connector at the S90 Sunroof Sunshade Switch.
2. Test for 3.3-4.0k ohms between the control terminal 4 and the low reference terminal 1.
• If not between 3.3-4.0k ohms
Replace the S90 Sunroof Sunshade Switch.
• If between 3.3-4.0k ohms
3. Test for 390-480 ohms between the control terminal 4 and the low reference terminal 1 while pressing the open switch while pressing the open switch.
• If not between 390-480 ohms
Replace the S90 Sunroof Sunshade Switch.
• If between 390-480 ohms
4. Test for 88-107 ohms between the control terminal 4 and the low reference terminal 1 while pressing the express open switch.
• If not between 88-107 ohms
Replace the S90 Sunroof Sunshade Switch.
• If between 88-107 ohms
5. Test for 1.6-2.0k ohms between the control terminal 4 and the low reference terminal 1 while pressing the close switch.
• If not between 1.6-2.0k ohms
Replace the S90 Sunroof Sunshade Switch.
• If between 1.6-2.0k ohms
6. Test for 840-1030 ohms between the control terminal 4 and the low reference terminal 1 while pressing the express close switch.
• If not between 840-1030 ohms
Replace the S90 Sunroof Sunshade Switch.
• If between 840-1030 ohms
7. All OK
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
* Sunroof Switch Replacement Service and Repair
* Sunroof Sunshade Motor Replacement Sunroof Sunshade Motor Replacement
* Control Module References Control Module References for sunshade motor/actuator replacement, setup and programming
