29. Low and Reverse and 1-2-3-4 Clutch Housing Assemble




Low and Reverse and 1-2-3-4 Clutch Housing Assemble

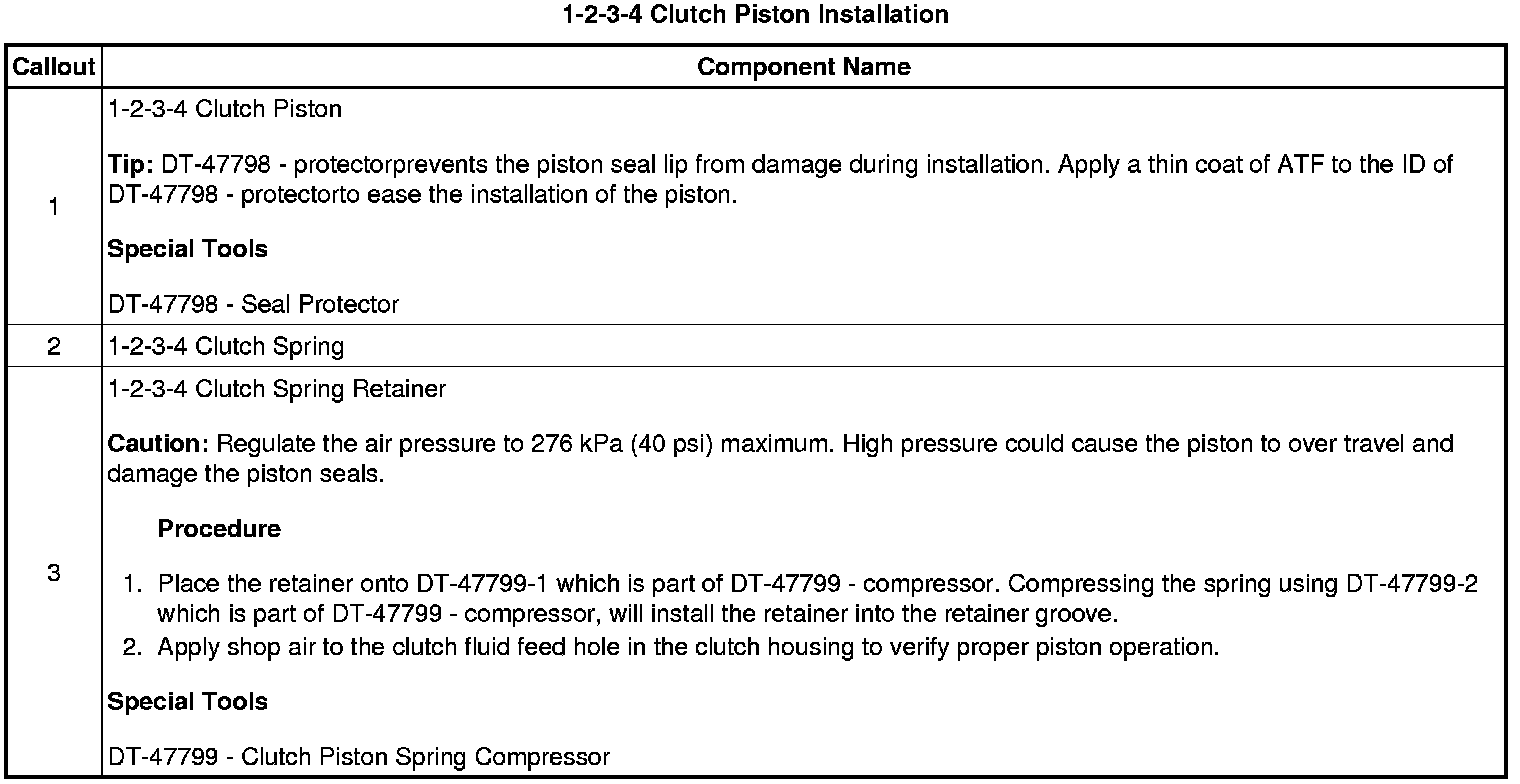

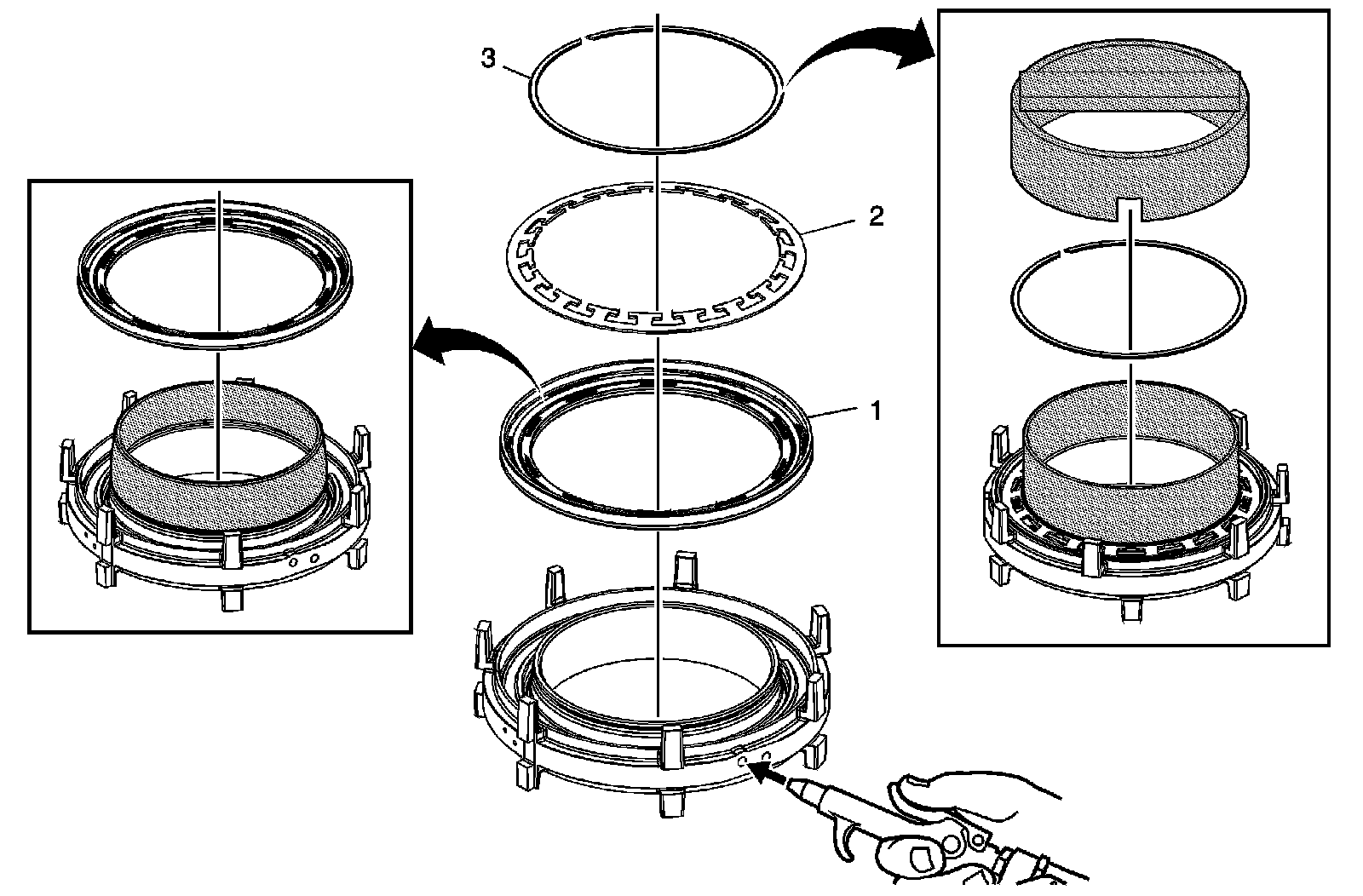

1-2-3-4 Clutch Piston Installation

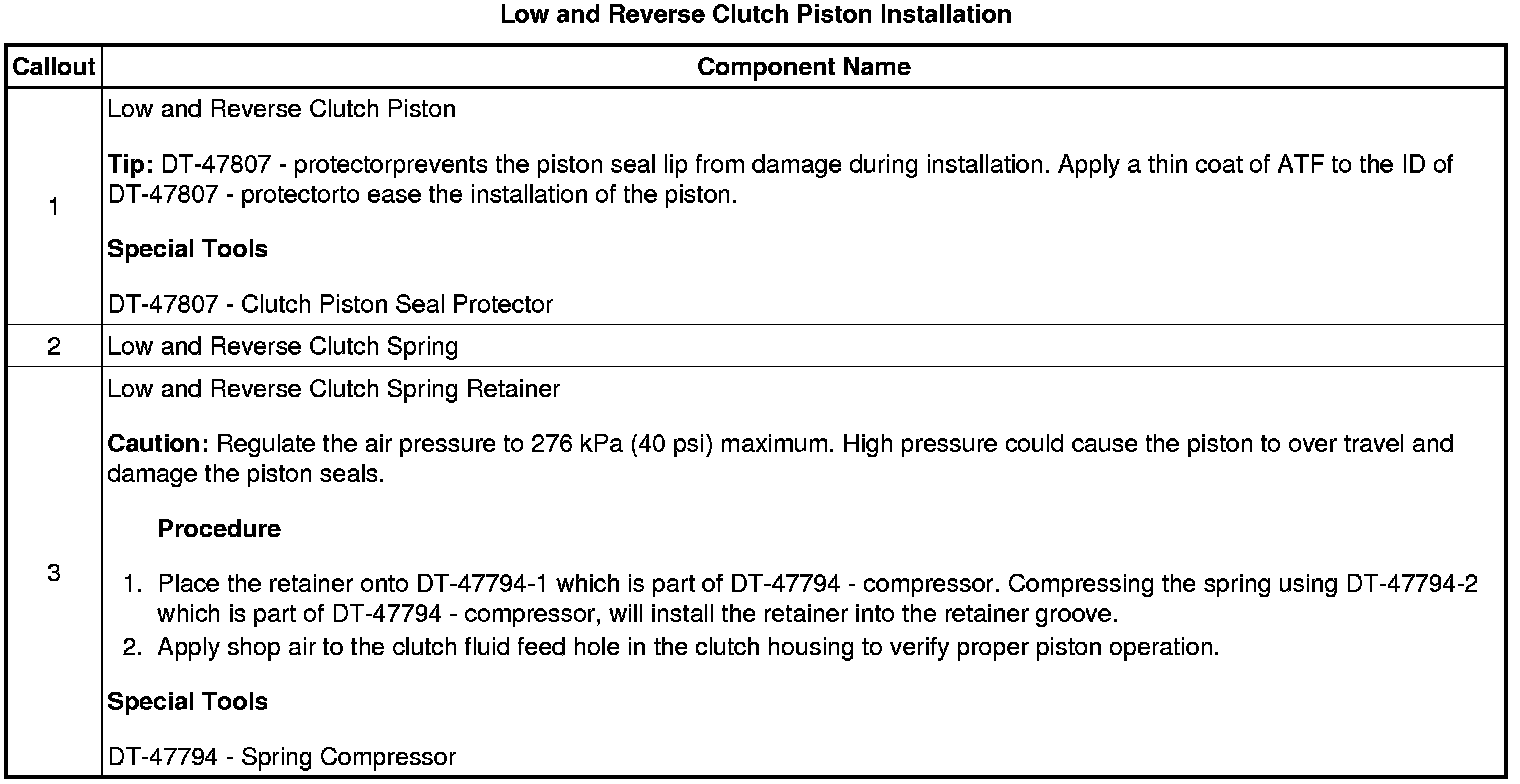

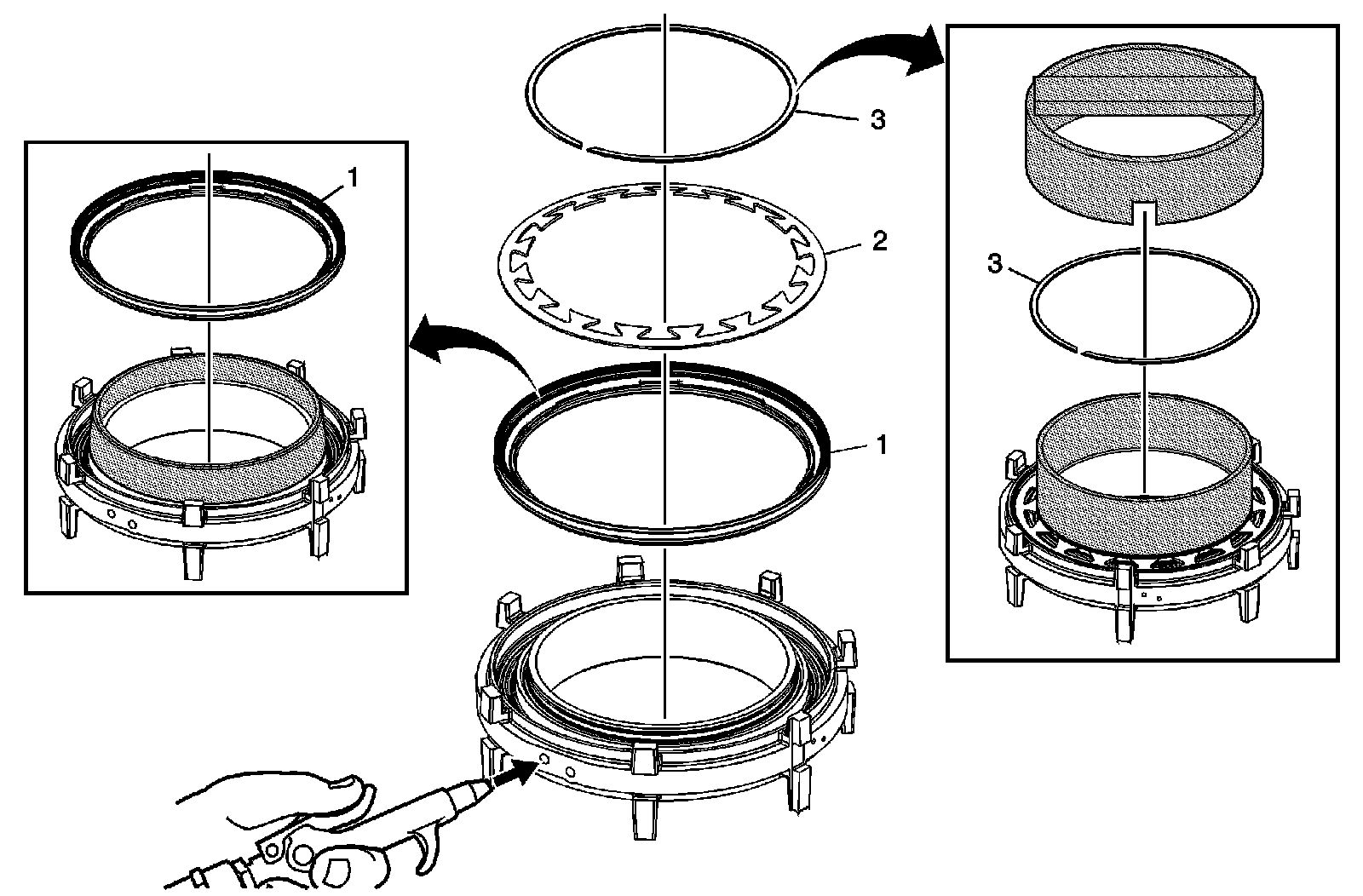

Low and Reverse Clutch Piston Installation
