X510

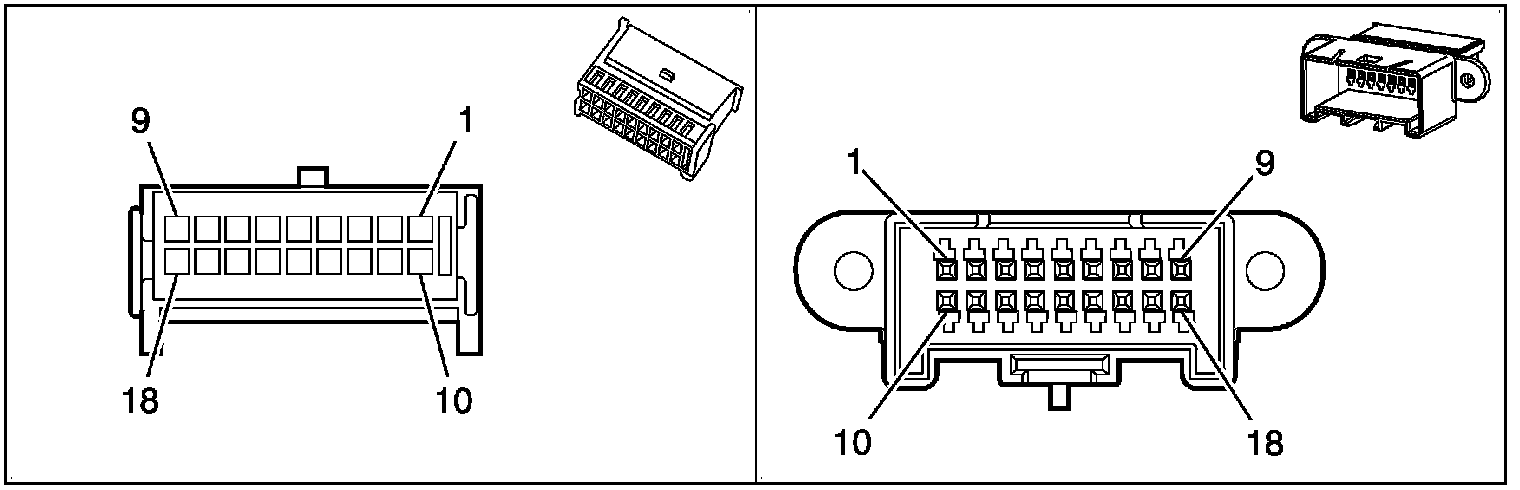

Inline Harness Connector End Views

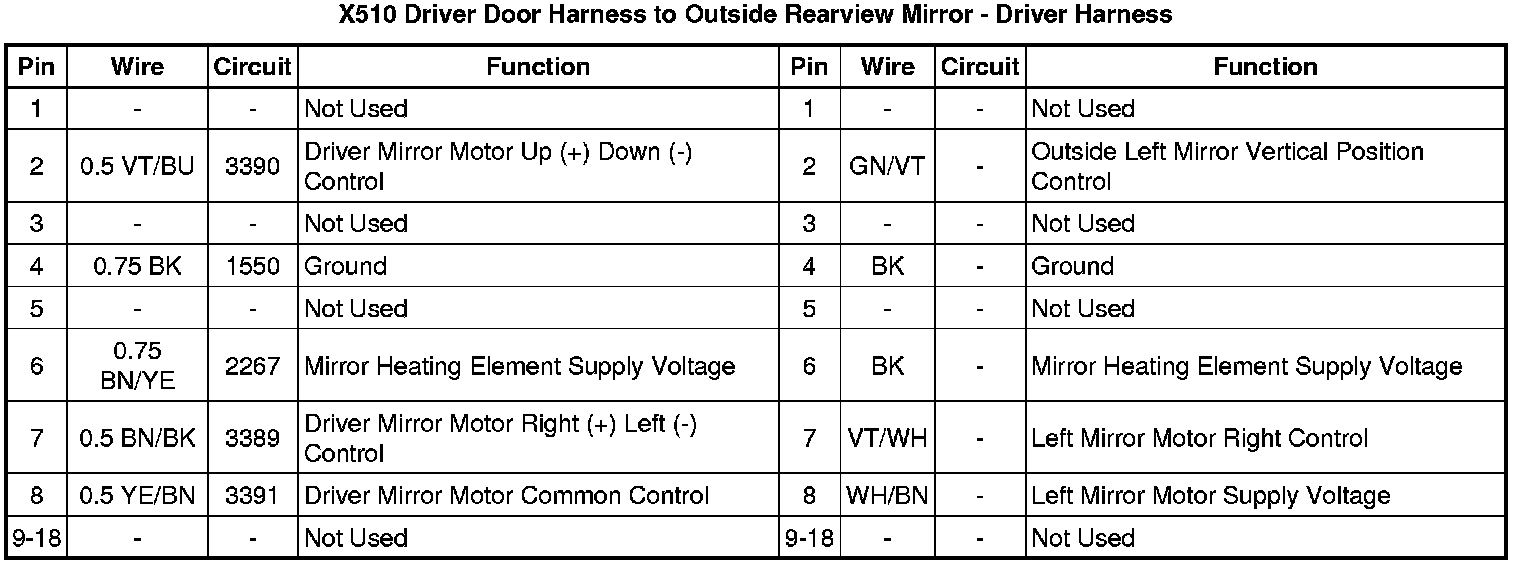

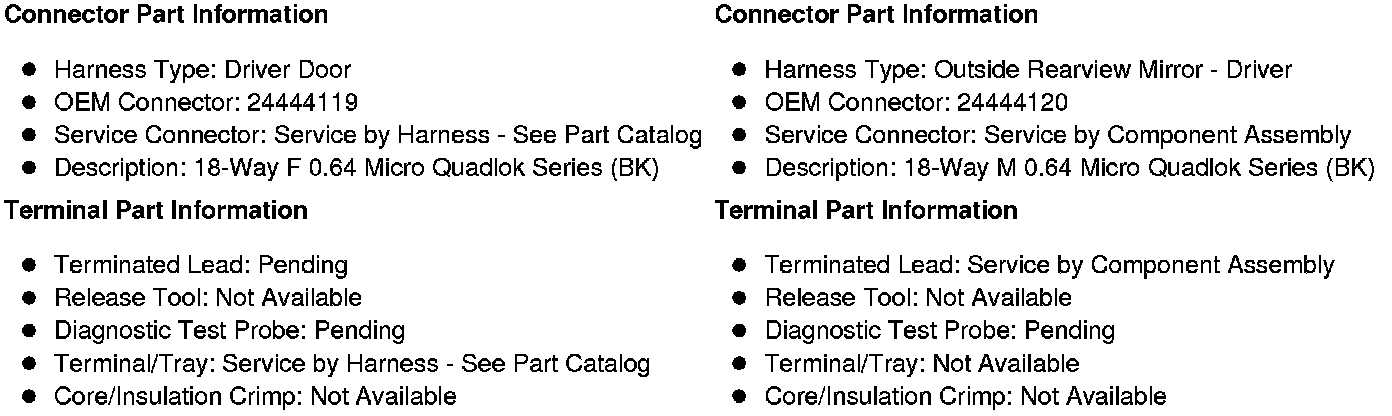

X510 Driver Door Harness to Outside Rearview Mirror - Driver Harness
