UD7 With HP6




Inline Harness Connector End Views

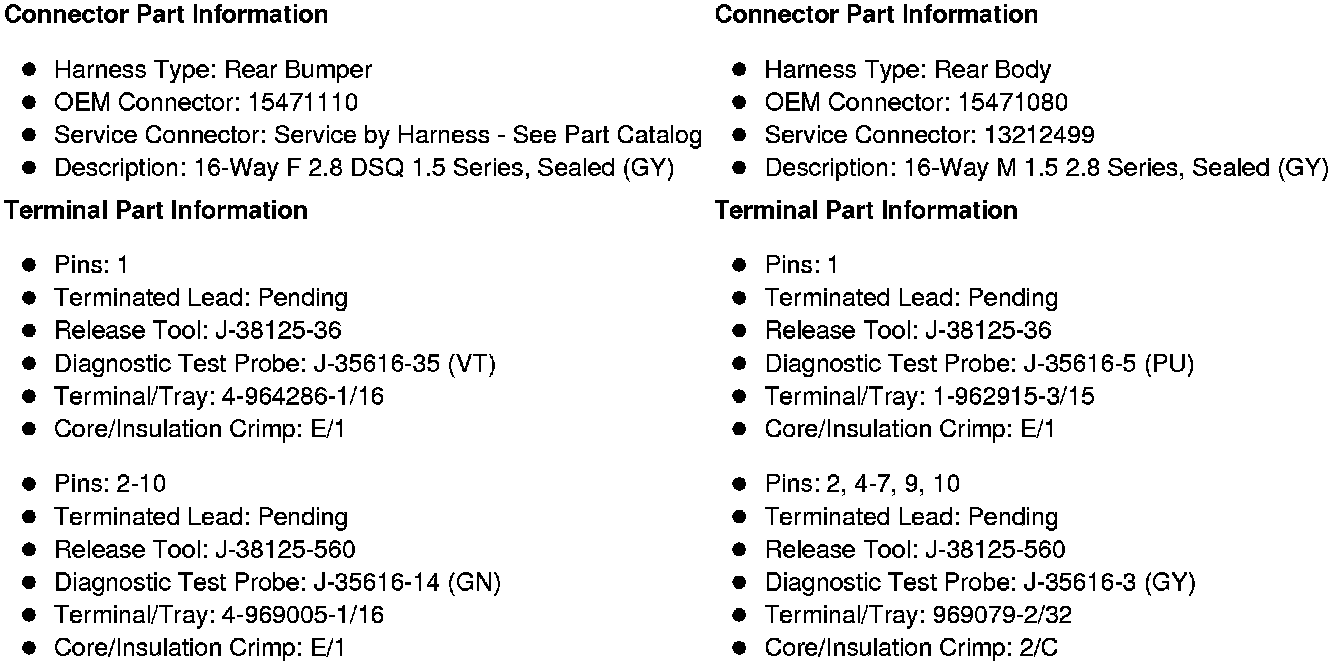

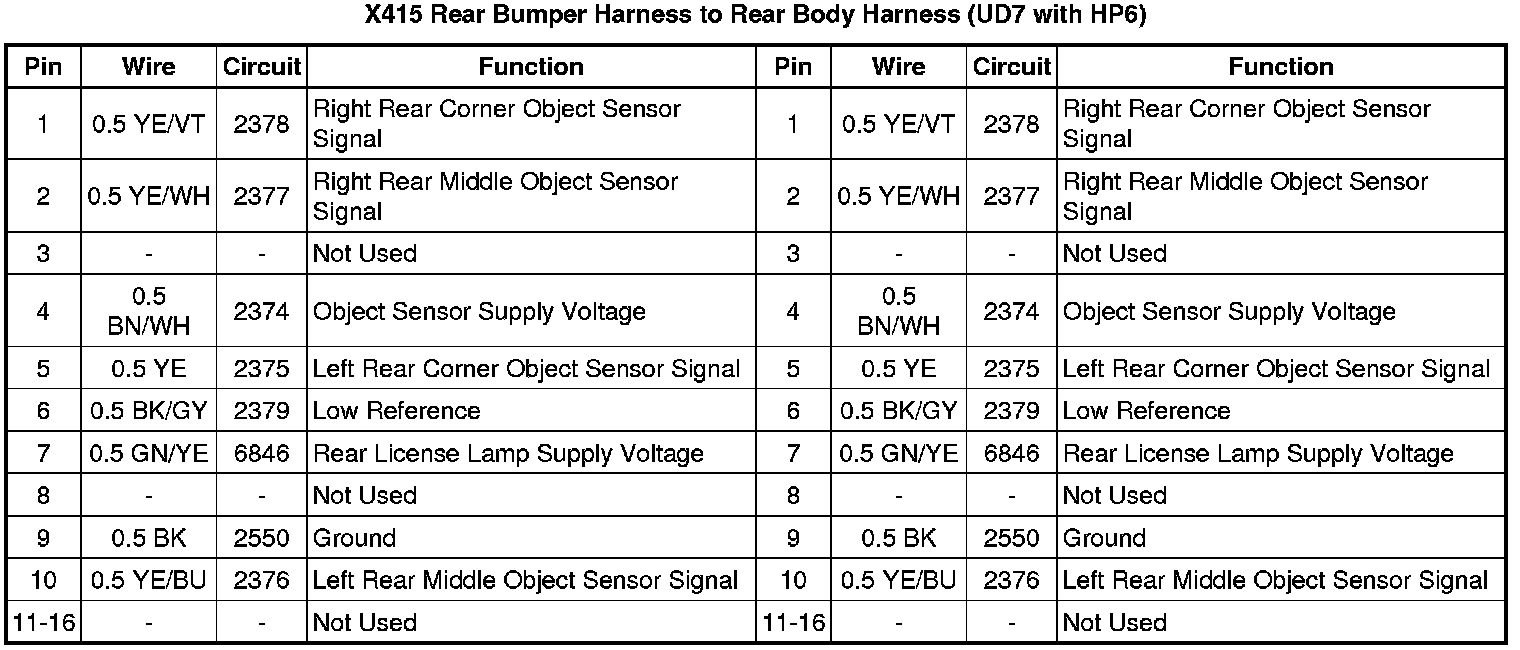

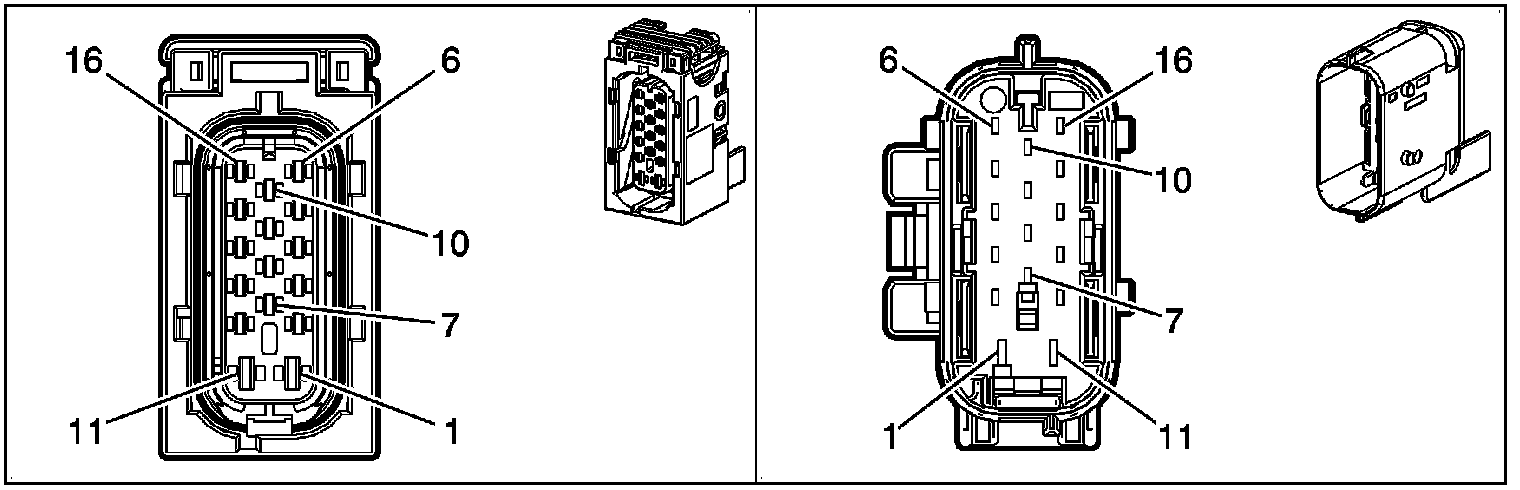

X415 Rear Bumper Harness to Rear Body Harness (UD7 with HP6)
