Home >> Buick >> 2012 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X300 - X399 >> X380

X380

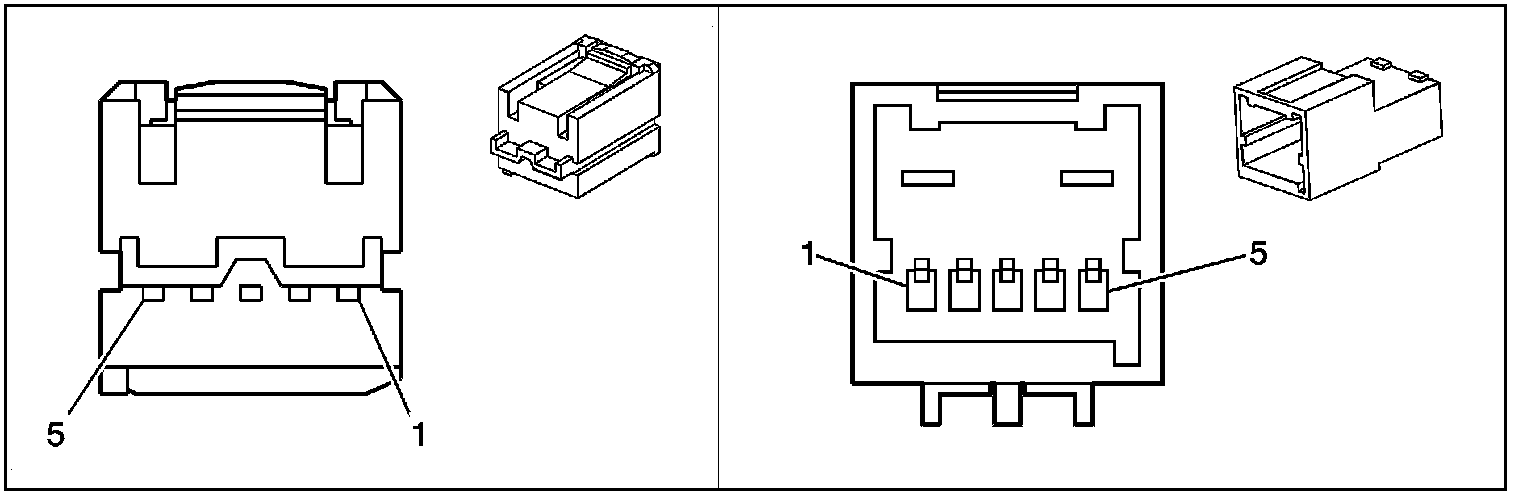

Inline Harness Connector End Views

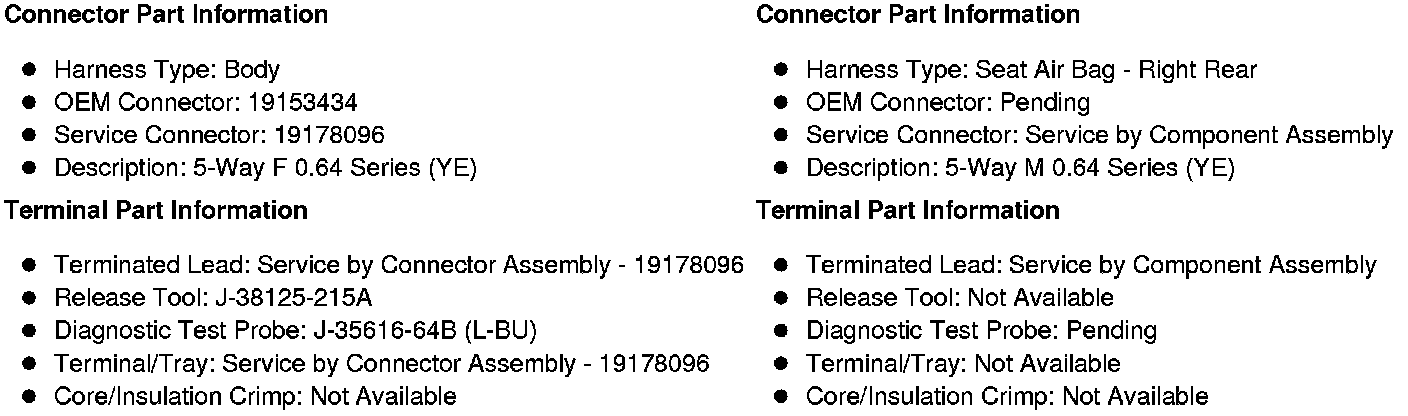

X380 Body Harness to Seat Air Bag - Right Rear Harness (AW7)
