X141

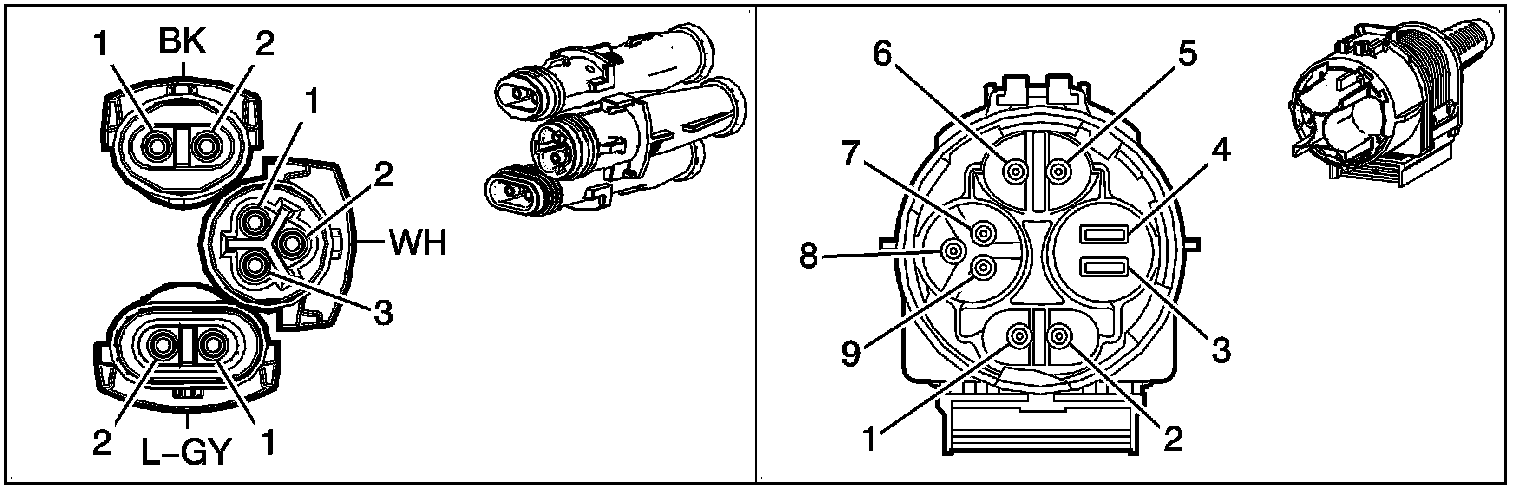

Inline Harness Connector End Views

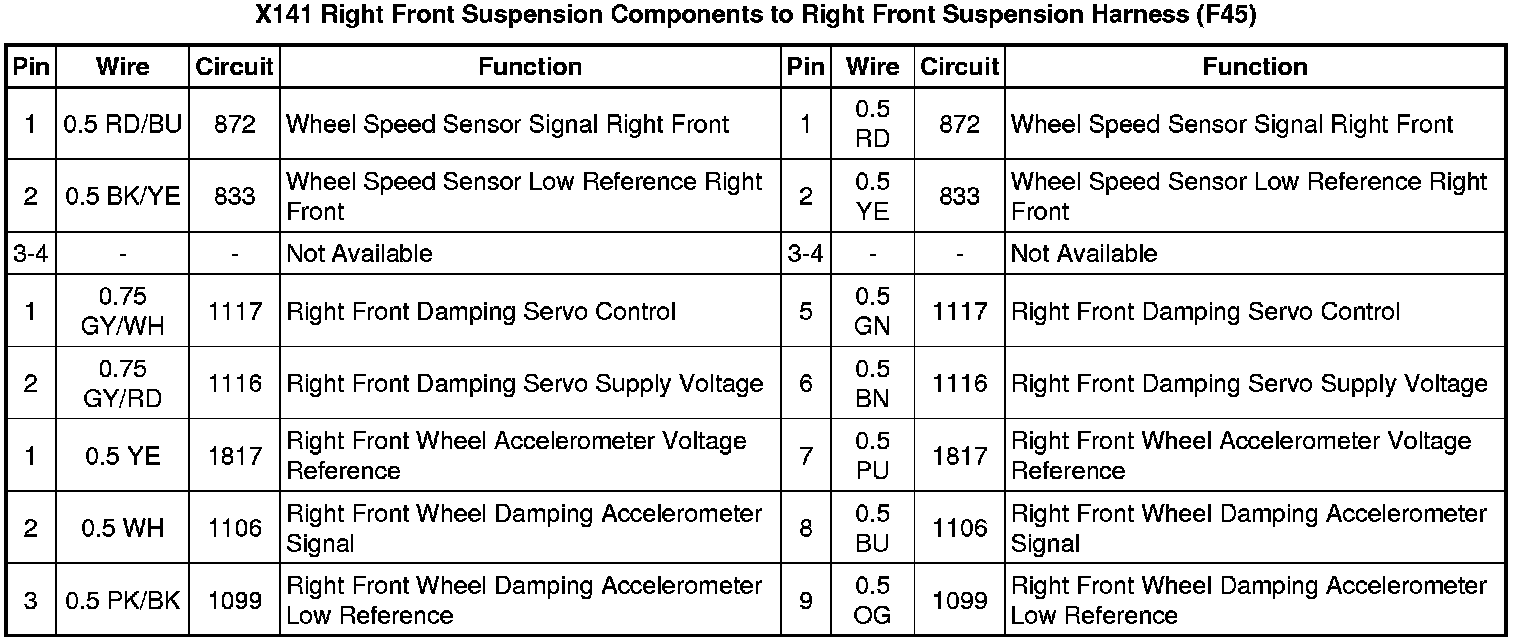

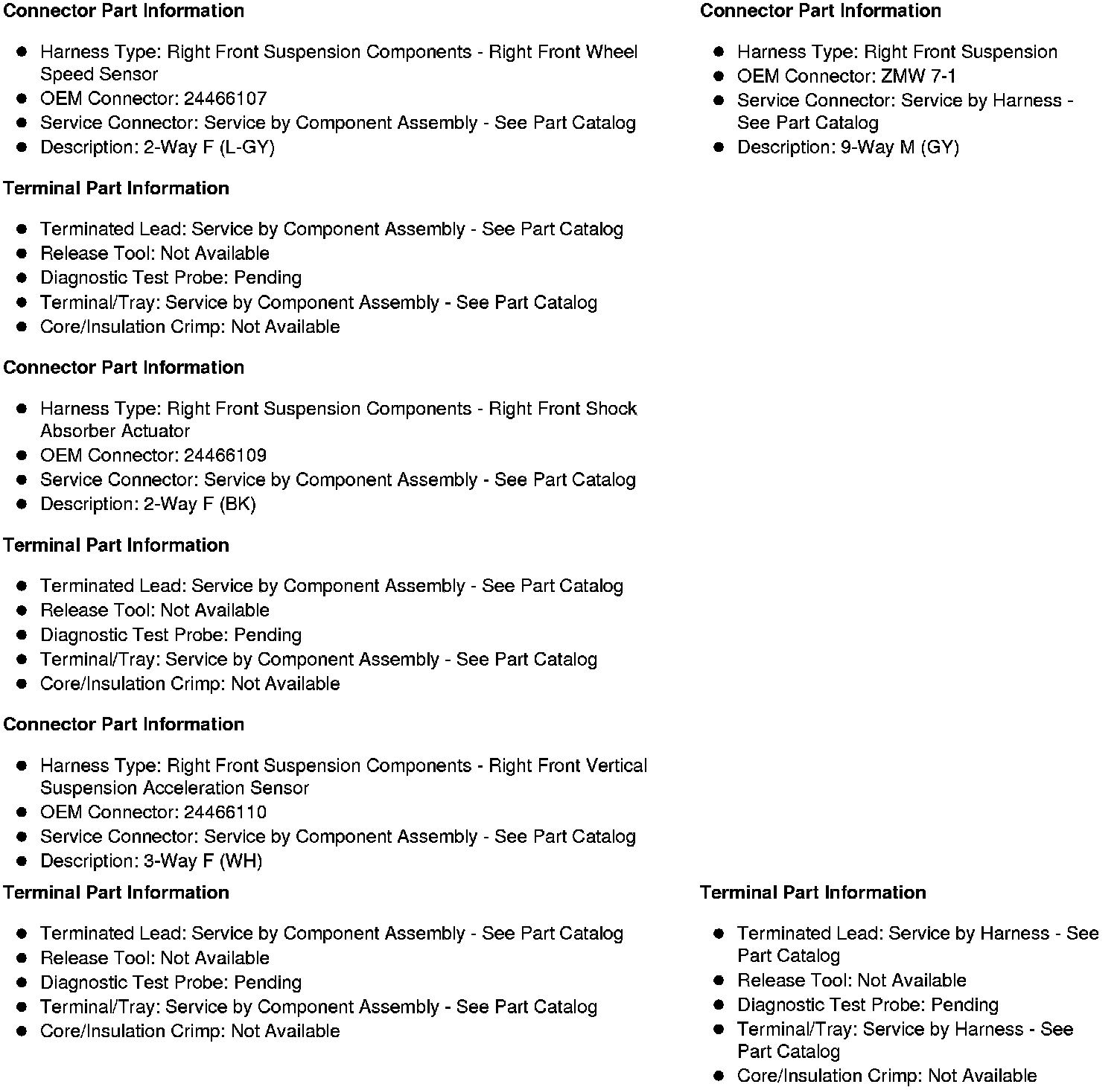

X141 Right Front Suspension Components to Right Front Suspension Harness (F45)
