X131

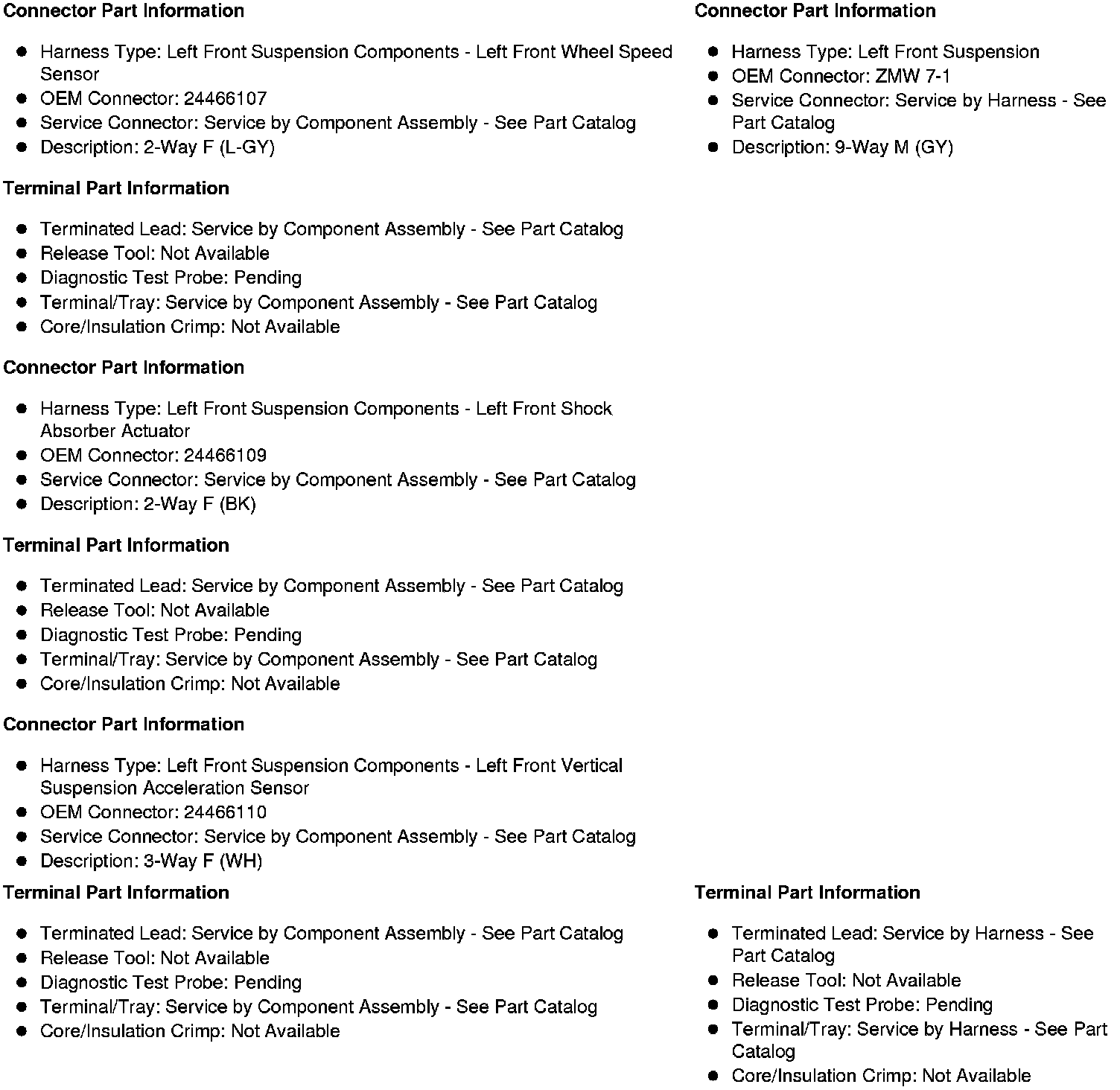

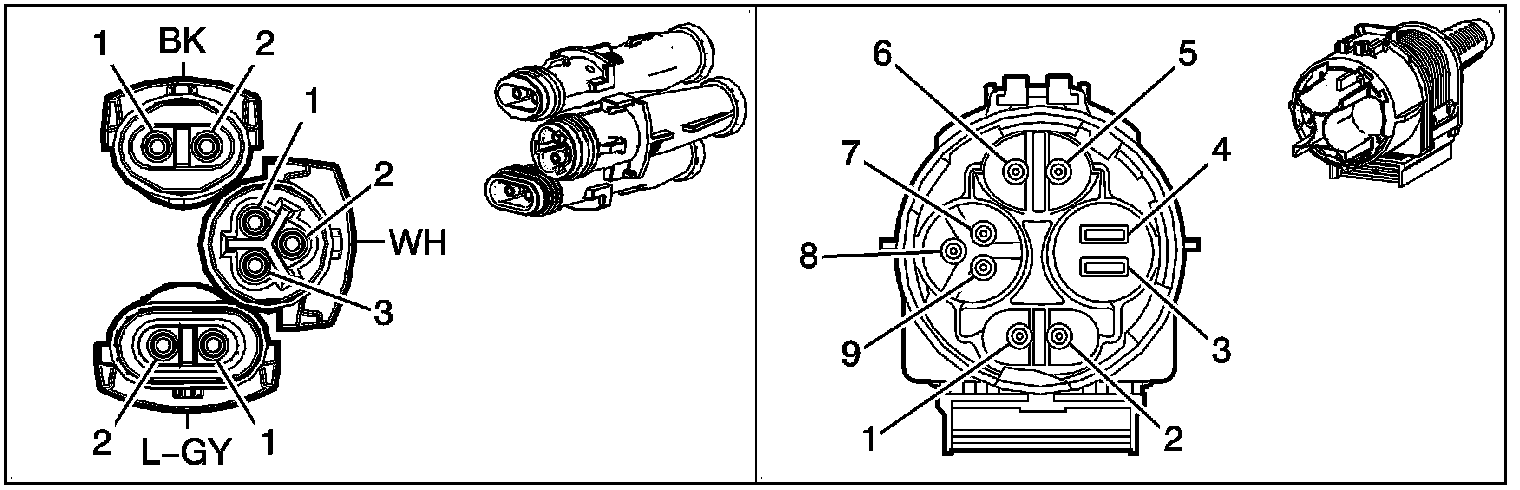

Inline Harness Connector End Views

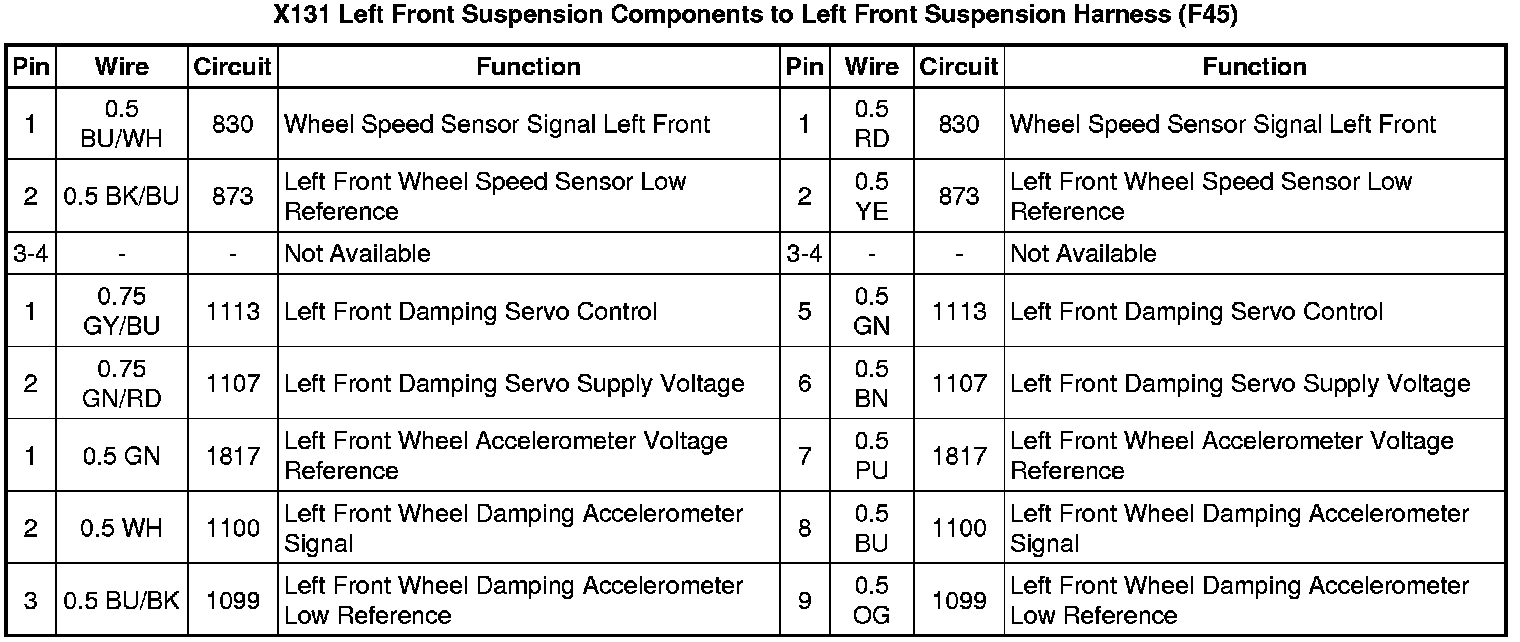

X131 Left Front Suspension Components to Left Front Suspension Harness (F45)
