X105

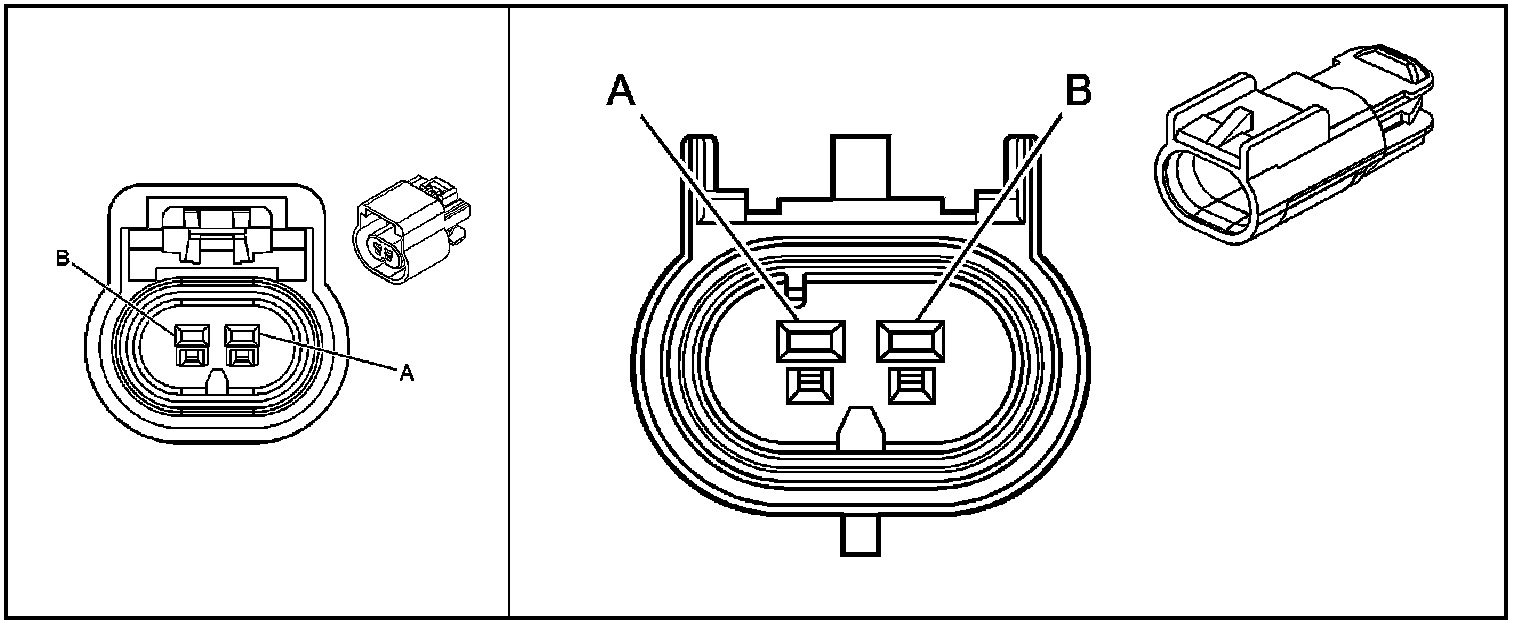

Inline Harness Connector End Views

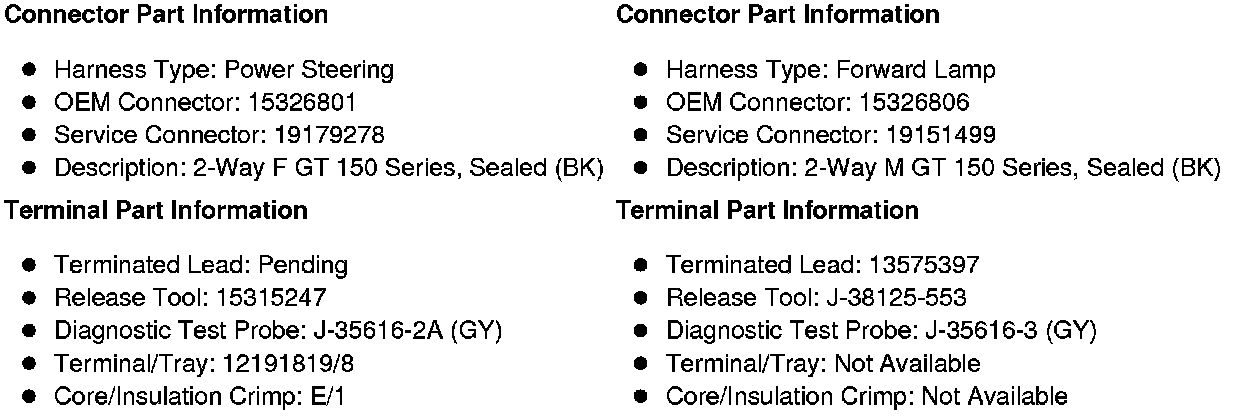

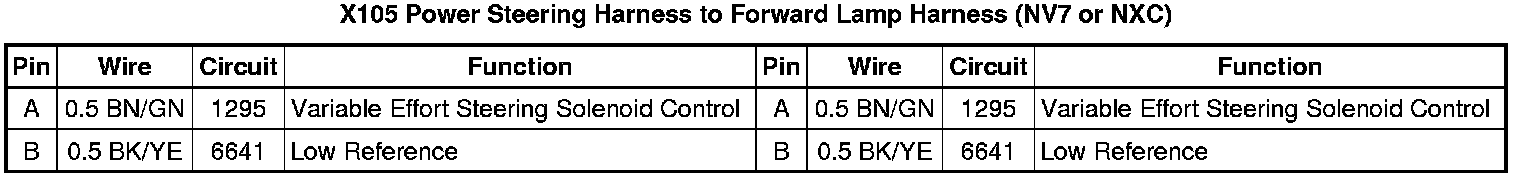

X105 Power Steering Harness to Forward Lamp Harness (NV7 or NXC)
