Turn Signal Repeater Lamp - Right

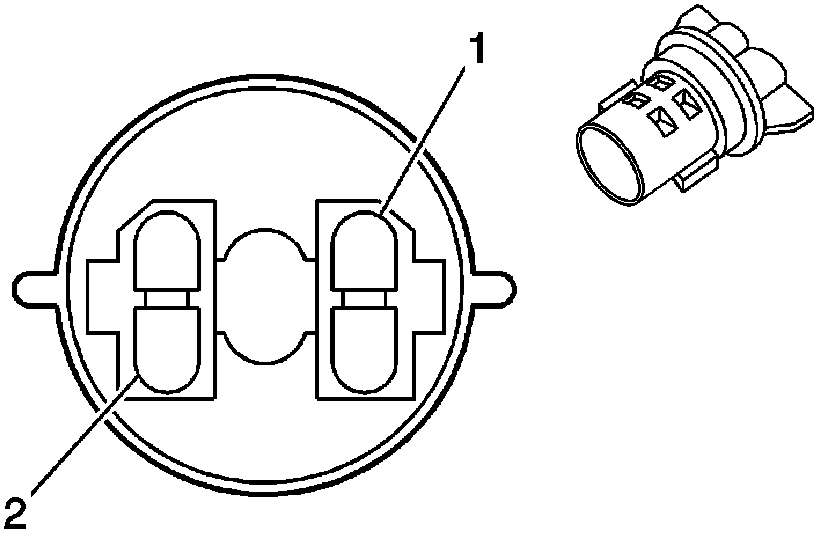

Component Connector End Views

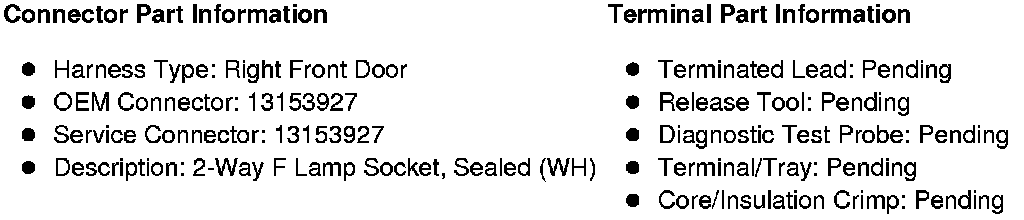

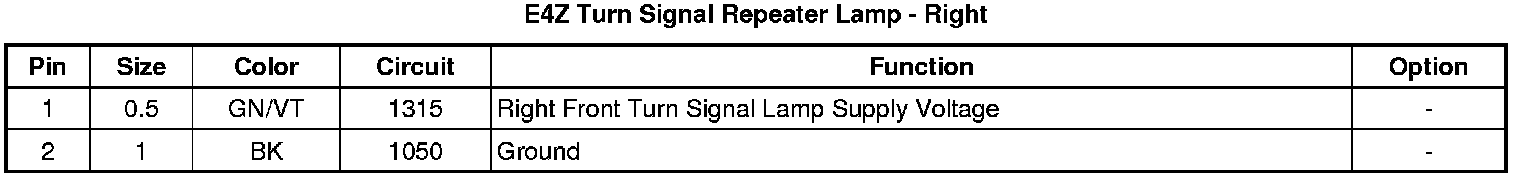

E4Z Turn Signal Repeater Lamp - Right
