Transmission Shift Lever Position Indicator (MDK, MH8, MHH or MHK)

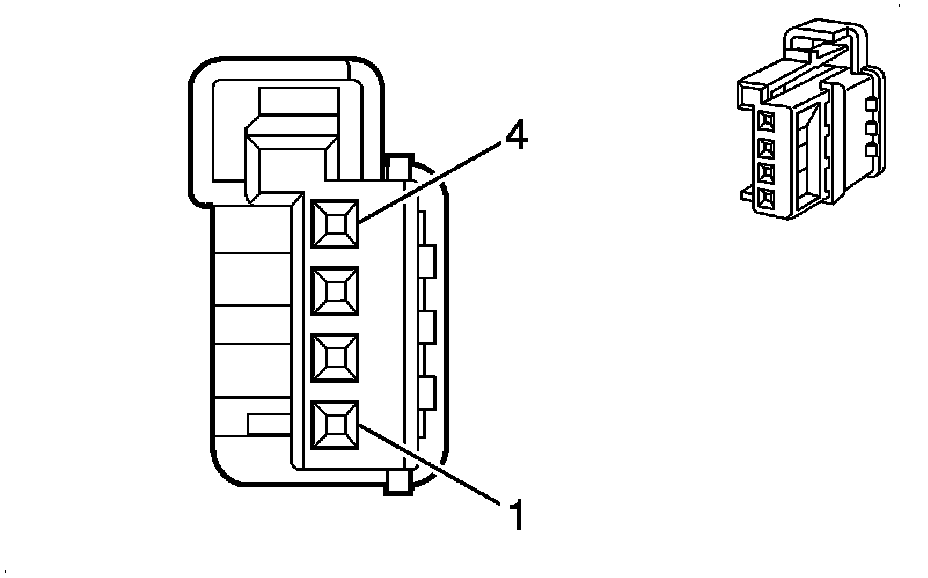

Component Connector End Views

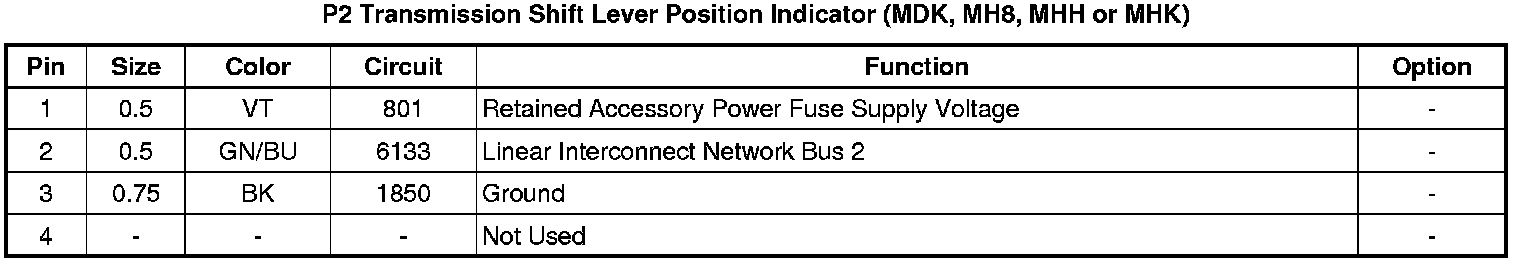

P2 Transmission Shift Lever Position Indicator (MDK, MH8, MHH or MHK)
