Transmission Manual Shift Switch X1 (MDK, MH8, MHH or MHK)
Transmission Manual Shift Switch X1 (MDK, MH8, MHH or MHK)
Component Connector End Views

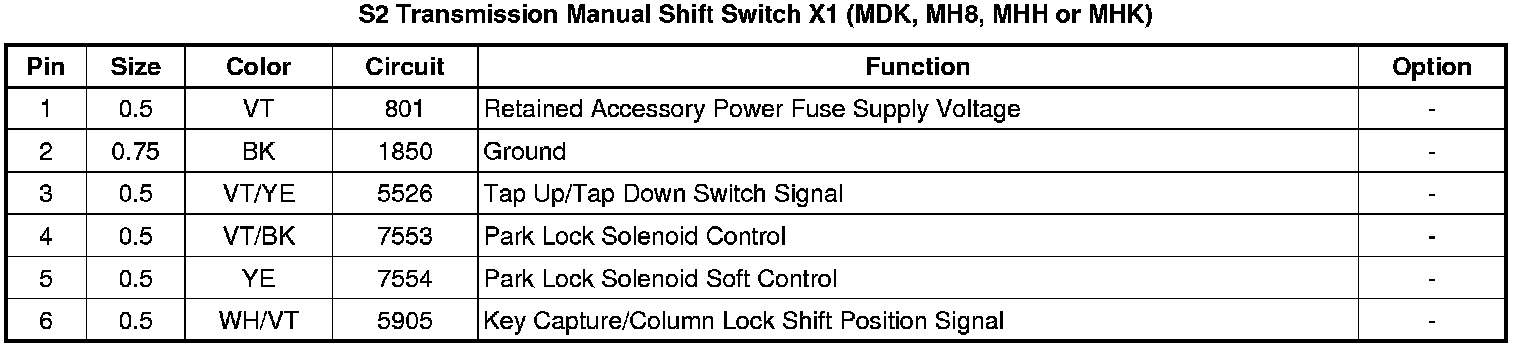

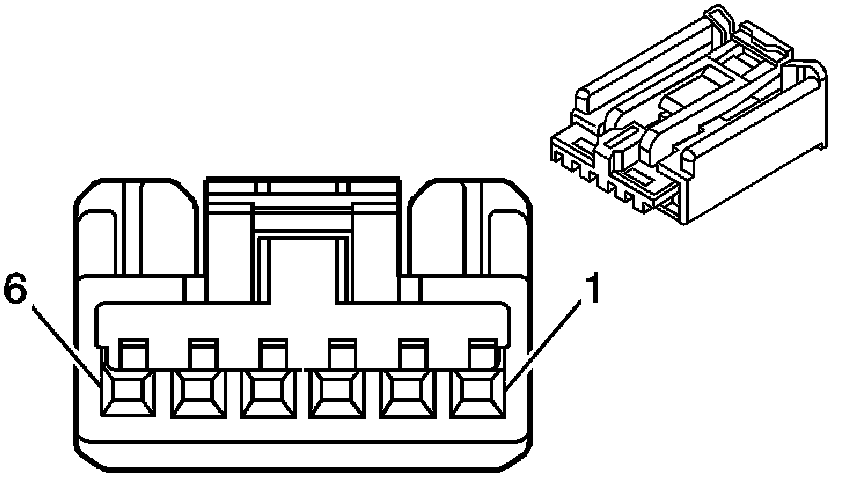

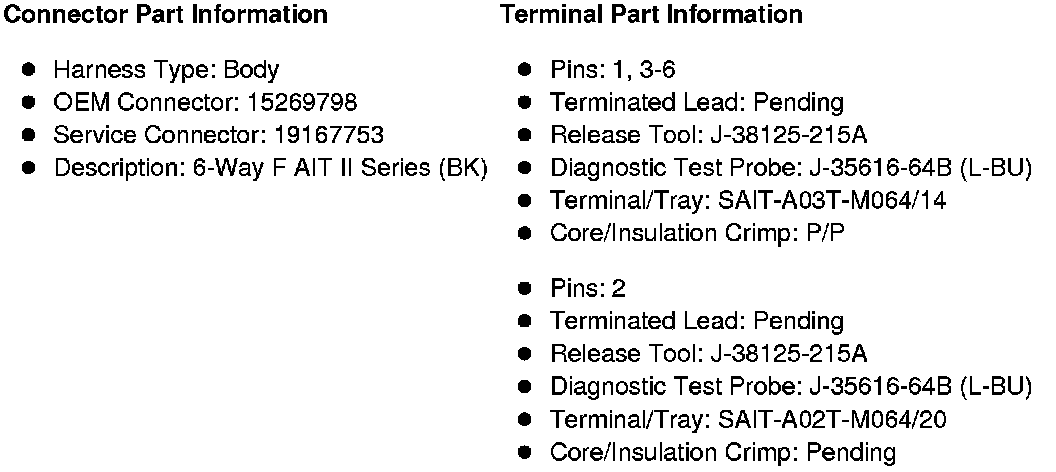

S2
Transmission
Manual Shift Switch X1 (MDK, MH8, MHH or MHK)
