Secondary Air Injection Pump (NU6)

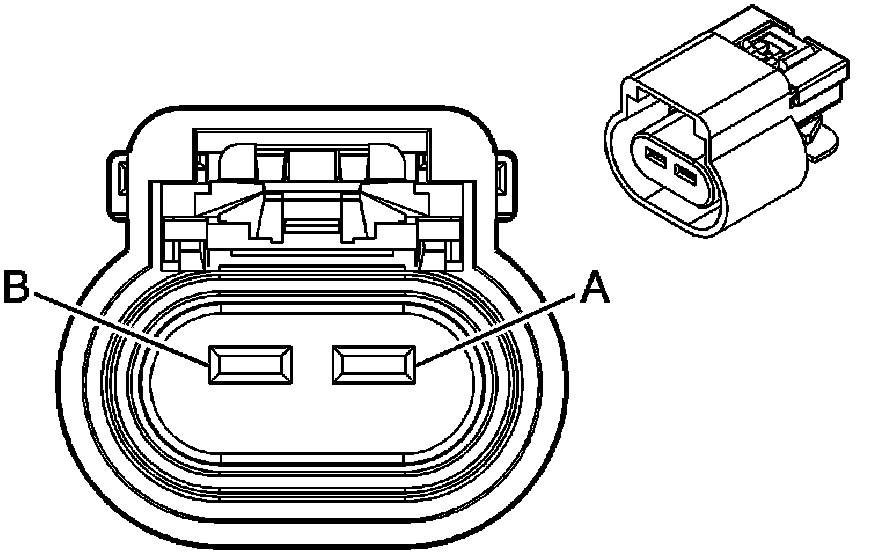

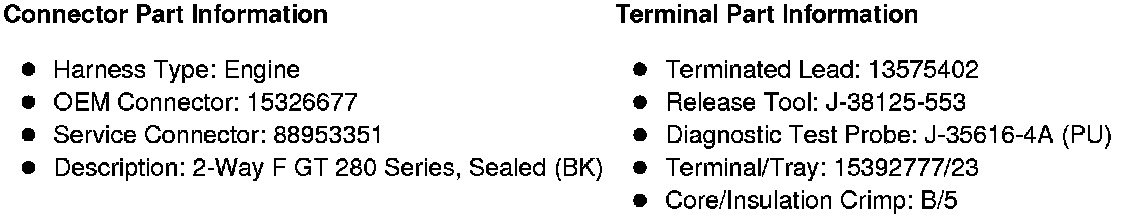

Component Connector End Views

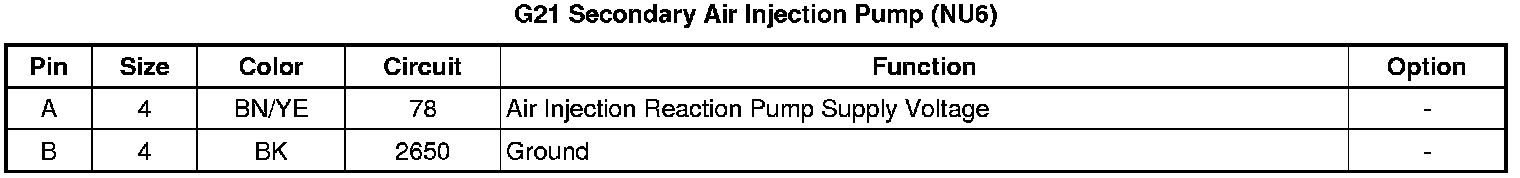

G21 Secondary Air Injection Pump (NU6)
