Seat Heating Element - Passenger Back (KA1)

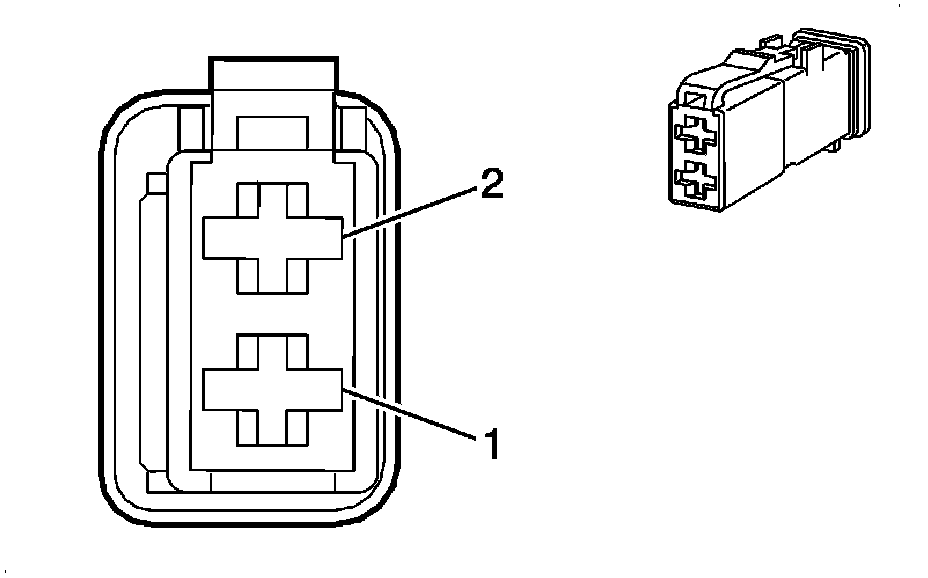

Component Connector End Views

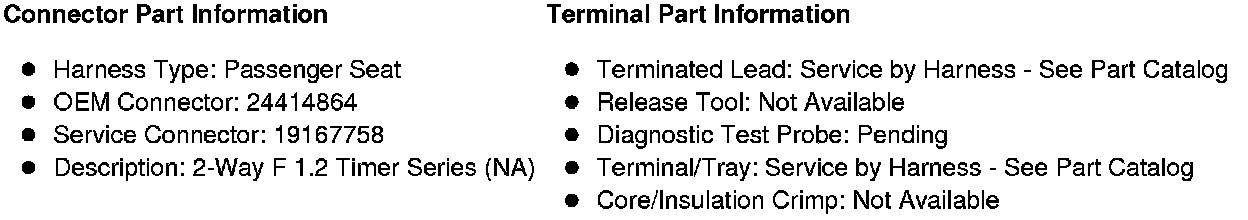

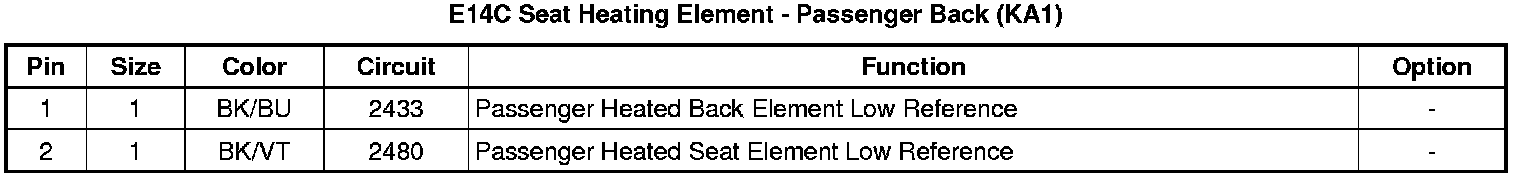

E14C Seat Heating Element - Passenger Back (KA1)
