Seat Belt Anchor Pretensioner - Driver

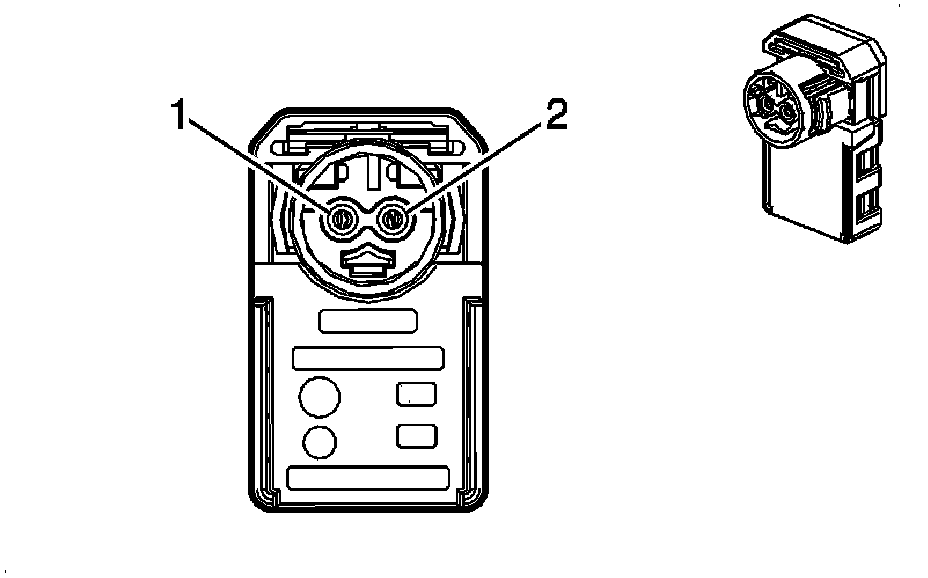

Component Connector End Views

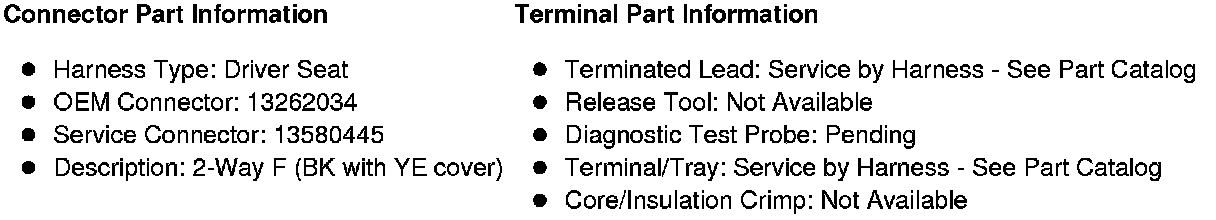

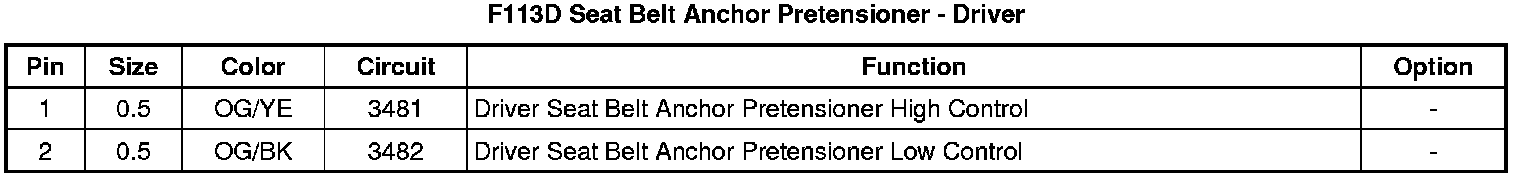

F113D Seat Belt Anchor Pretensioner - Driver
