Passenger Instrument Panel Air Bag X2

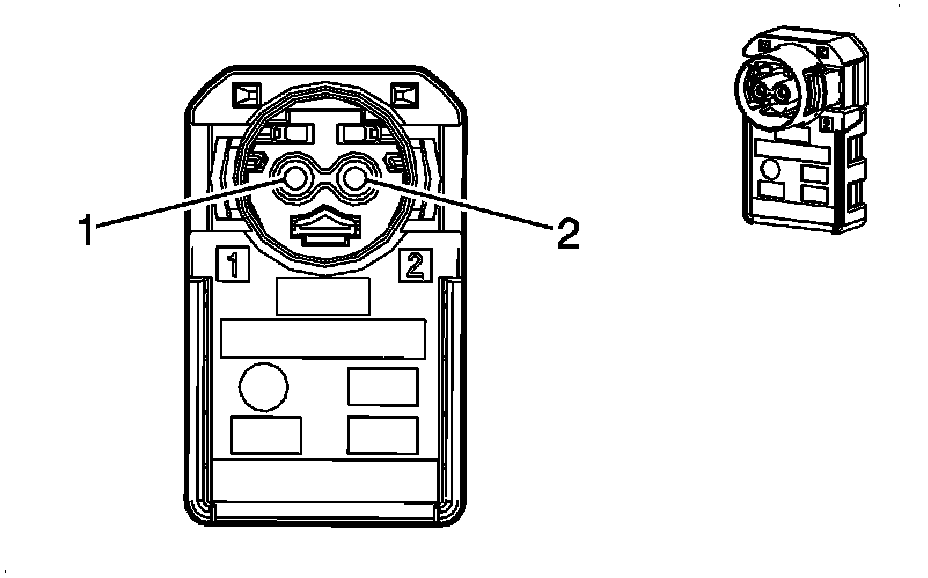

Component Connector End Views

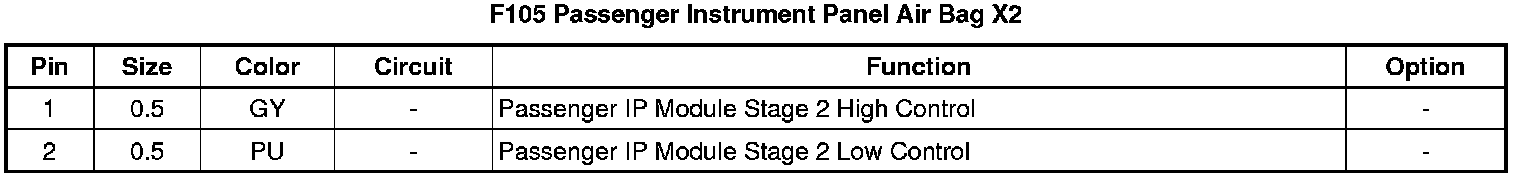

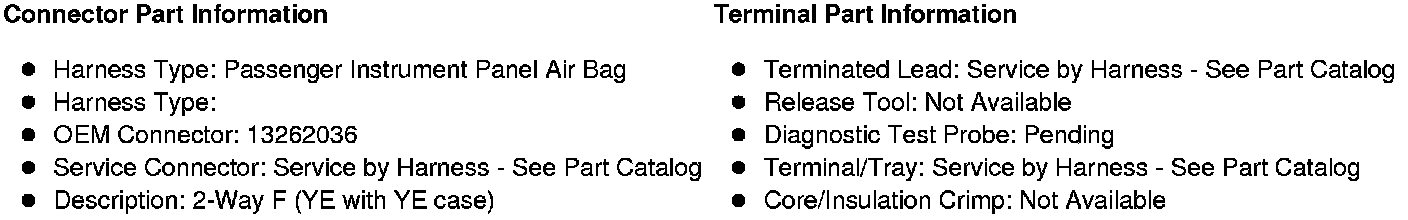

F105 Passenger Instrument Panel Air Bag X2
