Key Capture Solenoid Actuator (MDK, MH8, MHH or MHK without BTM)

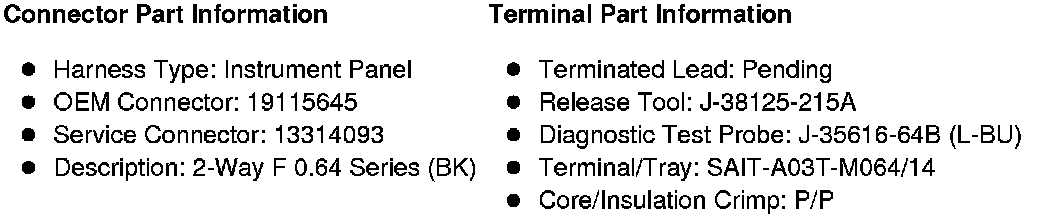

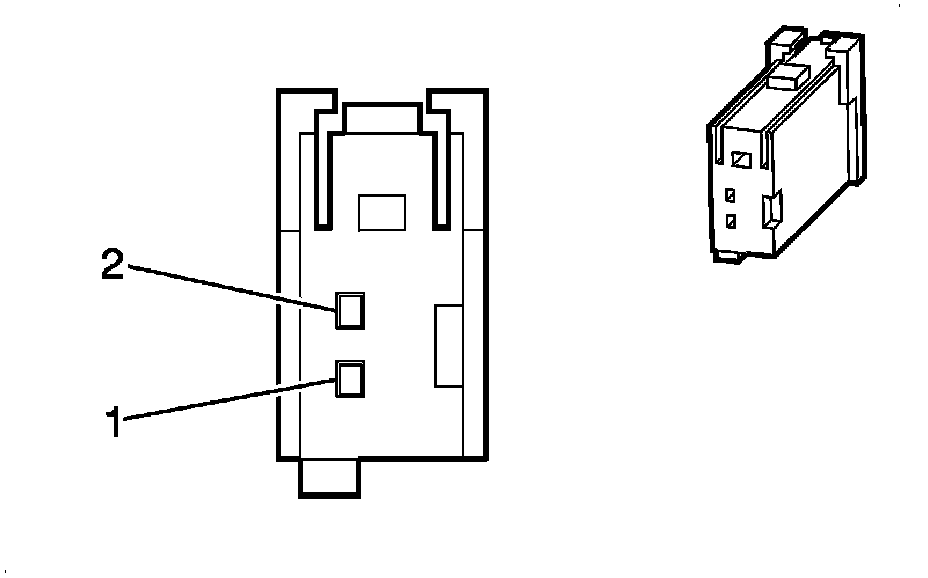

Component Connector End Views

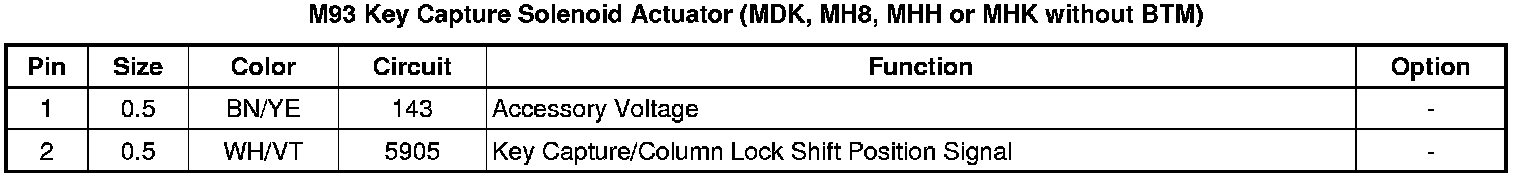

M93 Key Capture Solenoid Actuator (MDK, MH8, MHH or MHK without BTM)
