Home >> Buick >> 2012 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Name >> Fuel Injector 4 (LHU)

Fuel Injector 4 (LHU)




Component Connector End Views

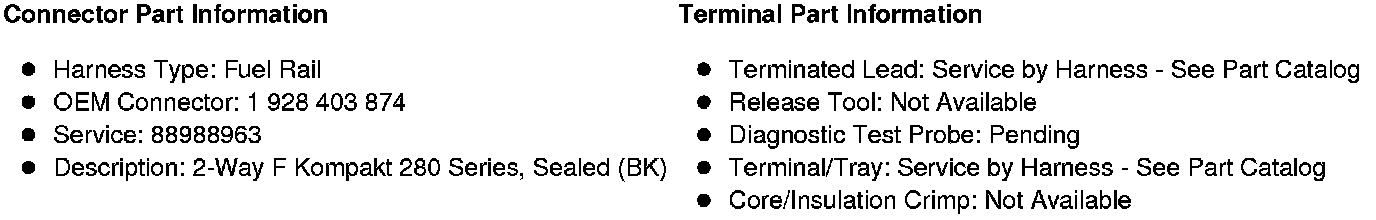

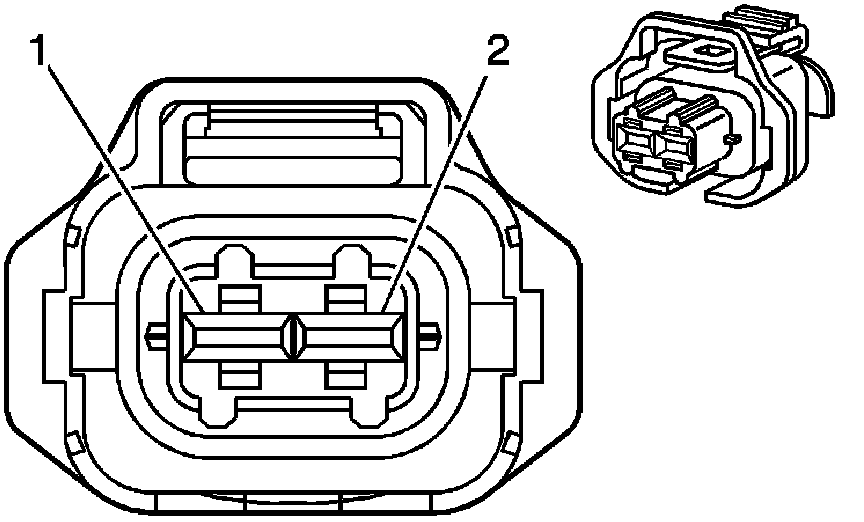

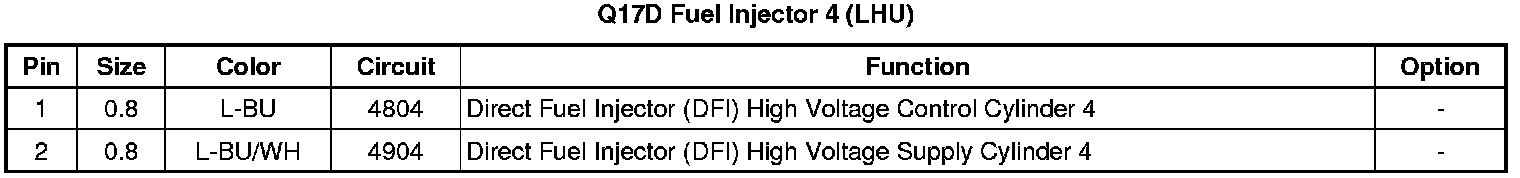

Q17D Fuel Injector 4 (LHU)
