Control Solenoid Valve Assembly X1 (MH8, MHH or MHK)
Control Solenoid Valve Assembly X1 (MH8, MHH or MHK)

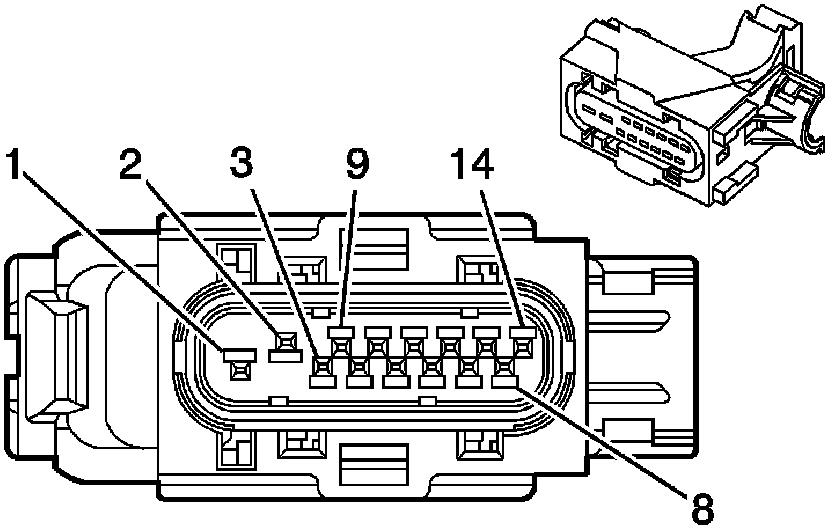

Component Connector End Views

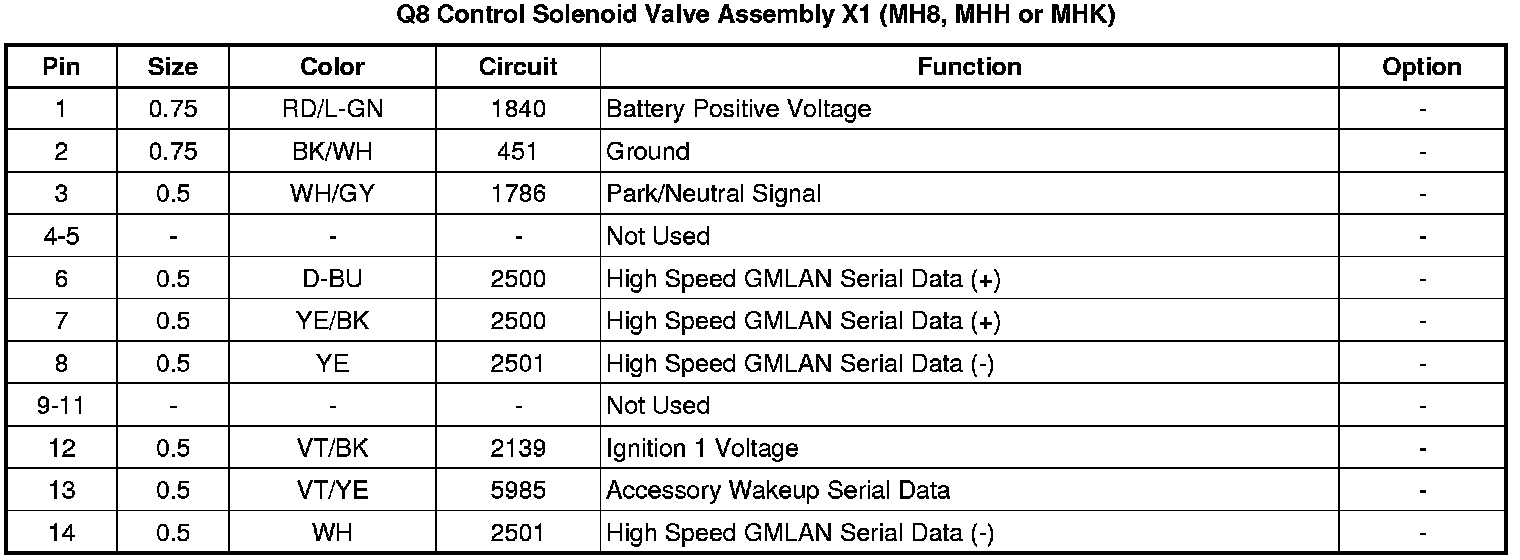

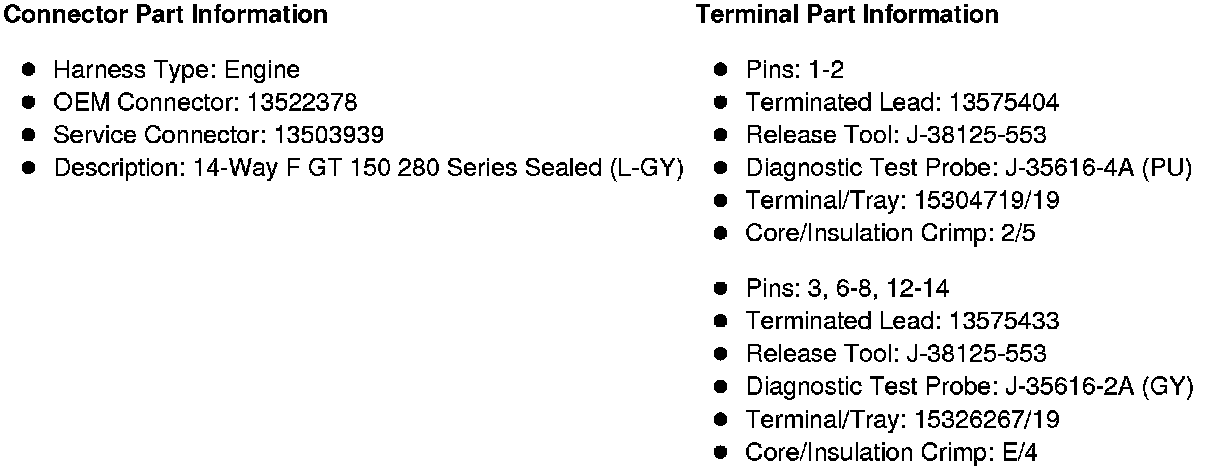

Q8 Control Solenoid Valve Assembly X1 (MH8, MHH or MHK)
