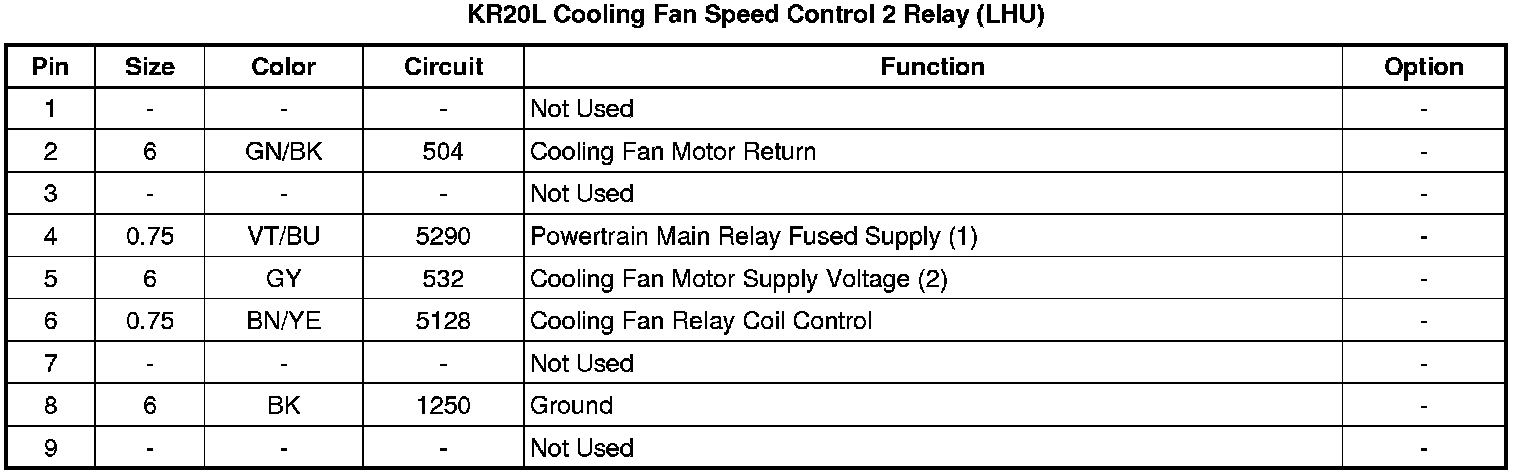

KR20L Cooling Fan Speed Control 2 Relay (LHU)
KR20L Cooling Fan Speed Control 2 Relay (LHU)

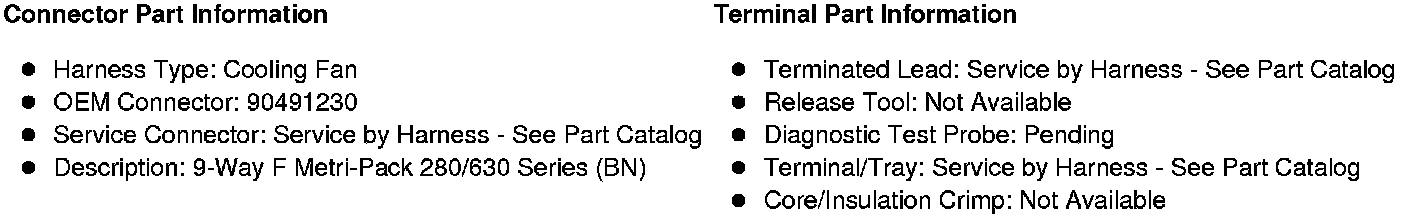

Electrical Center Identification Views
KR20L Cooling Fan Speed Control 2 Relay (LHU)
