Fuel Pressure Sensor/Switch: Diagrams




Component Connector End Views

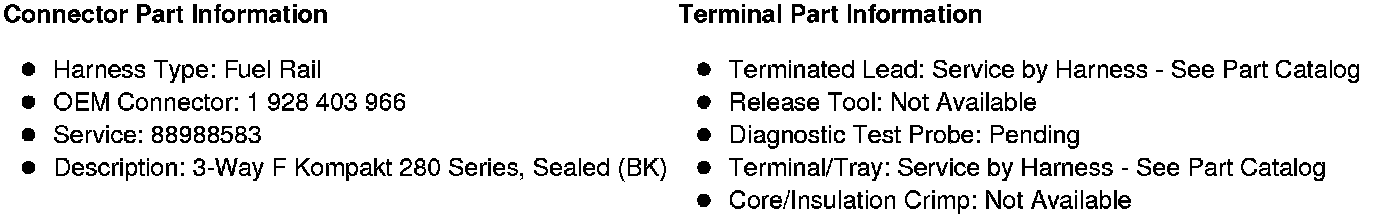

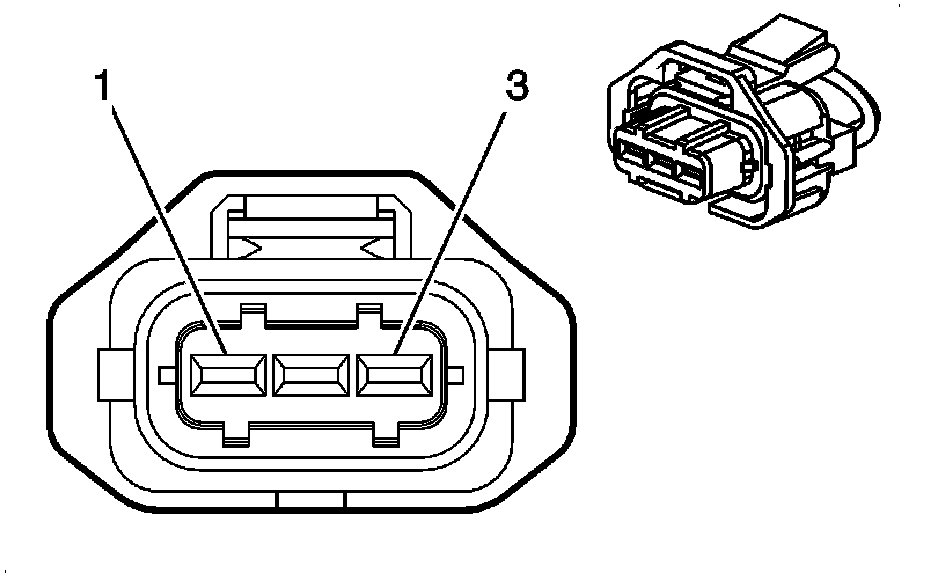

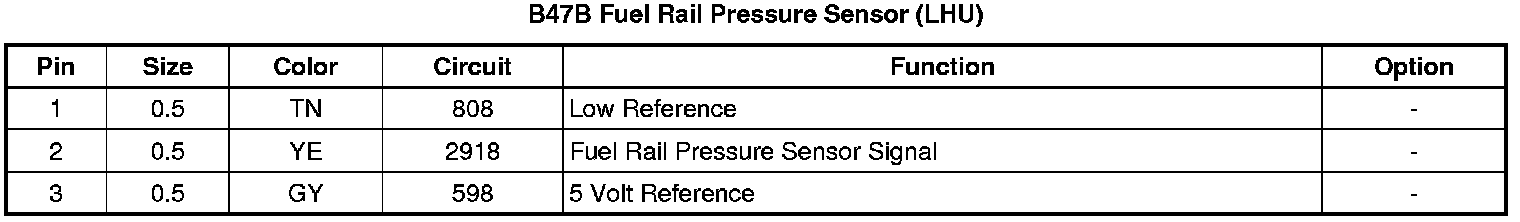

B47B Fuel Rail Pressure Sensor (LHU)
