Parking Assist On/Off Switch (UD5 or UD7)
Parking Assist On/Off Switch (UD5 or UD7)

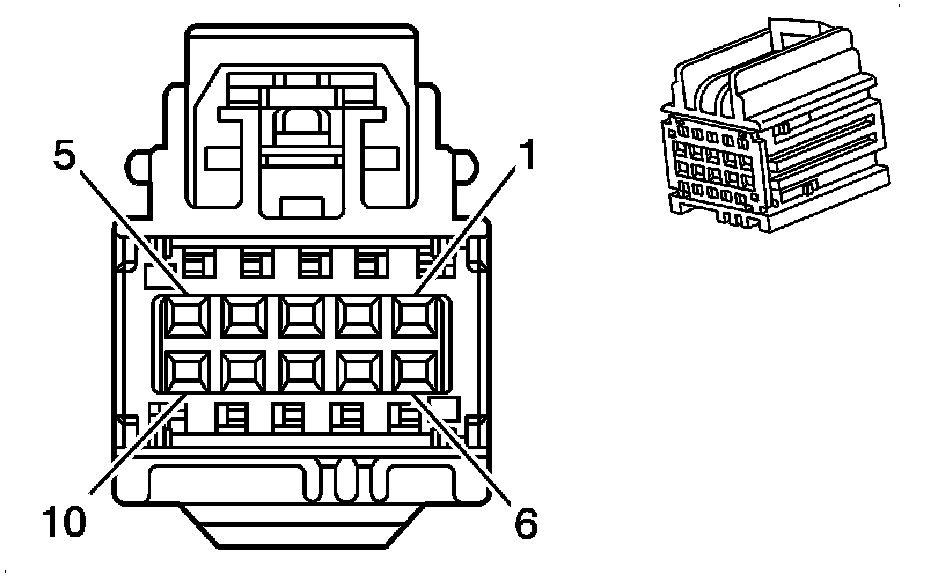

Component Connector End Views

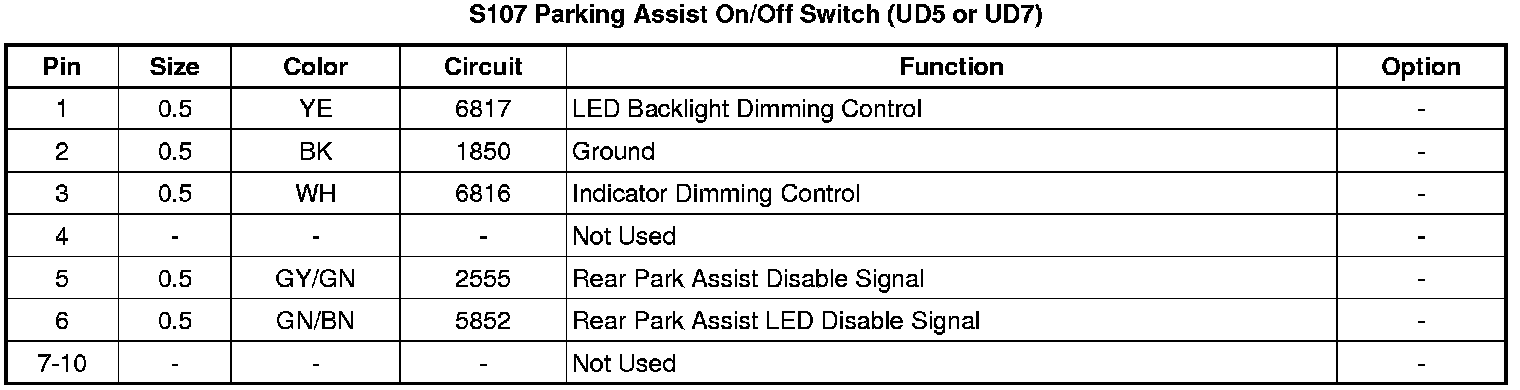

S107 Parking Assist On/Off Switch (UD5 or UD7)
