Camshaft Position Sensor- Exhaust

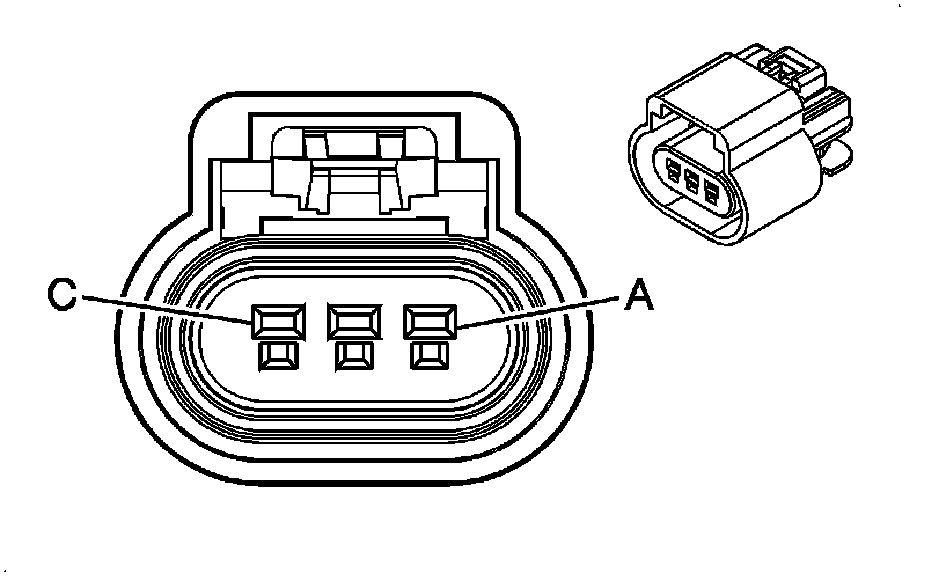

Component Connector End Views

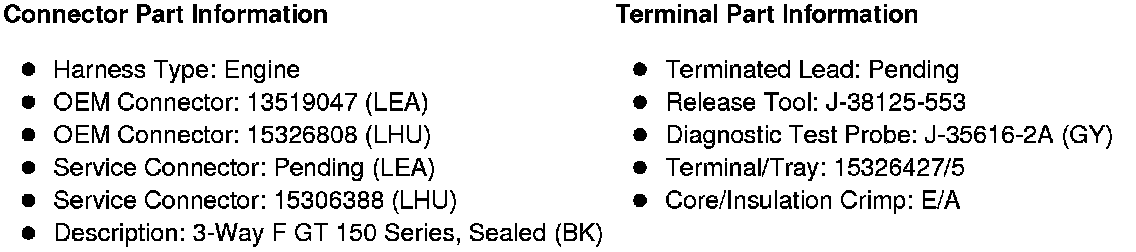

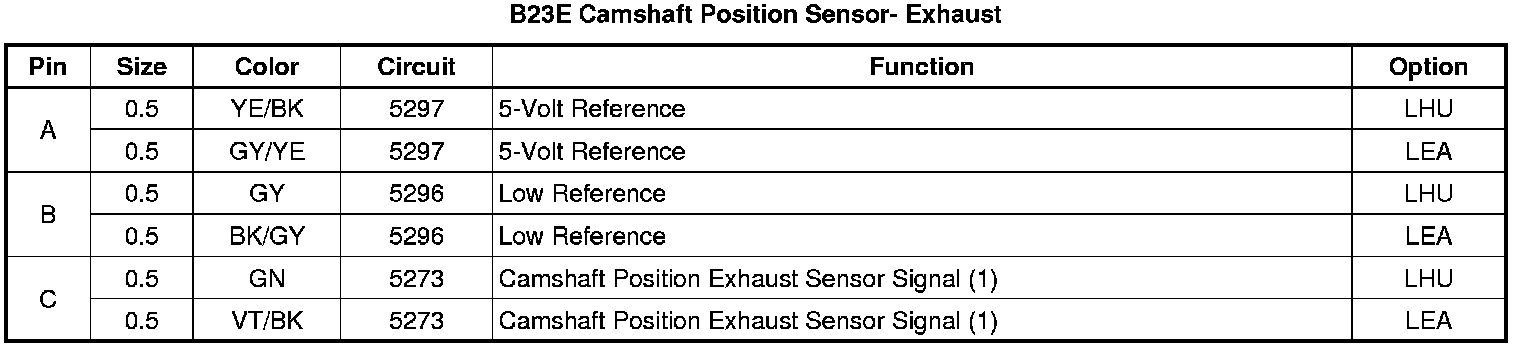

B23E Camshaft Position Sensor- Exhaust
