X415
>>
UD5 or UD7 Without HP6
UD5 or UD7 Without HP6
Inline Harness Connector End Views

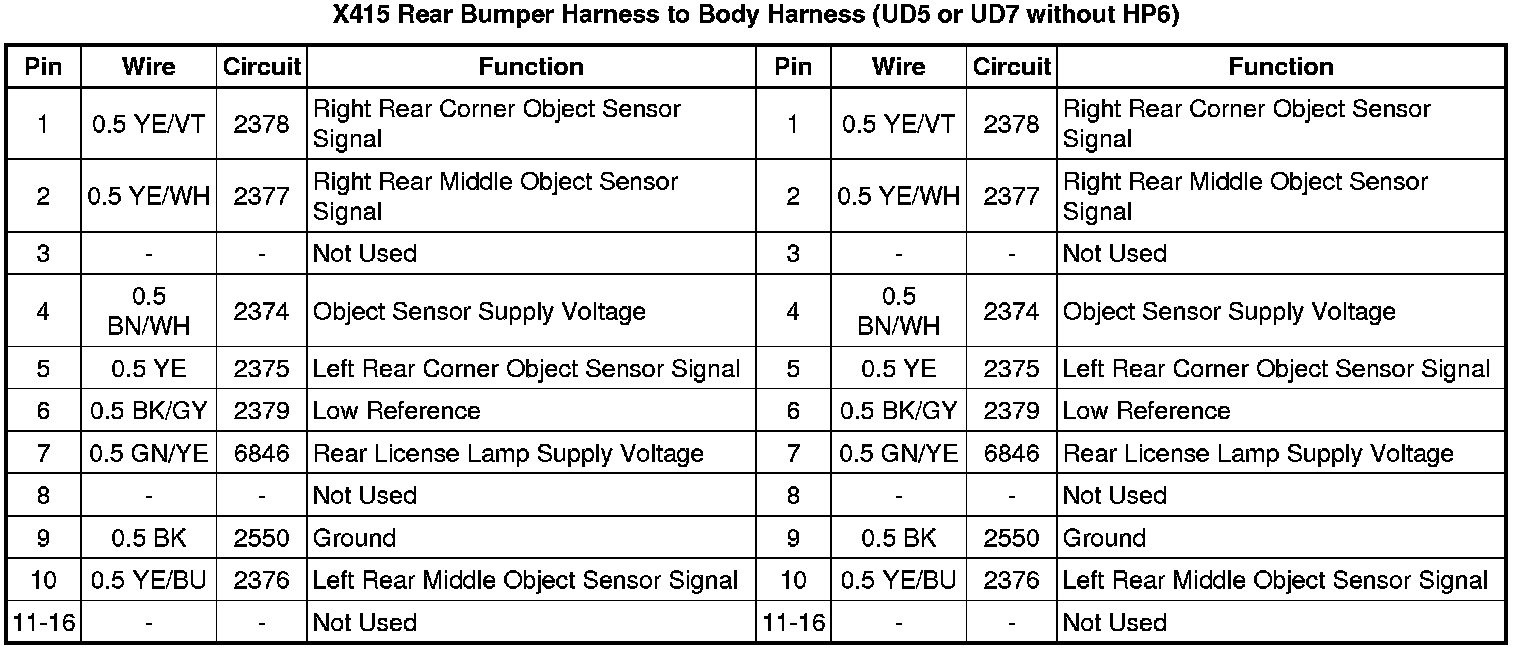

X415 Rear Bumper Harness to Body Harness (UD5 or UD7 without HP6)
