Home >> Buick >> 2012 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G404

G404




Ground Distribution Schematics

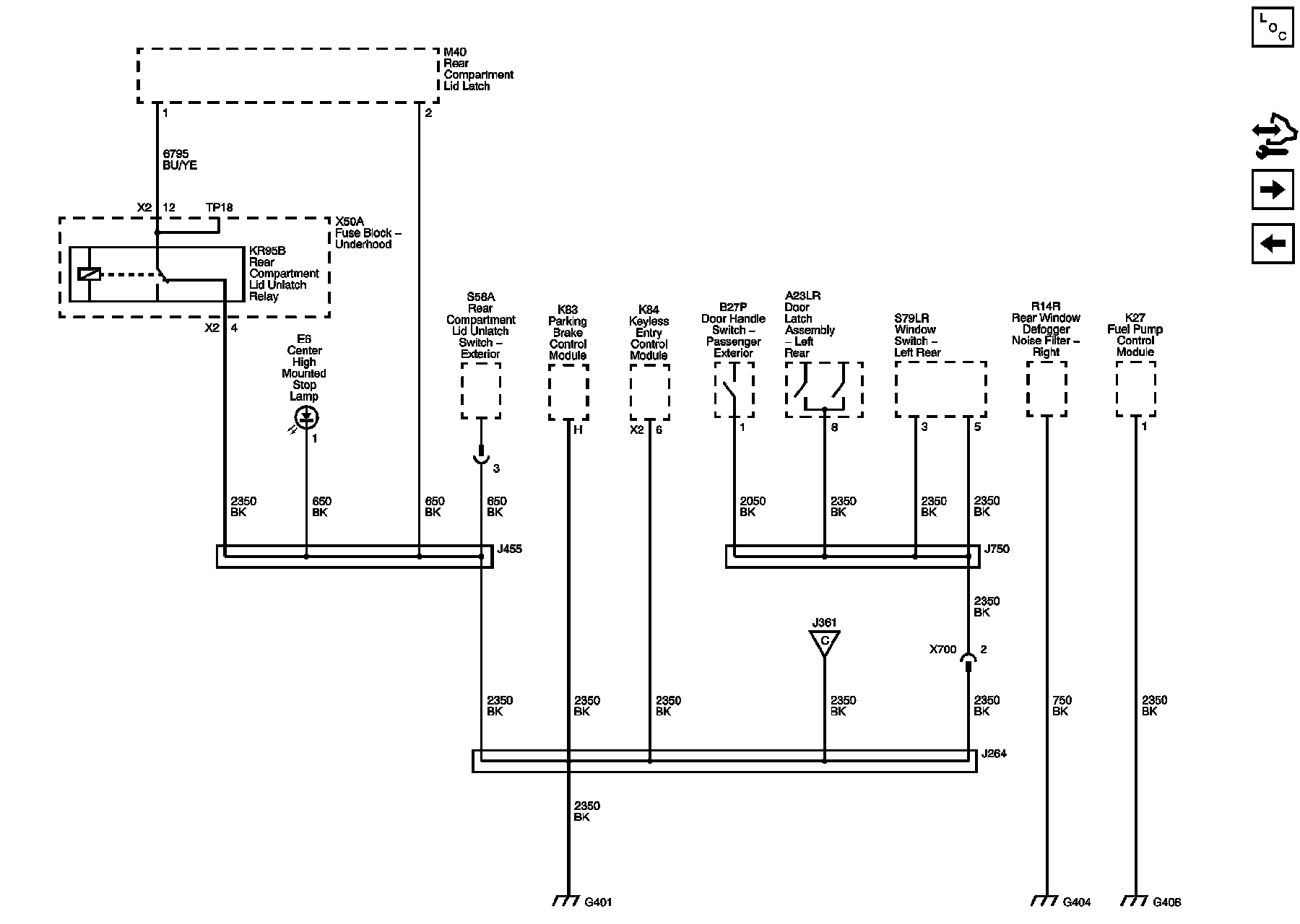

G401 (2 of 2) and G404
