Headlights/Daytime Running Lights (DRL) Schematics
Headlights/Daytime Running Lights (DRL) Schematics
Headlights/Daytime Running Lights (DRL) Schematics

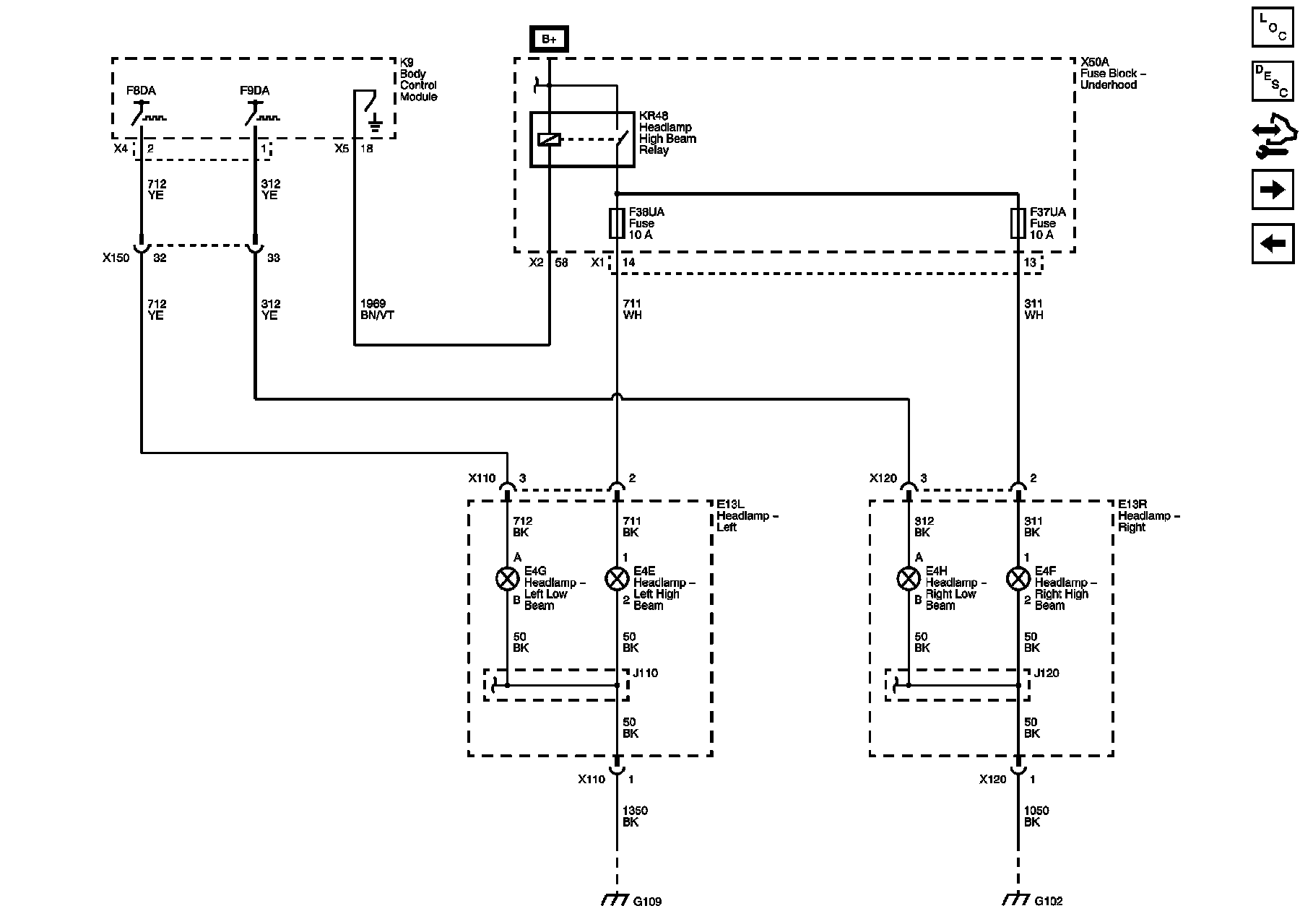

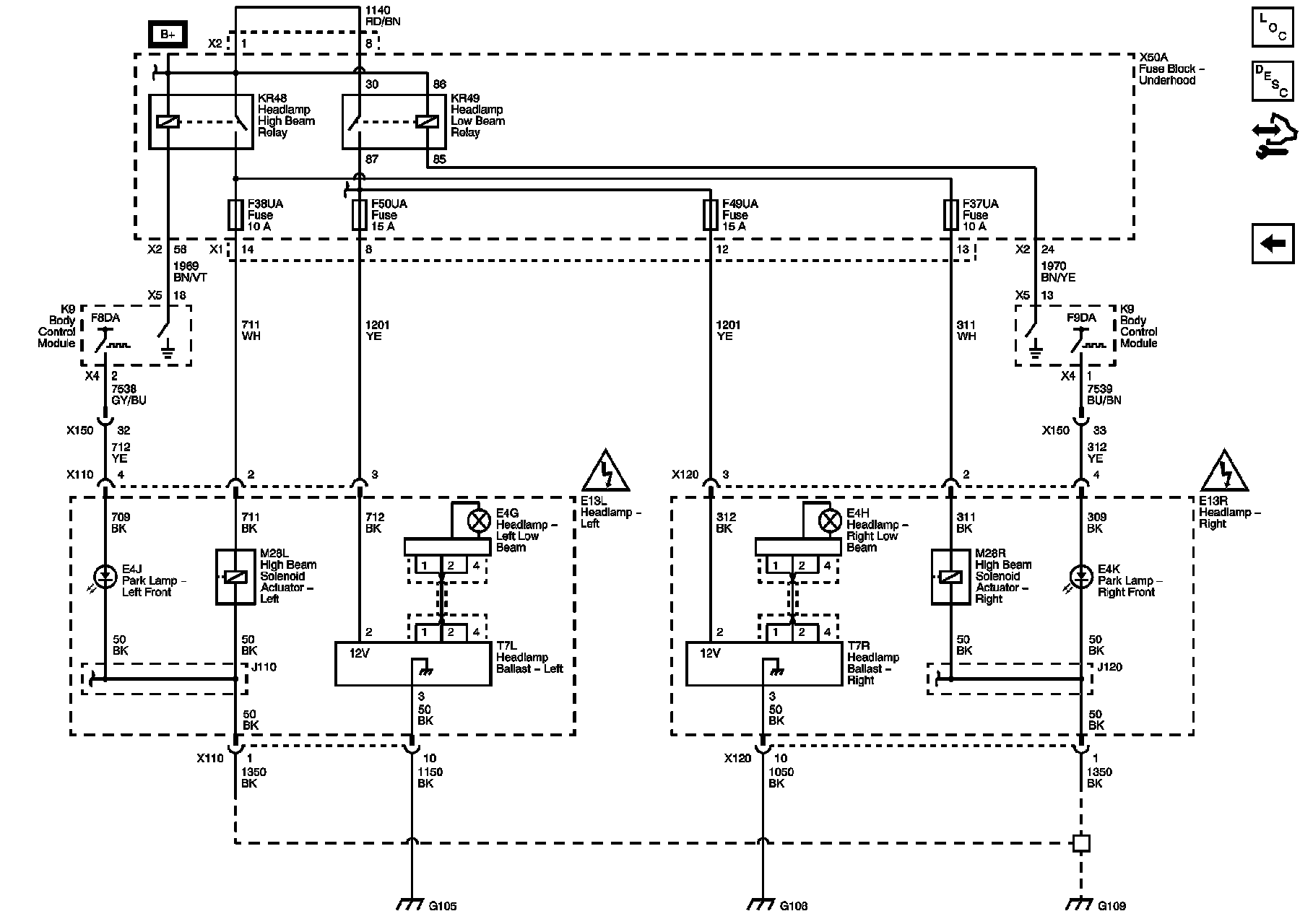

Headlamp

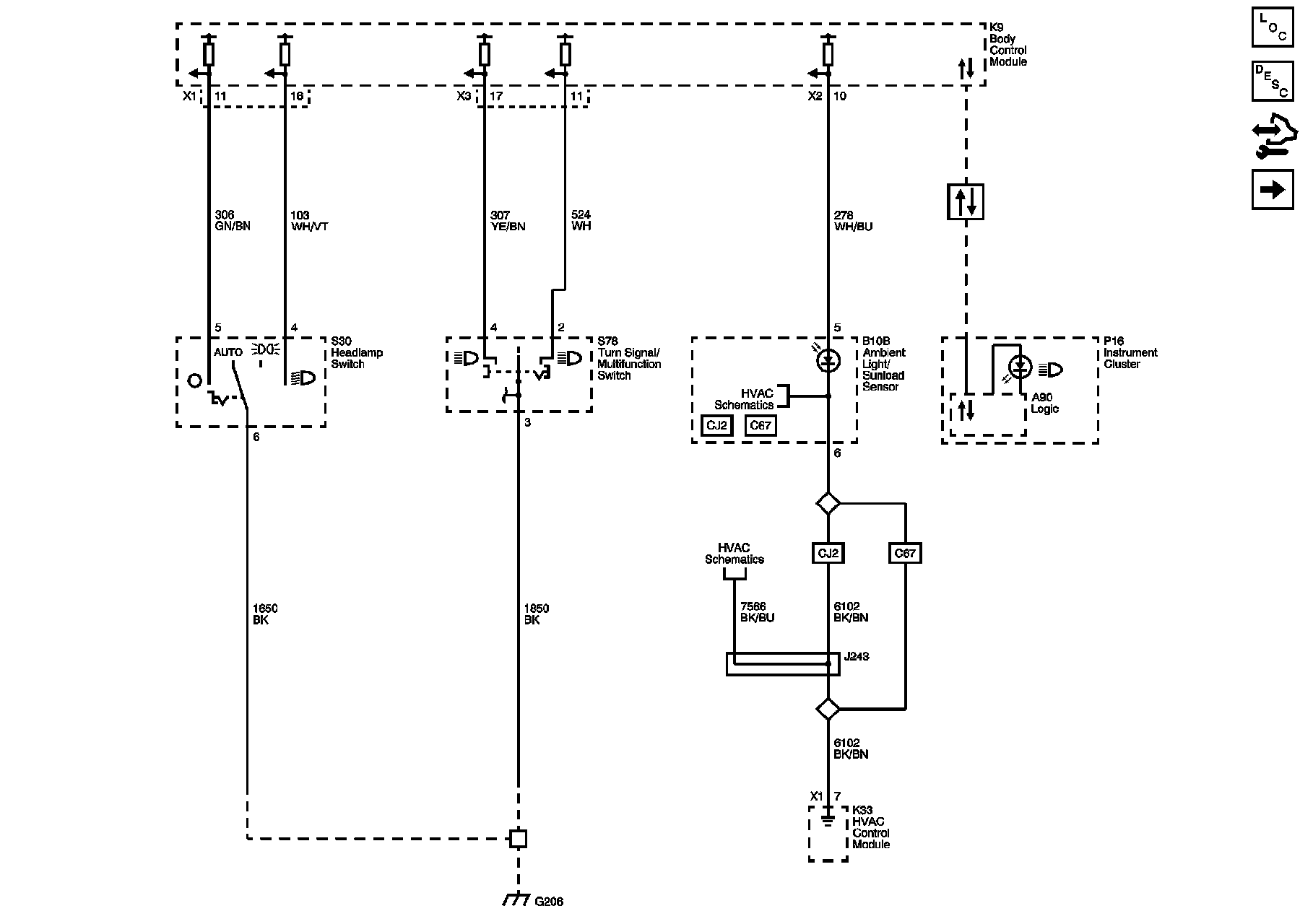

Controls
Lamps (T4A)
Lamps (T4F)
