Buick
>>
2012
>>
Regal L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Connectors By Number
>>
X100 - X199
>>
X115
>>

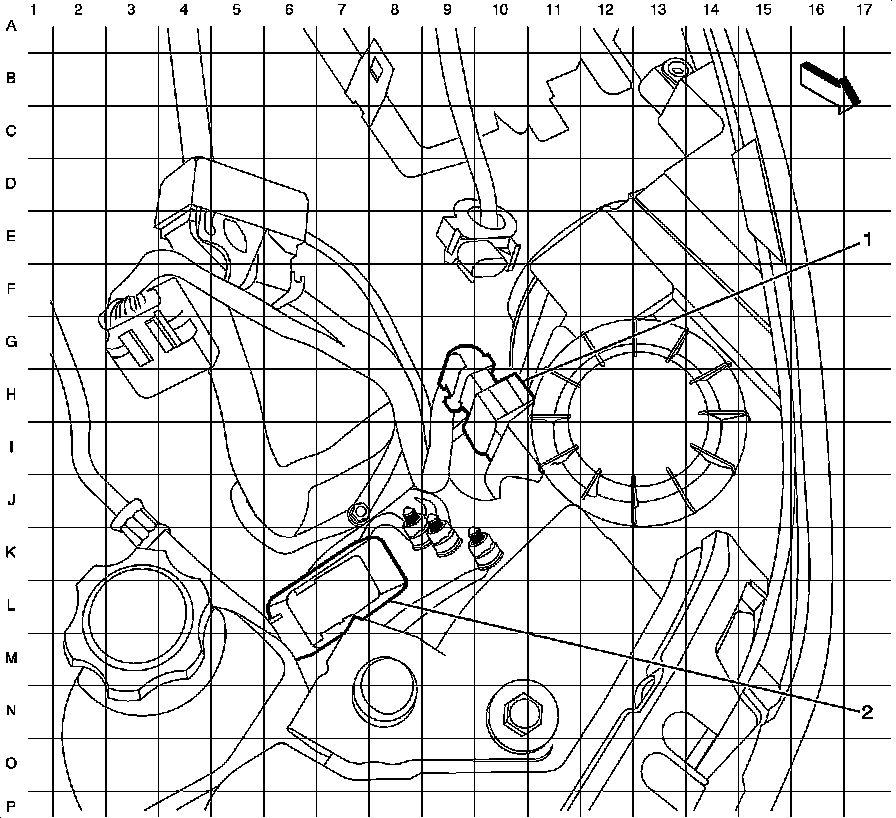

Body Harness Routing- Left Front of Vehicle
Body Harness Routing- Left Front of Vehicle
Harness Routing Views
Body Harness Routing- Left Front of Vehicle
1
- X110
2
- X115
