Shock Absorber Actuator - Right Rear (F45)

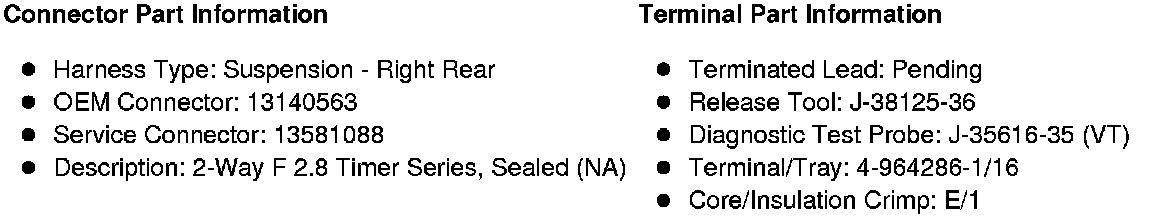

Component Connector End Views

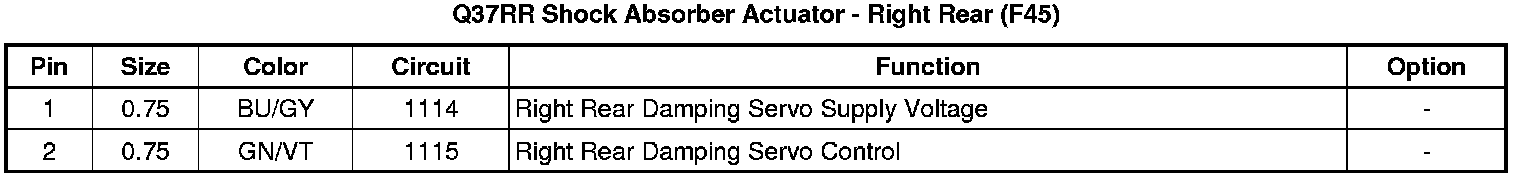

Q37RR Shock Absorber Actuator - Right Rear (F45)
