Shock Absorber Actuator - Left Rear (F45)

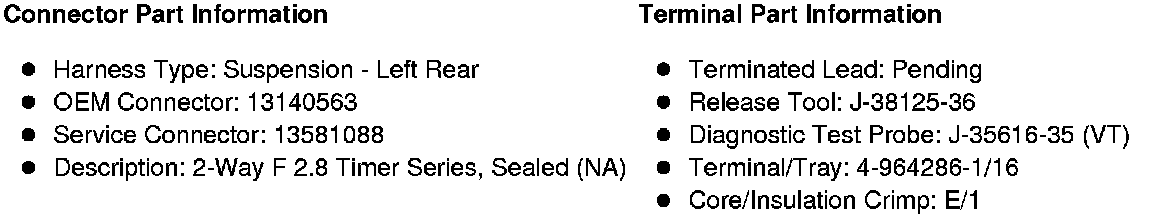

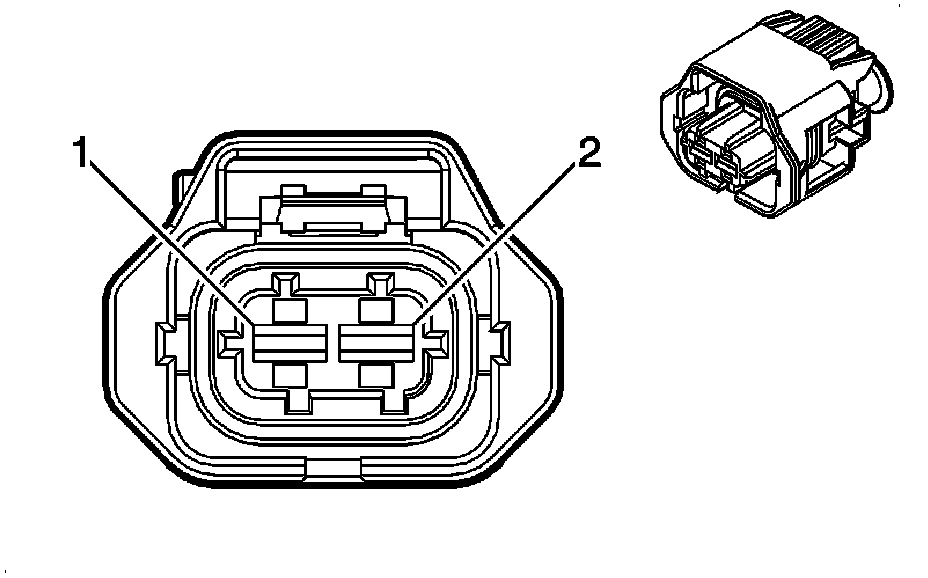

Component Connector End Views

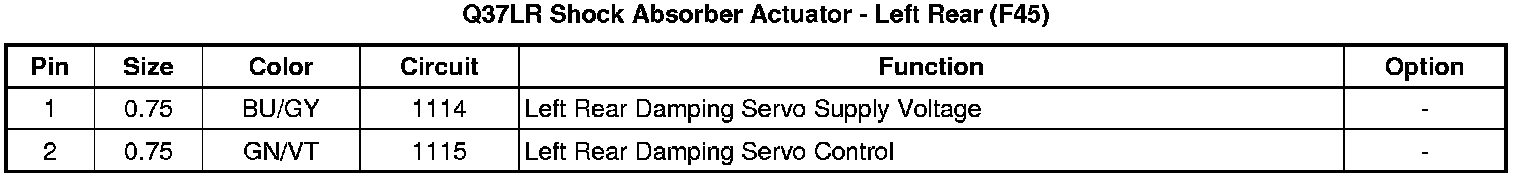

Q37LR Shock Absorber Actuator - Left Rear (F45)
