Vertical Body Acceleration Sensor - Left Front (F45)

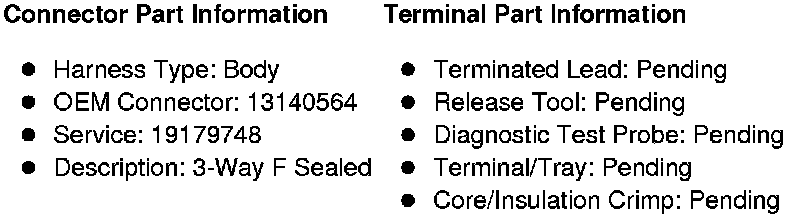

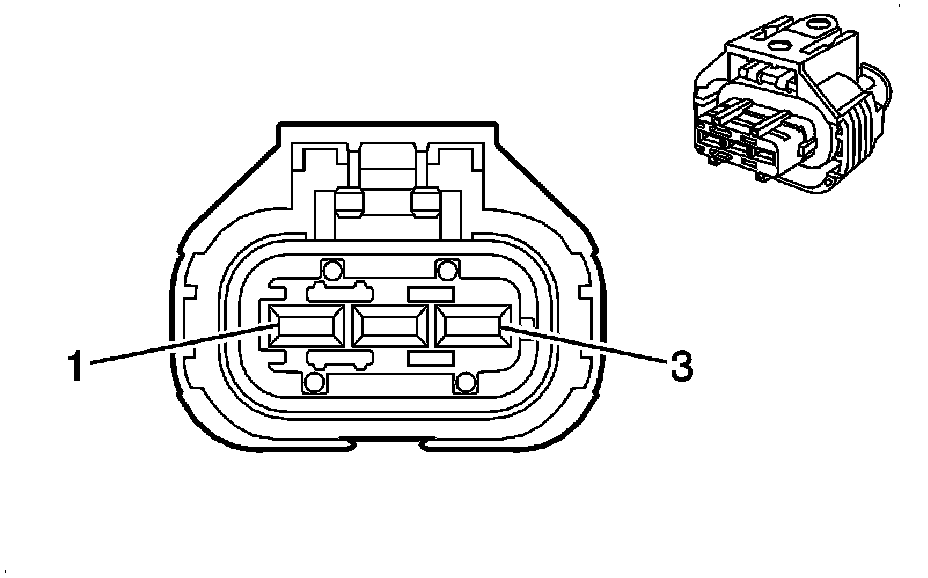

Component Connector End Views

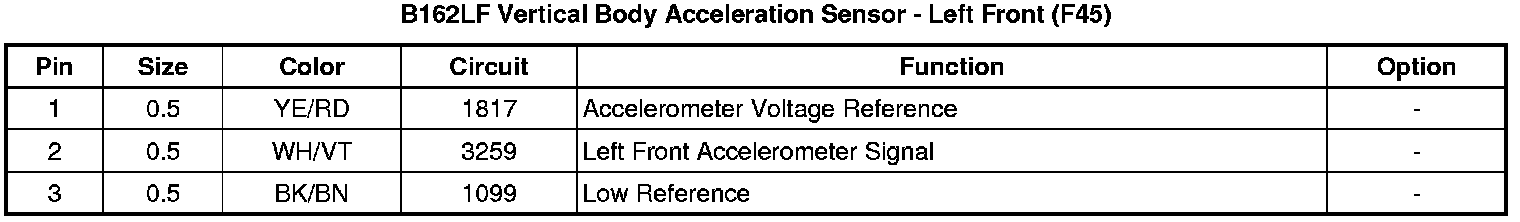

B162LF Vertical Body Acceleration Sensor - Left Front (F45)
