Telematics Communication Interface Control Module Battery

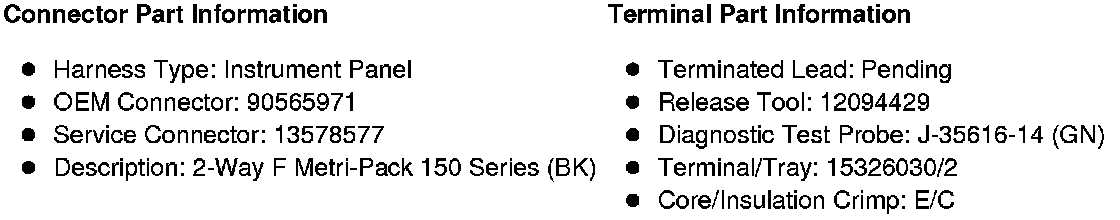

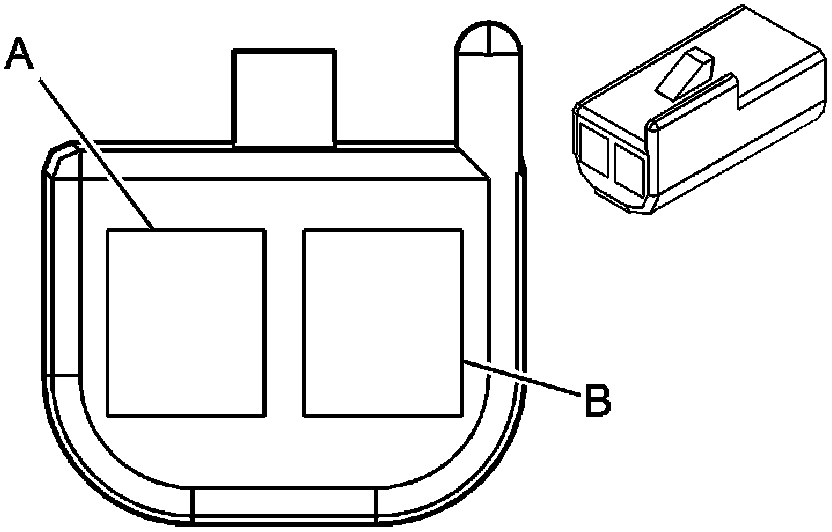

Component Connector End Views

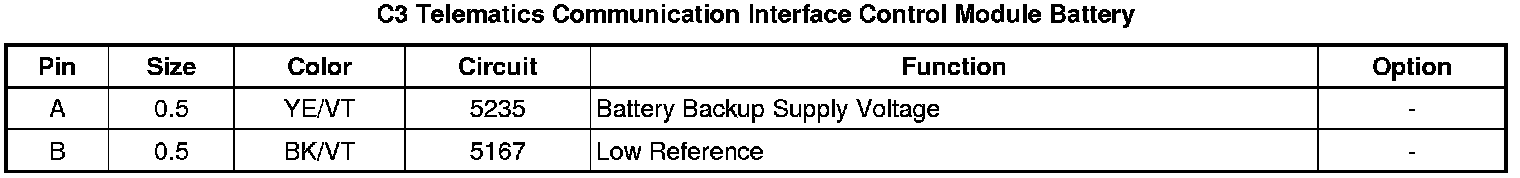

C3 Telematics Communication Interface Control Module Battery
